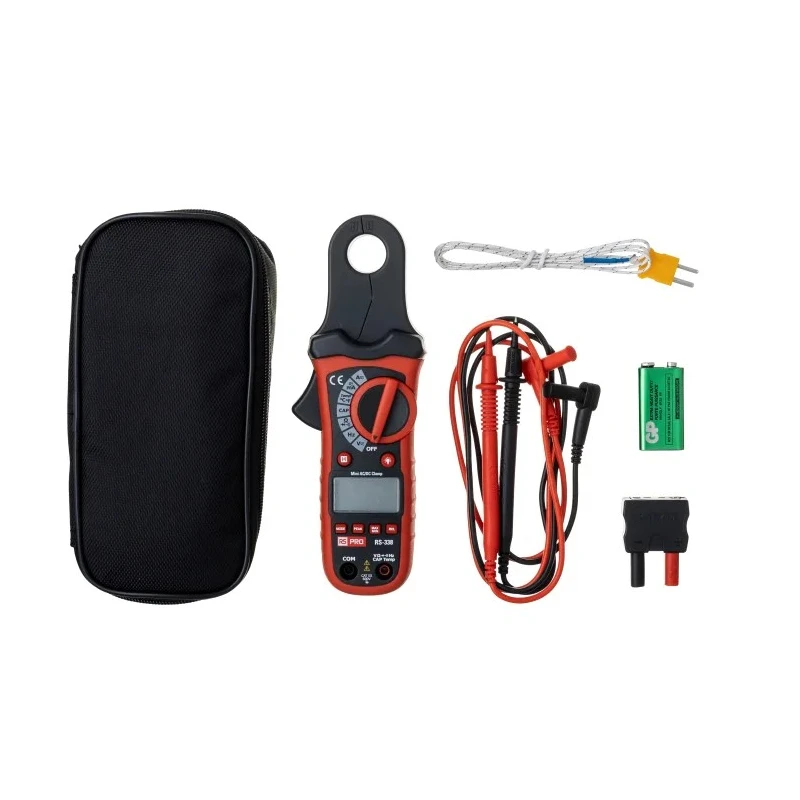

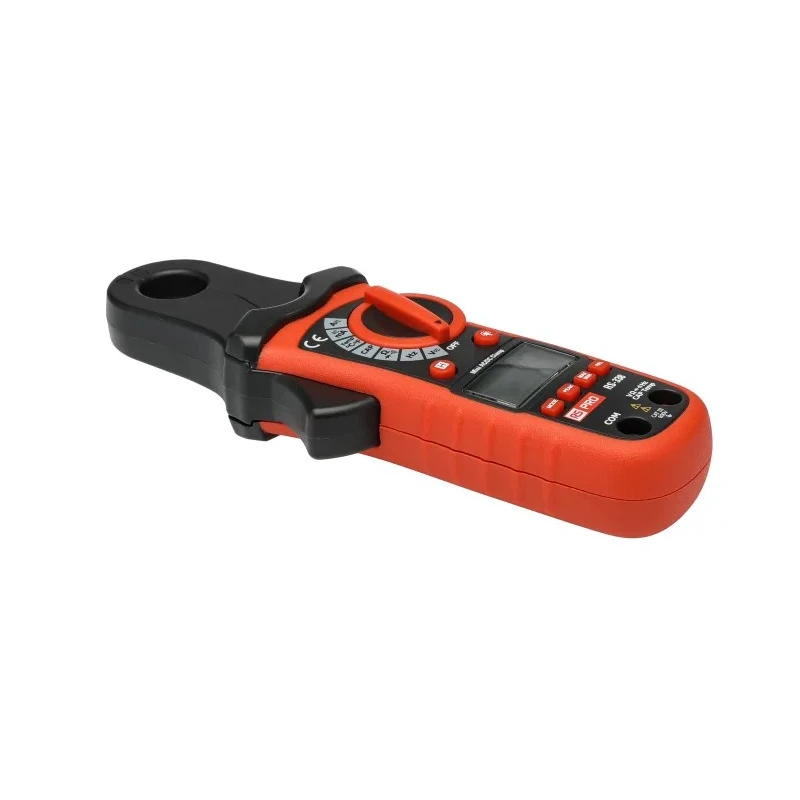

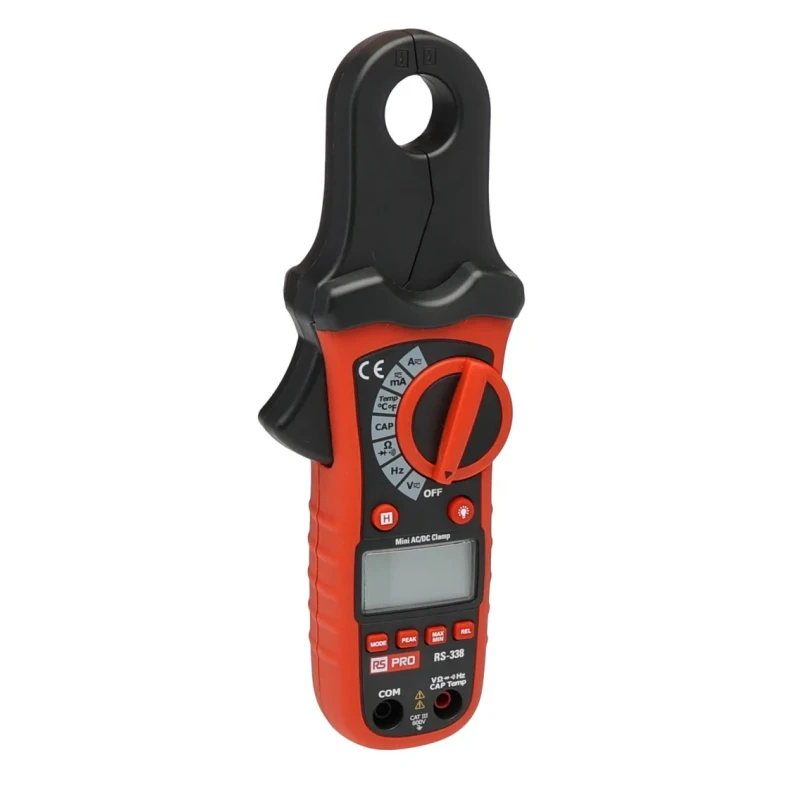

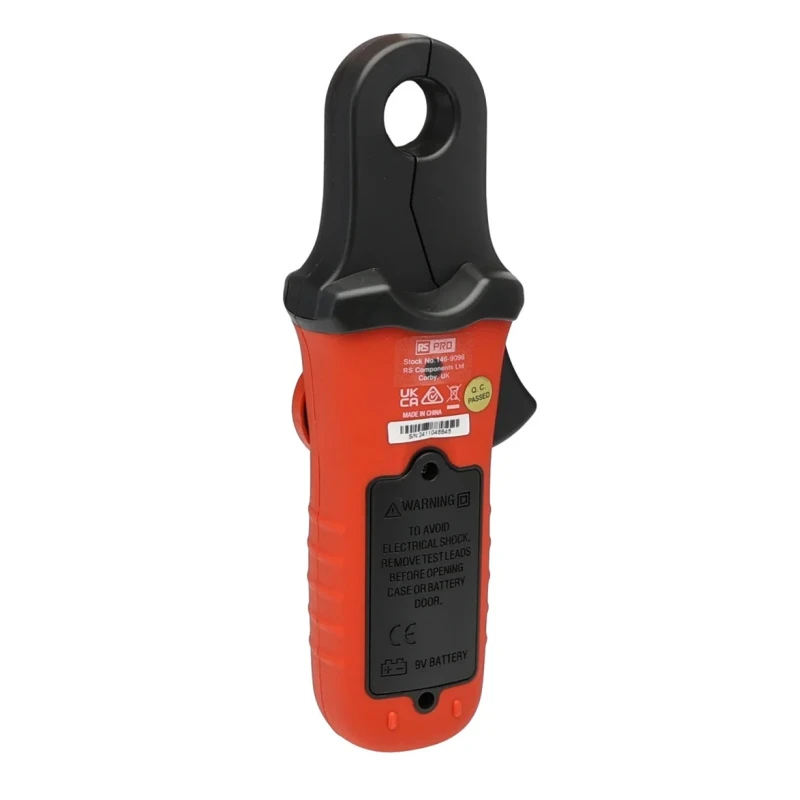

RS PRO Mini AC/DC Clamp Meter, 80 A Max Current, 600 V AC/DC Voltage, CAT III 600V DT-338

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Mini AC/DC Clamp Meter, 80 A Max Current, 600 V AC/DC Voltage, CAT III 600V DT-338

Name: RS PRO Mini AC/DC Clamp Meter, 80 A Max Current, 600 V AC/DC Voltage, CAT III 600V DT-338
Brand: RS PRO
SKU: 331800
Price: 155.13 USD
Availability: InStock



Category Clamp Meter Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	Backlight
Brand	RS PRO
Temperature Resolution	0.1°C
Height	210mm
Length	70mm
Model	DT-338
Gross Weight	200g
Width	37mm
Maximum Operating Temperature	40°C
AC Voltage Resolution	100V ac
Minimum Operating Temperature	5°C
DC Current Accuracy	±2.5 %
DC Voltage Resolution	100 V dc
Resistance Measurement Accuracy	±1.5 %
Temperature Measurement Accuracy	±2°C
Resistance Resolution	100mΩ
AC Current Resolution	1mA
Maximum Jaw Opening	19mm
Maximum Temperature Measurement	760°C
Functions Measured	AC Voltage, AC Current, DC Current, Frequency, Duty Cycle, Continuity, Temperature, Capacitance, DC Voltage, Resistance, Diode
Maximum Resistance Measurement	40mΩ
Maximum DC Voltage Measurement	600V dc
Maximum DC Current Measurement	80A
Maximum AC Voltage Measurement	600V ac
Safety Category Level	CAT III
Safety Category Voltage	600V
Clamp Meter Type	DC Clamp Meter, Mini AC
PeakTech PeakTech P4350 Clamp Meter, 80 A dc 80 A ac 600 V dc 600 V acBrand	PeakTech

Key Features

Compact and lightweight design with 19 mm jaw opening for easy handheld operation.
True RMS capability ensuring accurate AC measurements in complex signal environments.
Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, duty cycle, continuity, and diode testing.
Large backlit LCD display enhances readability in low-light conditions.
Safety rated to CAT III 600 V for reliable operation in industrial environments.
Includes auto power off and data hold features to conserve battery and capture readings.

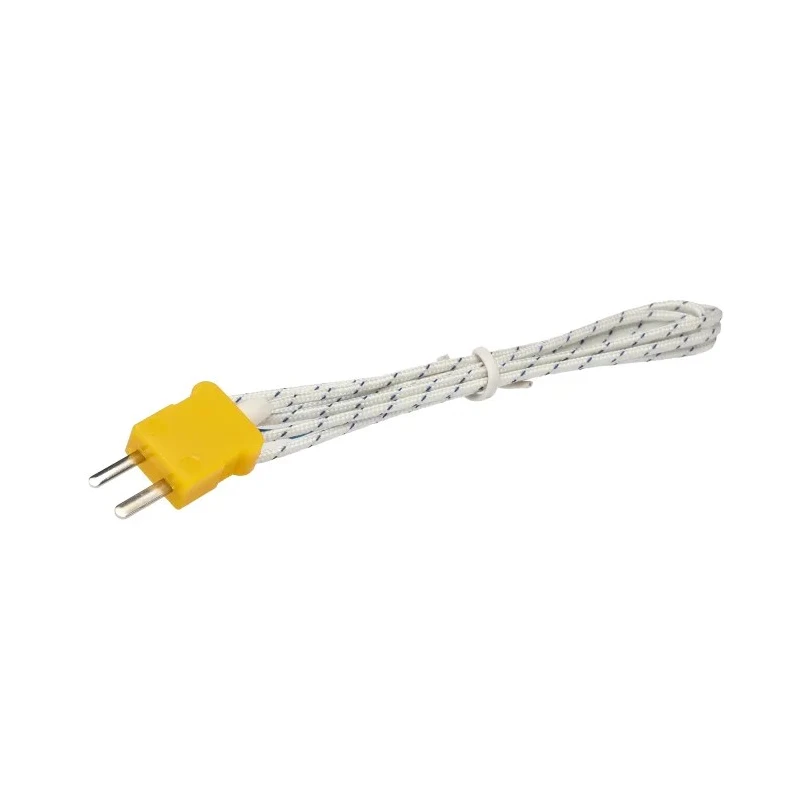

Temperature measurement range up to 760°C with 0.1°C resolution.
Operates within temperature range of 5°C to 40°C, suitable for indoor industrial and maintenance tasks.

Product Description

RS PRO presents the DT-338 Mini AC/DC Clamp Meter, engineered for precise electrical measurement across a broad spectrum of parameters including current, voltage, resistance, and temperature. This device offers maximum DC and AC current readings of 80 A, and voltage measurements up to 600 V DC and AC respectively, meeting the high safety standards of CAT III 600 V. The compact jaw opening of 19 mm and lightweight body of 200 g enable comfortable handheld use in constrained spaces.

The meter features True RMS technology, ensuring accuracy in non-linear load measurements, essential for industrial troubleshooting and HVAC system diagnostics. The backlit LCD display ensures readings remain clear even under poor lighting conditions, while auto power off and data hold functions improve operational convenience and battery longevity.

Additional functionalities encompass frequency, duty cycle, diode, and capacitance measurements, supplemented by temperature sensing capability up to 760°C with fine resolution, broadening its application suitability in electrical, industrial maintenance, HVAC, and laboratory settings.

Designed for robust industrial use, it operates reliably within 5°C to 40°C ambient temperatures and features an intuitive user interface for ease of operation. The RS PRO DT-338 accommodates diverse industrial and commercial electrical measurement needs efficiently.

Compact and lightweight design with 19 mm jaw opening for easy handheld operation. True RMS technology for accurate measurements in complex electrical environments. Multi-function measurements including AC/DC current and voltage, resistance, capacitance, frequency, temperature, and continuity.

Large backlit LCD for enhanced visibility. Safety category CAT III 600 V certified for industrial applications. Auto power off and data hold functions for battery efficiency and user convenience. Temperature measurement capability with 0.1°C resolution and range up to 760°C.

Ergonomically designed for industrial maintenance, electrical technicians, HVAC, and laboratory use. Explore more high-quality measuring and testing instruments in EnvMart’s Clamp Meter category.
