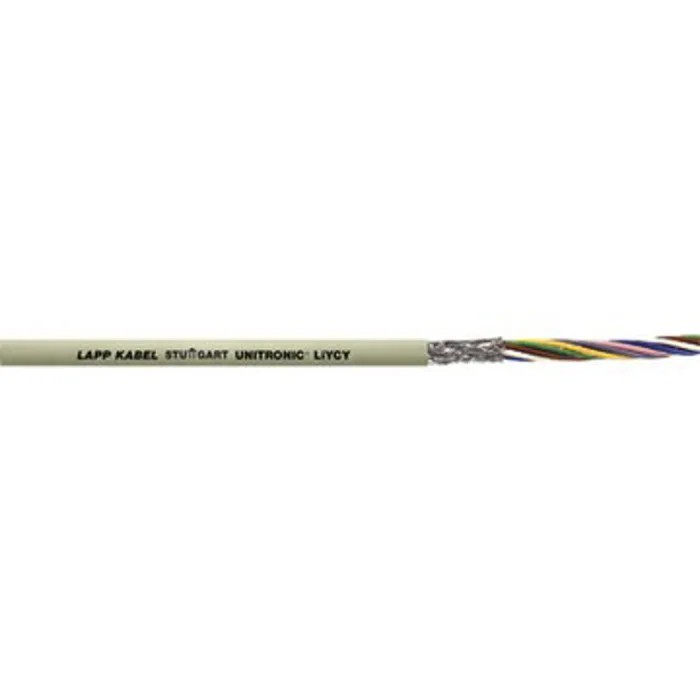

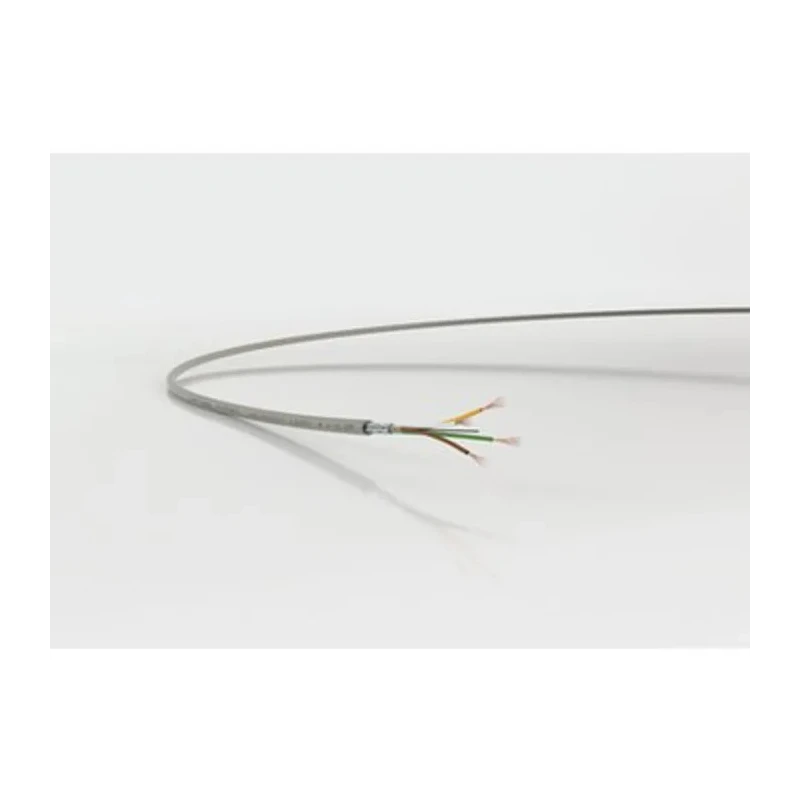

RS PRO UNITRONIC LiYCY Series Data Cable 3 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride 0034303
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | 0034303 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 4.1mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 18 |
| Core Strands | 18 x 0.10mm |
| Size of Strands | 0.10mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- The cable is flame retardant according to IEC 60332-1-2 and EN 60332-1-2 standards.
- It features a polyvinyl chloride (PVC) base core insulation and a screened shield braid of tinned wires.
- Operates within a temperature range of -40°C to +80°C for fixed installations.
- The 3 cores are stranded with 18 strands of 0.10 mm copper wires each for flexibility.
- Designed for industrial applications requiring low electrical interference and space-saving installations.
- Suitable for use in computer, control, communication and process control systems.
- Complies with CE and RoHS directives and VDE 0472 part 804 test type B flame retardant requirements.
Product Description
Lapp 0034303 UNITRONIC LiYCY series Data Cable is a screened multi-core cable featuring 3 stranded cores with a cross-sectional area of 0.14 mm² each and a grey polyvinyl chloride sheath designed for reliable data transmission in industrial and automation environments.
The cable's construction includes PVC base insulation and a shield braid of tinned wires to minimize electromagnetic interference, making it ideal for low frequency applications such as RS 232 communication, process control, and signal broadcast systems.
With an operating voltage of 250 V and compliance with CE and RoHS standards, it ensures safety and performance. The flame-retardant properties per IEC 60332-1-2 make it suitable for installations requiring enhanced fire safety.
The cable performs optimally across a wide temperature range from -40°C to +80°C in fixed installations, supporting stable operation in dry or damp environments. Its compact 4.1 mm outside diameter supports space-saving fixed installations.
Typical applications include computers, electronic control devices, communication linkages, and industrial signal transmission. Usage with compatible shielded cable glands improves electromagnetic compatibility and connection reliability.
The cable is flame retardant according to IEC 60332-1-2 and EN 60332-1-2 standards. It features a polyvinyl chloride (PVC) base core insulation and a screened shield braid of tinned wires. Operates within a temperature range of -40°C to +80°C for fixed installations.
The 3 cores are stranded with 18 strands of 0.10 mm copper wires each for flexibility. Designed for industrial applications requiring low electrical interference and space-saving installations. Suitable for use in computer, control, communication and process control systems.
Complies with CE and RoHS directives and VDE 0472 part 804 test type B flame retardant requirements.
Lapp UNITRONIC LiYCY Series cables are a preferred choice for industrial wiring needing high standards of signal integrity, flame retardance, and operational durability. Explore more cables and accessories in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is +80°C when used in fixed installations.
Each core in the UNITRONIC LiYCY series has a cross-sectional area of 0.14 mm².
This cable features 3 cores.
The outside diameter of this data cable is 4.1 mm.
The cable uses polyvinyl chloride (PVC) as its base core insulation.
This cable complies with CE and RoHS directives, as well as VDE 0472 part 804 test type B flame retardant requirements.
The voltage rating for this data cable is 250 V.
The minimum operating temperature for this cable is -40°C.
This cable features a screened shield braid made of tinned wires to minimize electromagnetic interference.
The conductor material used in this data cable is bare copper.
This cable is suitable for use in computers, control systems, communication linkages, and process control systems.
Each core of this cable is stranded with 18 strands of 0.10 mm copper wires.
