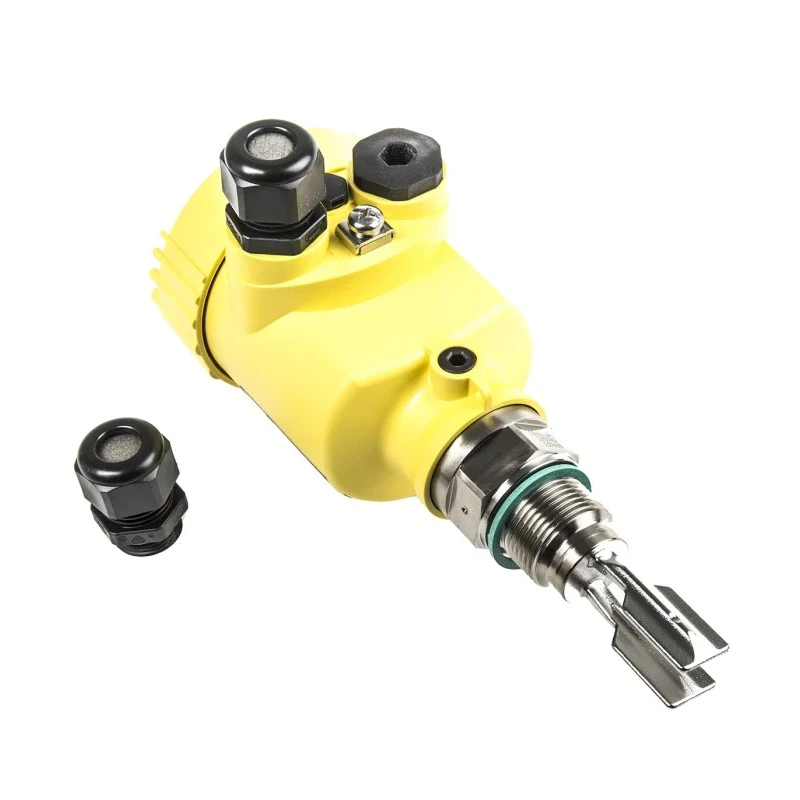

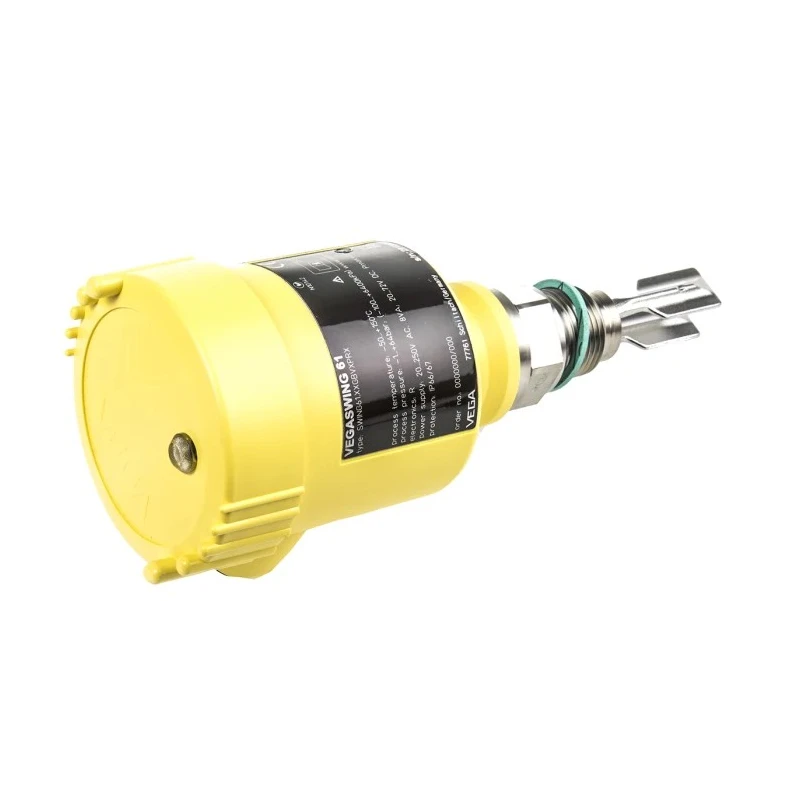

Vega VEGASWING 61 Series Vibrating Rod Level Switch Vertical Horizontal Ex Zone 0 Rated Plastic Housing SWING61XXGBVXPRX

Vega SWING61XXGBVXPRX is a VEGASWING 61 Series Vibrating Rod Level Switch designed for precise liquid level detection in industrial and process applications. It allows vertical or horizontal installation and comes with a durable plastic housing suited for harsh industrial conditions. Certified for use in explosive atmospheres (Ex Zone 0), this device supports operating temperatures from -50°C up to 150°C and pressures up to 64 bar, making it suitable for a wide range of liquids, pastes, and slurries.

The sensor operates independently of liquid density, viscosity, conductivity, dielectric constant, or external vibrations, providing reliable level switching. Its chemical resistant stainless steel rod ensures long service life and robustness. The device features an external LED for switch status indication, a volt-free DPDT relay output, and self-monitoring with selectable fail-safe minimum or maximum thresholds for enhanced safety.

This maintenance-free Level Switch incorporates optimum factory calibration for consistent performance. It is ideal for industrial automation, chemical processing, water treatment, and hazardous environment monitoring where accurate liquid level detection is critical.

With certifications including WHG and ATEX 1/2G Eex d llC T6, the VEGASWING 61 Series meets stringent safety standards for use in Zone 0 hazardous areas. Cable entry is provided via two M20 x 1.5 fittings for secure and standardized electrical connections.

Suitable for liquid viscosity range of 0.2 to 1000 mPa·s. Operating temperature range from -50°C to 150°C allows diverse applications. Maximum electrical ratings: 250V AC, 72V DC, and 3A current. Robust chemical-resistant stainless steel rod with plastic housing.

Certified for explosive atmospheres Zone 0 with WHG and ATEX approvals. Volt-free DPDT relay output enables flexible control integration. External LED status display facilitates easy operation monitoring. Maintenance-free design with factory calibration and self-monitoring features.

Designed for liquids, pastes, and slurries in industrial automation and process control. Explore more industrial level sensor solutions at EnvMart for efficient and safe process measurement.
