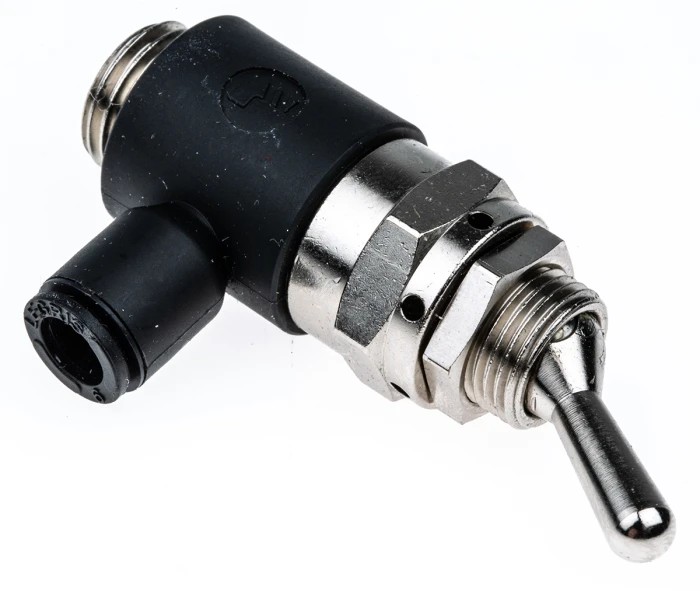

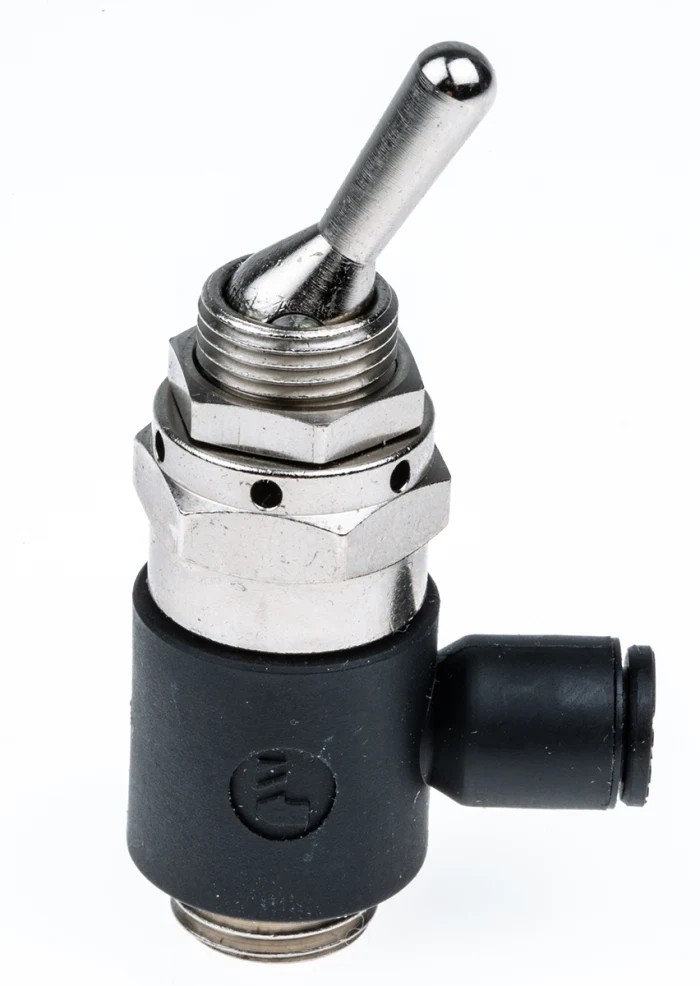

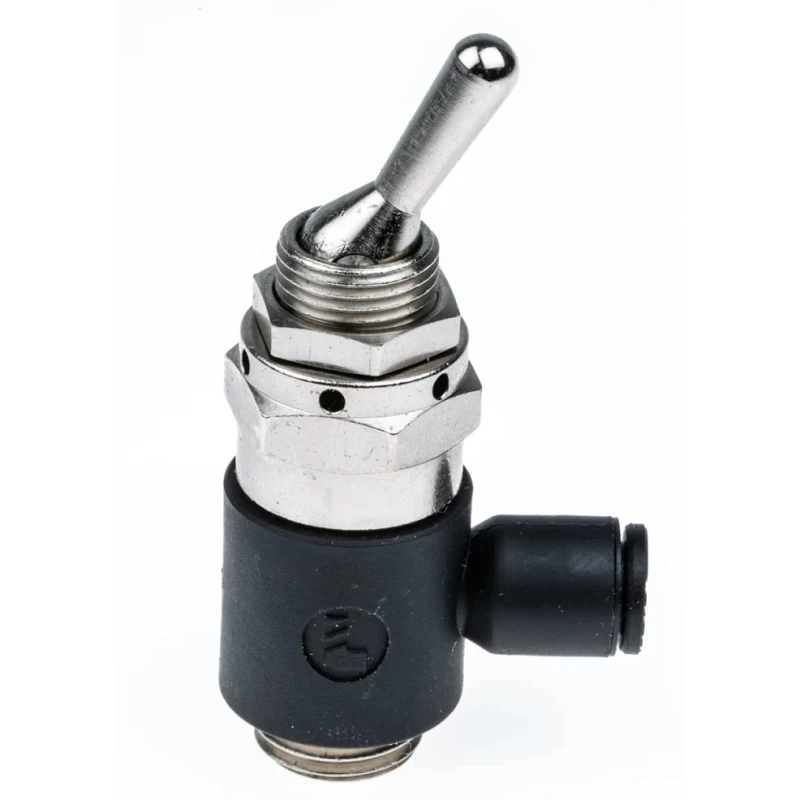

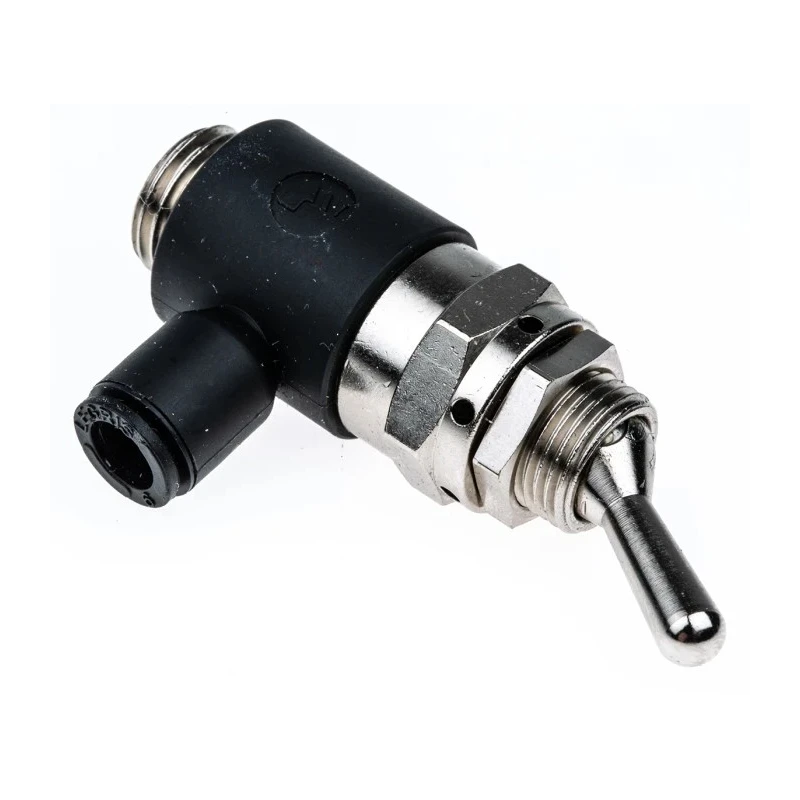

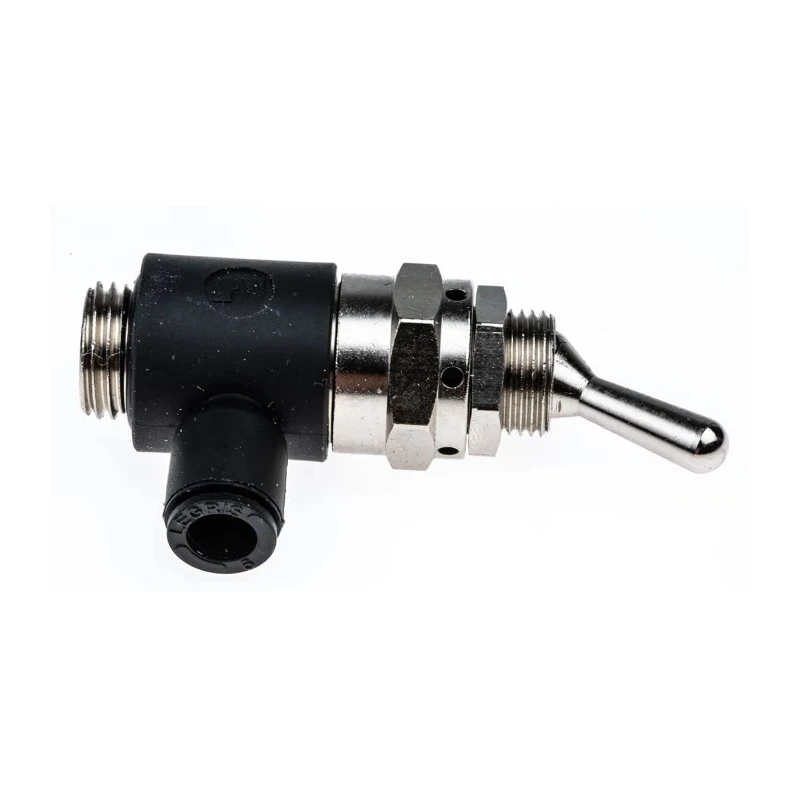

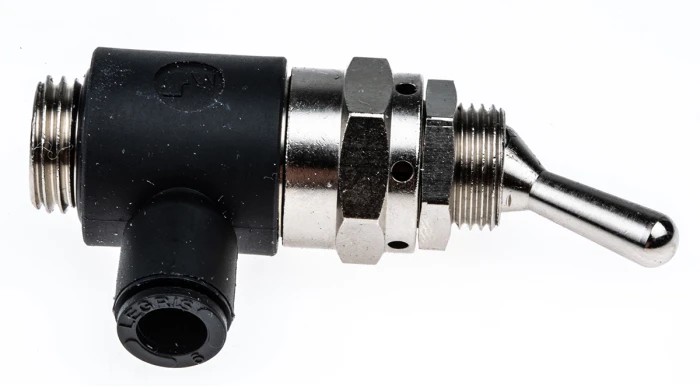

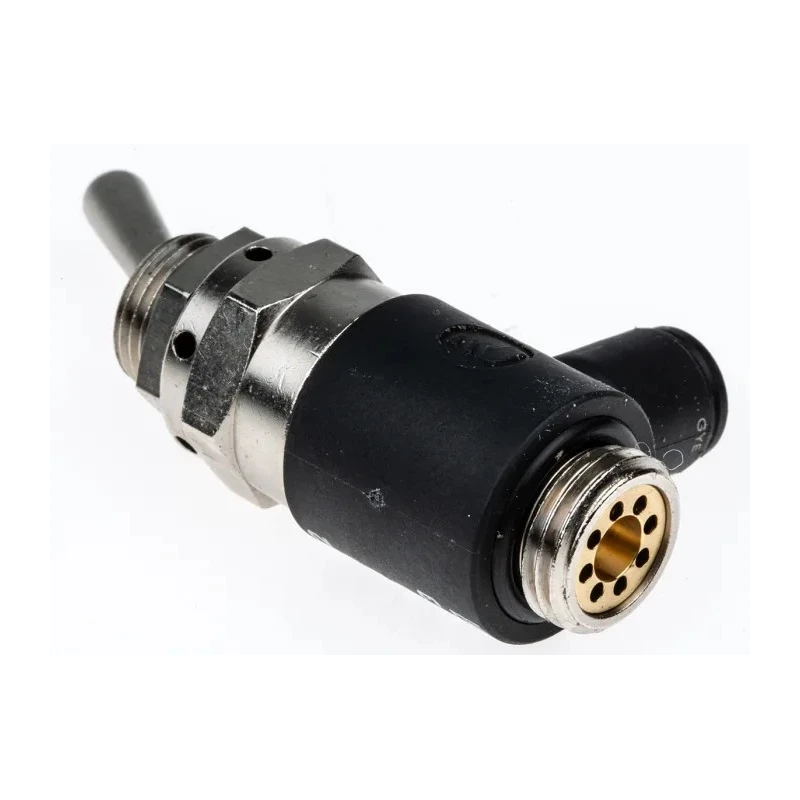

Legris Toggle Lever Pneumatic Manual Control Valve G 1/4, 3/2 Function, Brass Nylon Body, 10 bar Max Pressure 7801 06 13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Legris |
| Body Material | Brass, Nylon |
| Maximum Operating Pressure | 10 bar |
| Series | 7801 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +80°C |
| Thread Size | 1/4 in |
| Port Type | Outlet |
| Number of Positions | 2 |
| Port Size | G 1/4 |
| Minimum Operating Temperature | -10°C |
| Control Mechanism | Toggle Lever |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Port Gender | Male |
Key Features
- Equipped with a toggle lever control mechanism for manual operation.
- Features a maximum operating pressure of 10 bar.
- Constructed from durable brass and nylon materials for enhanced longevity.
- Operates within a temperature range of -10°C to +80°C.
- Designed with 2 positions and 3 ports for efficient fluid control.
- Compatible with G 1/4 connection thread standards.
- Fully orientable body and actuating toggle lever for versatile mounting options.
- Ideal for applications requiring frequent venting and compact installation.
Product Description
Legris 7801 06 13 pneumatic manual control valve is designed for reliable fluid power control within pneumatic systems. This valve features a sturdy brass and nylon body that can withstand a maximum operating pressure of 10 bar and temperatures ranging from -10°C to +80°C. The toggle lever control mechanism allows precise manual operation, making it suitable for industrial, laboratory, manufacturing, and HVAC pneumatic applications.
The valve incorporates a 3/2 function with three ports and two positions, providing immediate isolation of components within an air line system. Its G 1/4 male ports and standard G connection thread ensure compatibility with common pneumatic fittings. The fully orientable body and actuating toggle lever offer flexible installation options, including direct mounting on single-acting cylinders or gang mounting on manifold blocks.
This valve is particularly suited to applications requiring frequent venting and is ideal for use in confined spaces. The supply type enables air supply through threaded port 1 with system output at push-in port 2, while port 3 location remains constant. Blocking and venting fittings with BSP threaded inlet and LF3000 push-in outlet connections support efficient airflow management.
Legris 7801 series valves comply with relevant standards including REACH (RG: 1907/2006), PED (Directive 97/23/EC), and RoHS (Directive 2002/95/EC), ensuring adherence to industrial safety and environmental regulations.
Equipped with a toggle lever control mechanism for manual operation. Features a maximum operating pressure of 10 bar. Constructed from durable brass and nylon materials for enhanced longevity. Operates within a temperature range of -10°C to +80°C.
Designed with 2 positions and 3 ports for efficient fluid control. Compatible with G 1/4 connection thread standards. Fully orientable body and actuating toggle lever for versatile mounting options. Ideal for applications requiring frequent venting and compact installation.
This product is an essential pneumatic manual control valve for fluid power and industrial valve applications, supporting equipment efficiency and safety. Explore EnvMart’s category of Pneumatic Manual Control Valves for additional compatible products and further technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
It operates within a temperature range of -10°C to +80°C.
This valve has three ports and operates with a 3/2 function.
The valve is constructed from brass and nylon materials.
It is compatible with G connection thread standards, specifically G 1/4.
This pneumatic manual control valve utilizes a toggle lever control mechanism for manual operation.
Yes, it is designed to be ideal for applications requiring frequent venting and compact installation.
The port gender for this valve is male.
The valve features a fully orientable body and actuating toggle lever, allowing for versatile mounting options, including direct mounting on single-acting cylinders or gang mounting on manifold blocks.
It is suitable for industrial, laboratory, manufacturing, and HVAC pneumatic applications.
This valve complies with relevant standards including REACH, PED, and RoHS, ensuring adherence to industrial safety and environmental regulations.
The ports facilitate efficient airflow management, with air supply through threaded port 1 and system output at push-in port 2, while port 3 remains constant.
