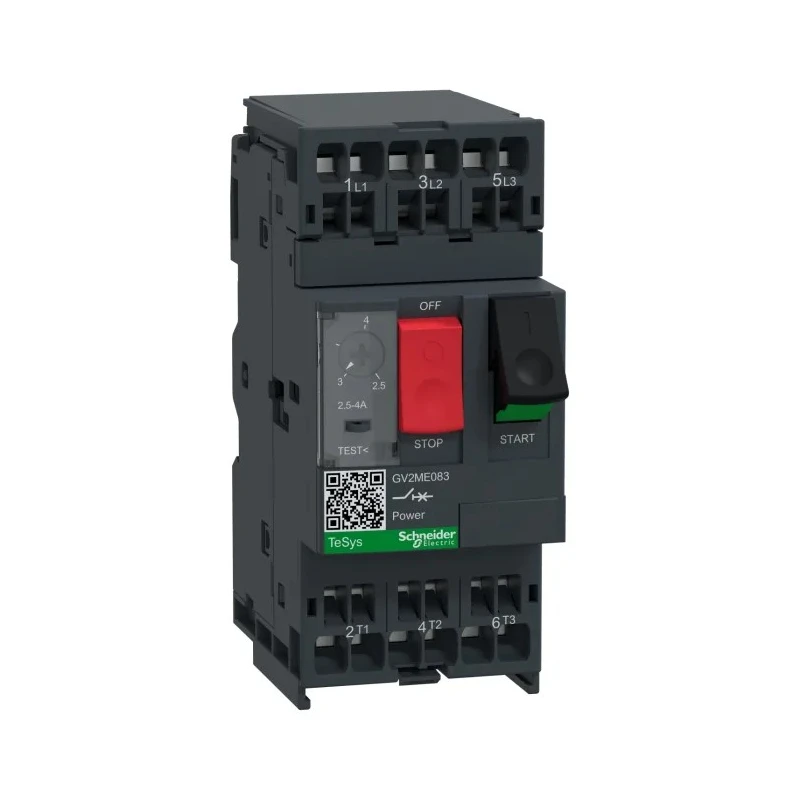

Schneider Electric Motor Protection Circuit Breaker 2.5-4A, 3 Poles, 690V, Thermal Magnetic, IP20 GV2ME083

Schneider Electric GV2ME083 is a high-quality Motor Protection Circuit Breaker designed for 3-phase motor applications, supporting current ratings from 2.5A to 4A and a supply voltage of 690V. This thermal magnetic circuit breaker offers dependable protection by combining thermal and magnetic sensing to safeguard motors against overloads and short circuits.

Engineered for industrial use, it operates safely within a temperature range of -20°C to 60°C, making it suitable for harsh environments. The IP20 rating protects against accidental contact with live parts and prevents ingress of larger dust particles, maintaining operational integrity.

The device features a compact form factor with dimensions of 101mm length, 44.5mm width, and 78.2mm depth. The mechanical durability supports up to 100,000 operational cycles, ensuring longevity and reliability in rigorous industrial applications.

Control is straightforward with push-button start and stop functions, providing ease of motor operation and enhanced safety. The circuit breaker exhibits a high breaking capacity of 100kA at 400V, mitigating risks from high fault currents. Connection is facilitated through spring terminals, streamlining installation on standard DIN rails without the need for special tools.

Certified to meet numerous international standards such as REACH, RoHS, UL, ATEX, CSA, IEC standards 60947-2 and 60947-4-1, and marine and industrial approvals, this product ensures compliance and reliability across global markets.

Thermal magnetic sensing provides reliable motor protection. Suitable for 3-phase motor applications with 3 poles. Wide operating temperature range from -20°C to 60°C. IP20 protection ensures touch-proof safety and dust resistance.

Mechanical durability rated at 100,000 cycles for long-term use. Push-button start-stop control for easy motor operation. High breaking capacity of 100kA at 400V enhances safety. Compliance with multiple international standards including IEC, UL, CSA, ATEX.

This Motor Protection Circuit Breaker is ideal for use in conveyor belts, heat extraction systems, and water treatment plants, supporting industrial, manufacturing, and commercial motor protection applications. It can be easily mounted on DIN rails, facilitating efficient installation and maintenance.
