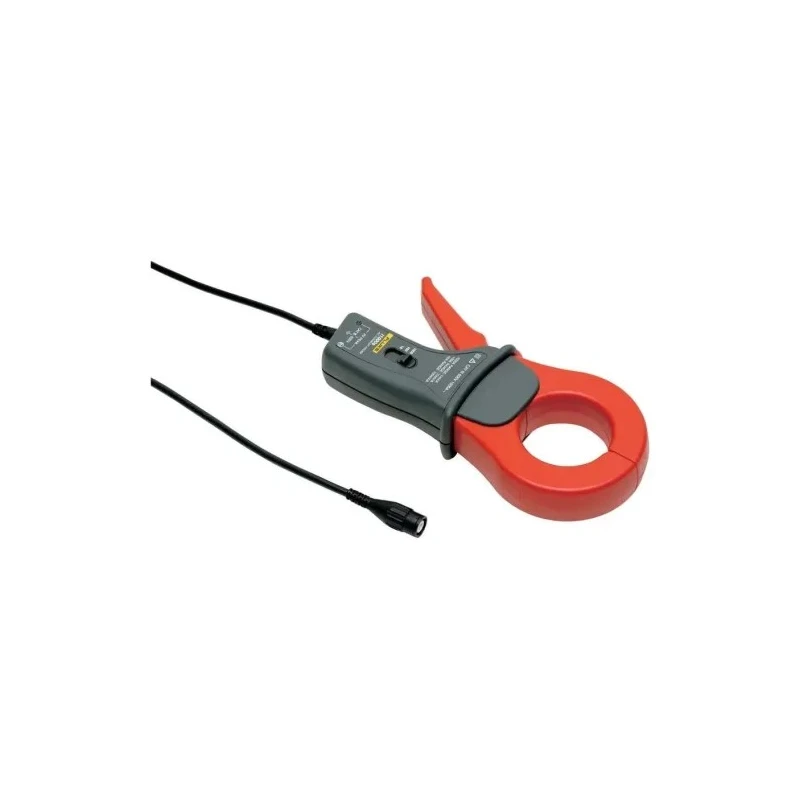

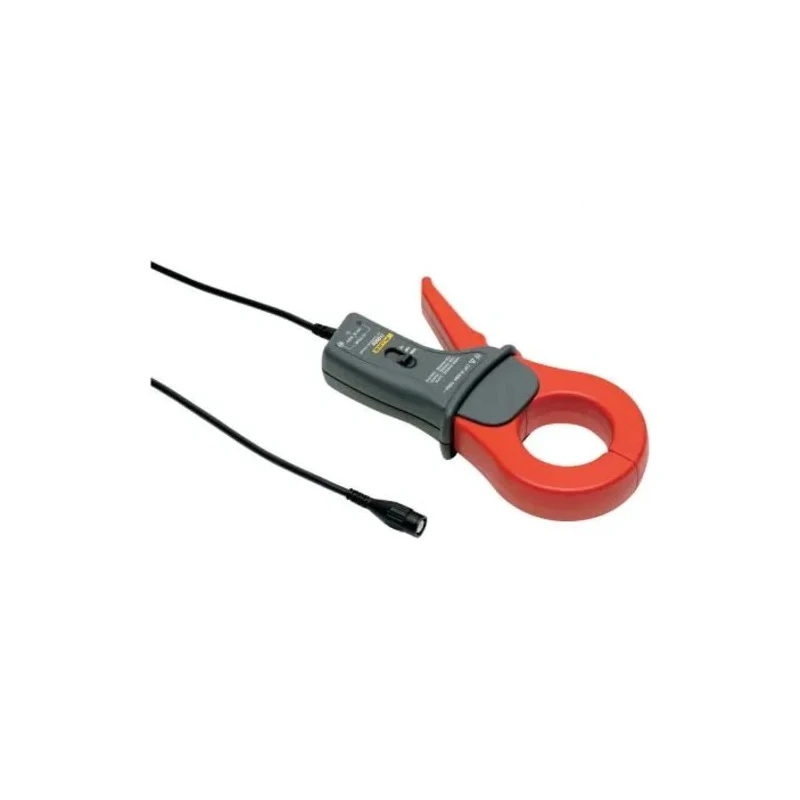

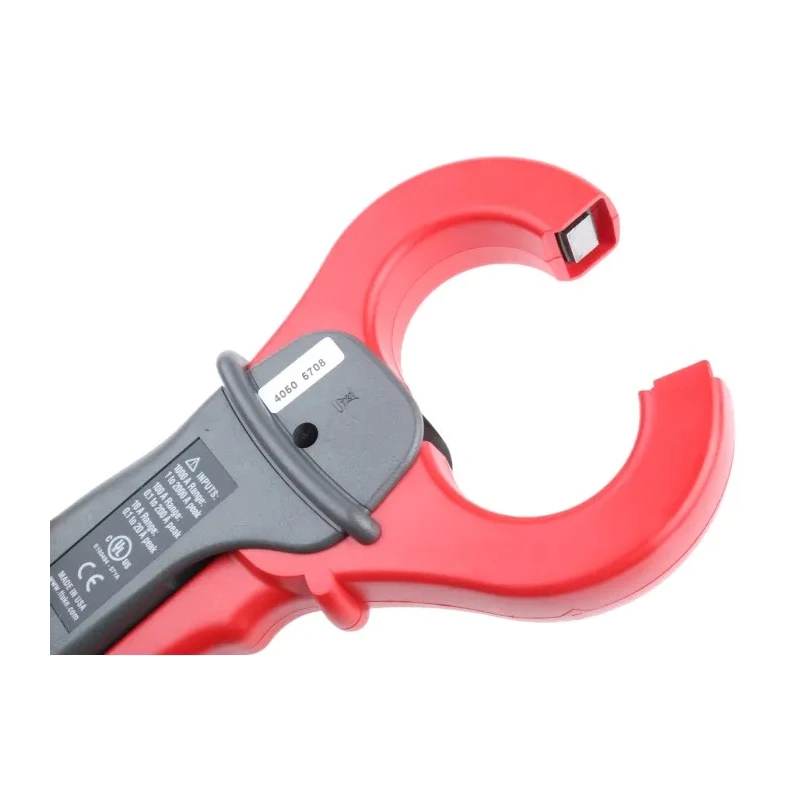

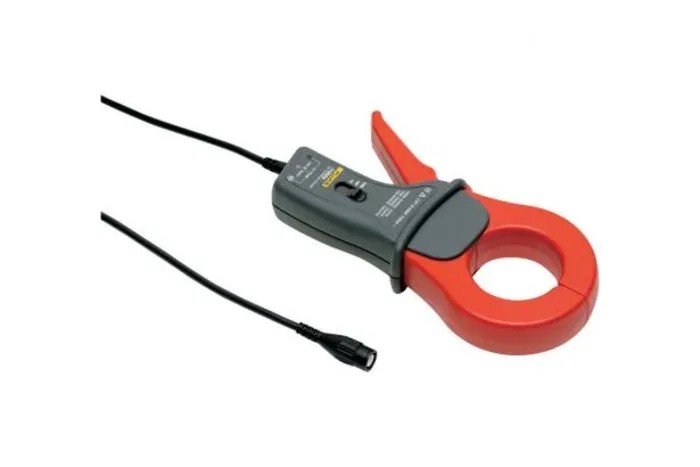

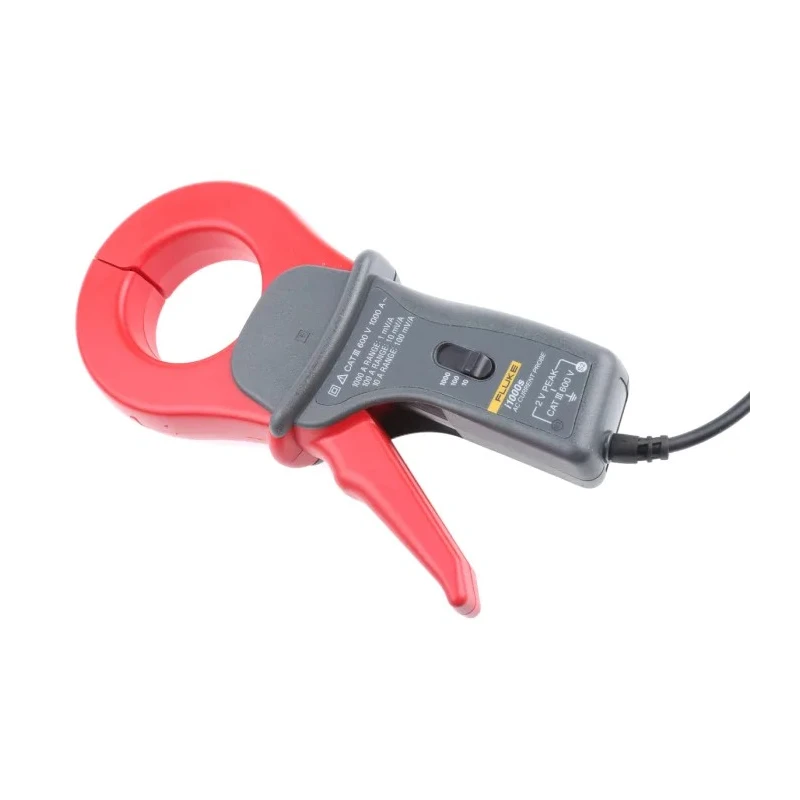

Fluke Power Quality Analyser Probe For Use With 41B Series I1000S

Fluke I1000S Power Quality Analyser Probe is a high-precision accessory designed exclusively for use with 41B Series analysers. It offers a portable and flexible solution for measuring alternating current over a wide amplitude and frequency spectrum, essential for power quality and energy monitoring tasks.

This probe features three selectable output sensitivity levels (100mV/A, 10mV/A, and 1mV/A), allowing optimal matching with input ranges of various analysers and recorders. It accurately measures AC currents from as low as 0.1A up to 1000A and maintains a usable frequency range between 5Hz and 100kHz, supporting a variety of electrical signal types encountered in industrial and commercial environments.

With a basic accuracy of 1% plus 1A, the I1000S supports precise comparative analyses and trend monitoring, while its robust design withstands transient currents up to 2000A. The probe accommodates conductors up to 54mm in diameter, enabling measurements on large cables commonly found in power distribution systems.

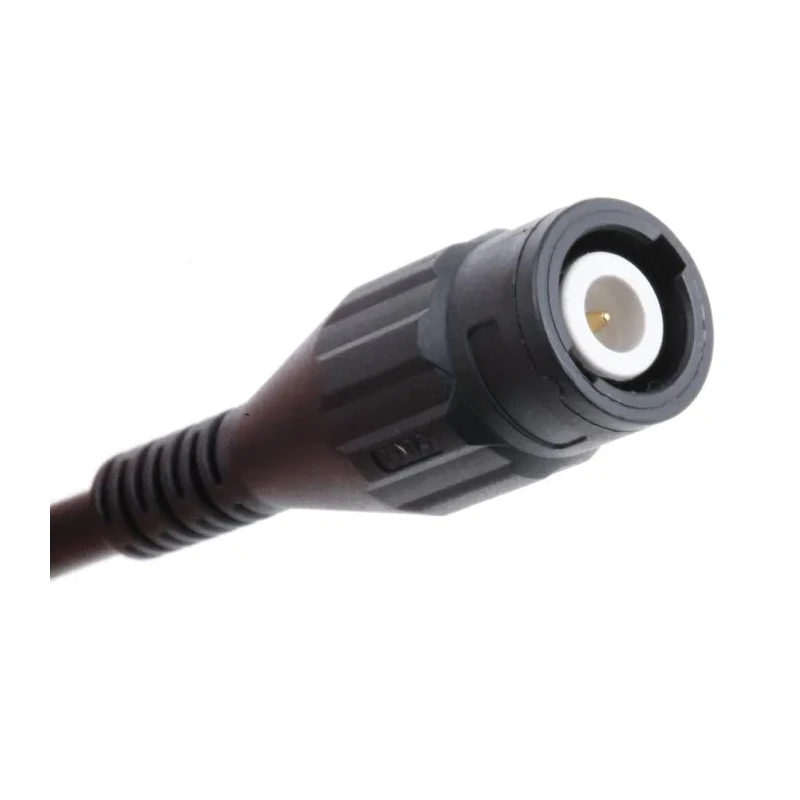

Safety is ensured with ratings conforming to CAT III 600V and CAT IV 300V environments, making it suitable for use near mains installations. The probe comes equipped with a 1.6-meter output cable terminating in a BNC adaptor for simple integration with test instruments.

Three selectable output sensitivity levels enhance measurement adaptability. Broad current measurement range covering 0.1A to 1000A AC. Wide frequency response from 5Hz to 100kHz suitable for diverse applications. High accuracy supports dependable power quality monitoring.

Durable against transient currents up to 2000A for enhanced protection. Spacious conductor aperture accepts cables up to 54mm diameter. Equipped with a 1.6m cable and BNC adaptor for easy connection. Safe for use in CAT III 600V and CAT IV 300V rated environments.

Applicable for energy monitoring, harmonic analysis, and fault diagnosis.

This probe is essential for technicians in electrical, electronic, and automation fields performing power quality measurements, load studies, commissioning, and fault diagnosis in industrial, commercial, and laboratory settings. It provides a reliable interface to Fluke 41B Series analysers, facilitating detailed AC current data capture required for diagnostic and monitoring workflows.
