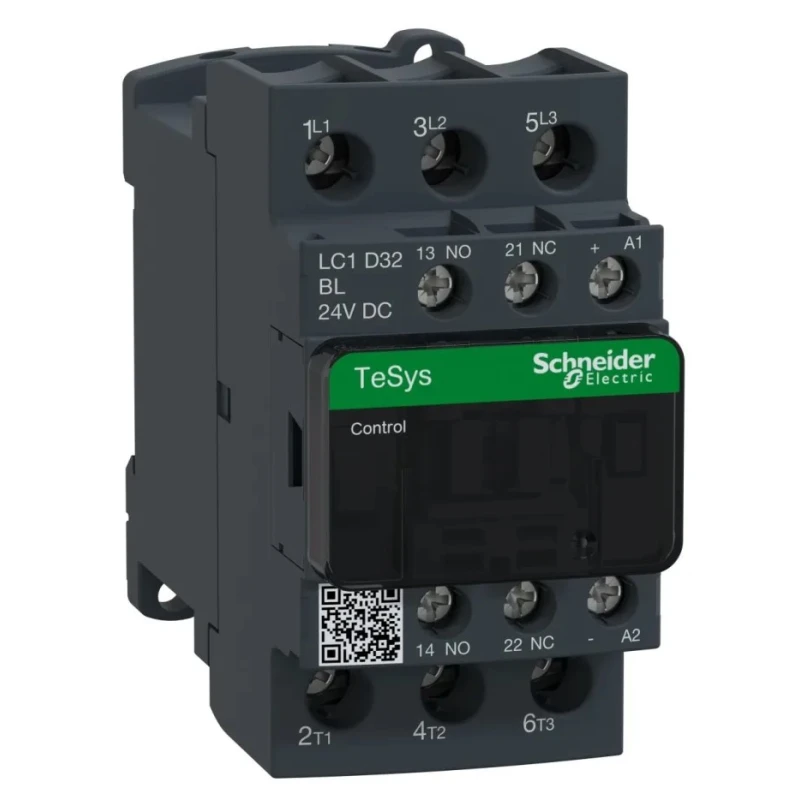

Schneider Electric TeSys Deca Contactor, 24V DC Coil, 3-Pole, 32A, 15kW, 690V AC LC1D32BL
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32BL |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- The contactor provides efficient motor control for resistive loads.
- Equipped with 3 NO normal state contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Designed for mounting on DIN rails with screw terminals for secure connections.
- Operates in extreme temperatures ranging from -40°C to +60°C.
- Flame-retardant and IP20 rated for protection against electrical shock and foreign objects.
- Compact dimensions allow space-saving installation in control panels.
- Compliant with international standards including IEC, UL, CSA, and RoHS for safety and reliability.
- End-of-life optimized with designed-for-disassembly approach for sustainability.
Product Description
Schneider Electric LC1D32BL is a 3-pole contactor from the TeSys Deca series designed for motor control and resistive load applications. Featuring a 24V DC coil and a contact current of 32A, it can handle a power rating of 15kW at 690V AC. This contactor reliably manages fast switching with minimal arcing to protect machinery and reduce downtime.
Mounted on a DIN rail with screw terminals, it offers a secure and easy installation experience. The device includes 3 normally open (NO) main contacts and 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) to enable flexible control circuit designs.
Built to endure harsh industrial environments, the LC1D32BL contactor operates within a temperature range from -40°C to +60°C. Its IP20-rated enclosure and flame-retardant materials enhance operational safety by preventing electric shocks and fire hazards.
The compact size of 85mm length, 45mm width, and 99mm depth minimizes the panel footprint. Certification to standards such as IEC 60947-4-1, UL 508, CSA C22.2 No 14, and RoHS ensures compliance with global regulatory requirements.
This contactor is ideal for applications in industrial automation, lighting control, chemical and petrochemical industries, printing, binding, and motor control systems. It is designed with sustainability in mind, featuring an end-of-life optimization for easy disassembly and reduced landfill waste.
The contactor provides efficient motor control for resistive loads. Equipped with 3 NO normal state contacts and 2 auxiliary contacts (1 NO and 1 NC). Designed for mounting on DIN rails with screw terminals for secure connections.
Operates in extreme temperatures ranging from -40°C to +60°C. Flame-retardant and IP20 rated for protection against electrical shock and foreign objects. Compact dimensions allow space-saving installation in control panels.
Compliant with international standards including IEC, UL, CSA, and RoHS for safety and reliability. End-of-life optimized with designed-for-disassembly approach for sustainability. Explore the range of Schneider Electric automation & control gear at EnvMart for industrial and commercial application needs.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D32BL contactor has a power rating of 15kW at 690V AC.
This model operates with a coil voltage of 24V DC.
The maximum operating temperature for the contactor is 60°C.
The LC1D32BL contactor is a 3-pole device.
It is designed for mounting on DIN rails with screw terminals for secure connections.
The contactor includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions of this model are 85mm in length, 45mm in width, and 99mm in depth.
It complies with several international standards including IEC, UL, CSA, and RoHS.
This contactor is suitable for motor control and resistive load applications.
The contact current rating for this model is 32A.
The minimum operating temperature for the contactor is -40°C.
The contactor is flame-retardant and has an IP20 rating for protection against electrical shock and foreign objects.
