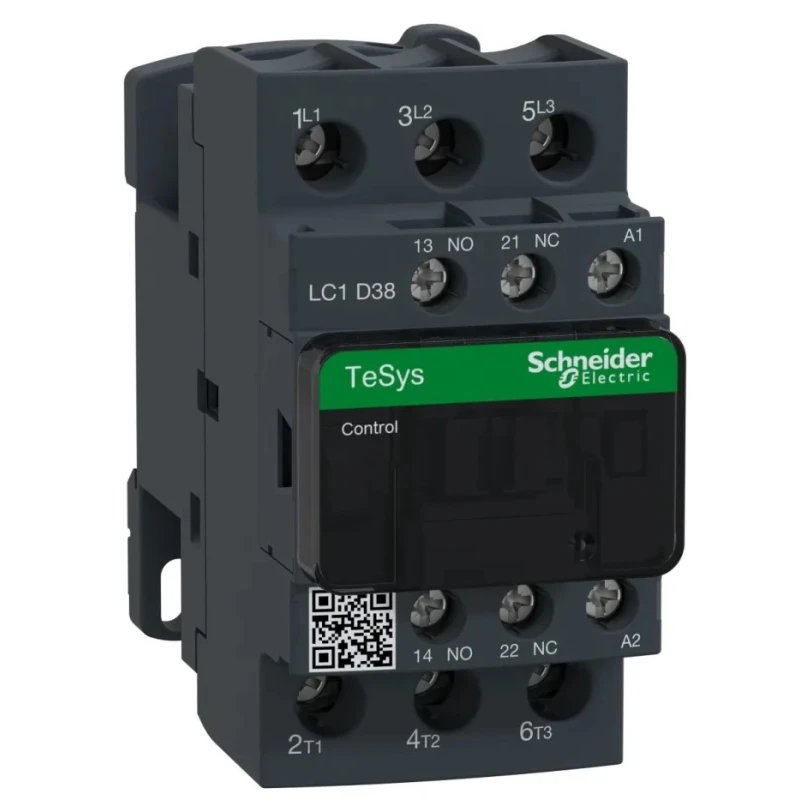

Schneider Electric TeSys D Series Contactor, 3-Pole, 38A, 18.5 kW, 230V AC Coil LC1D38P7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D38P7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 38A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 38A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a 230V AC coil for efficient operation.
- 3-pole configuration supports up to 38A contact current.
- Power rating of 18.5 kW at 230V AC for high capacity performance.
- Includes 3 normally open (NO) contacts for reliable circuit switching.
- Two auxiliary contacts configured as 1 NO and 1 NC for enhanced functionality.
- Suitable for use in harsh environments with operating temperatures from -5°C to 60°C.
- Durable DIN rail mount design for easy installation.
- IP20 rated, providing touch protection and resistance to objects larger than 12mm.
Product Description
Schneider Electric LC1D38P7 is a TeSys D Series contactor designed for motor control and resistive load applications with a coil voltage of 230V AC. This 3-pole contactor delivers reliable switching performance with a contact current rating of 38A and power rating of 18.5 kW at 230V AC.
The device incorporates three normally open (NO) contacts that rapidly open and close circuits with a spring-loaded mechanism, ensuring switching times between 4ms to 22ms depending on opening or closing.
Featuring two auxiliary contacts configured as one normally open (NO) and one normally closed (NC), this contactor extends its switching capabilities to auxiliary circuit requirements.
Designed to withstand harsh industrial conditions, it operates reliably in temperatures from -5°C to 60°C and is rated IP20 for protection against touch and objects larger than 12mm. The unit withstands impulse voltages up to 6kV, offering robust protection against surges.
Constructed for DIN rail mounting, the contactor fits compactly within industrial panels with dimensions of length 85mm, width 45mm, and depth 90mm. Its build quality ensures resistance to vibration and shock, making it suitable for industrial, manufacturing, HVAC, and automation control environments.
Equipped with 230V AC coil voltage for compatibility with standard industrial control circuits. Three poles with a high current rating of 38A enable control of heavy electrical loads. Power rating of 18.5 kW at 230V AC supports a wide range of motor applications.
Two auxiliary contacts allow flexible control circuit integration. Impulse voltage rating of 6kV ensures equipment protection from surges. IP20 protection rating guarantees operator safety and dust ingress resistance. Operating temperature range suitable for demanding industrial environments.
Compact and robust design with DIN rail mount simplifies installation.
Applications for the Schneider Electric LC1D38P7 contactor include squirrel-cage and slip-ring motors, escalators, and various automation control systems requiring reliable high-current switching capabilities.
Explore the EnvMart selection of Schneider Electric Contactors and related automation control gear to enhance your industrial processes with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of the Schneider Electric LC1D38P7 is 38A.
This contactor has a power rating of 18.5 kW at 230V AC.
The coil voltage for this model is 230V AC.
The Schneider Electric LC1D38P7 features a 3-pole configuration.
It operates reliably within a temperature range of -5°C to 60°C.
This model includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions of the LC1D38P7 are 85mm in length, 45mm in width, and 90mm in depth.
It is designed for DIN rail mounting, facilitating easy installation.
The contactor has an IP20 rating, providing touch protection and resistance to objects larger than 12mm.
This contactor is suitable for motor control and resistive load applications, including squirrel-cage and slip-ring motors.
It complies with several standards, including CCC, CSA, EAC, IEC, RoHS, and UL.
The LC1D38P7 can withstand impulse voltages up to 6kV, providing robust protection against surges.
