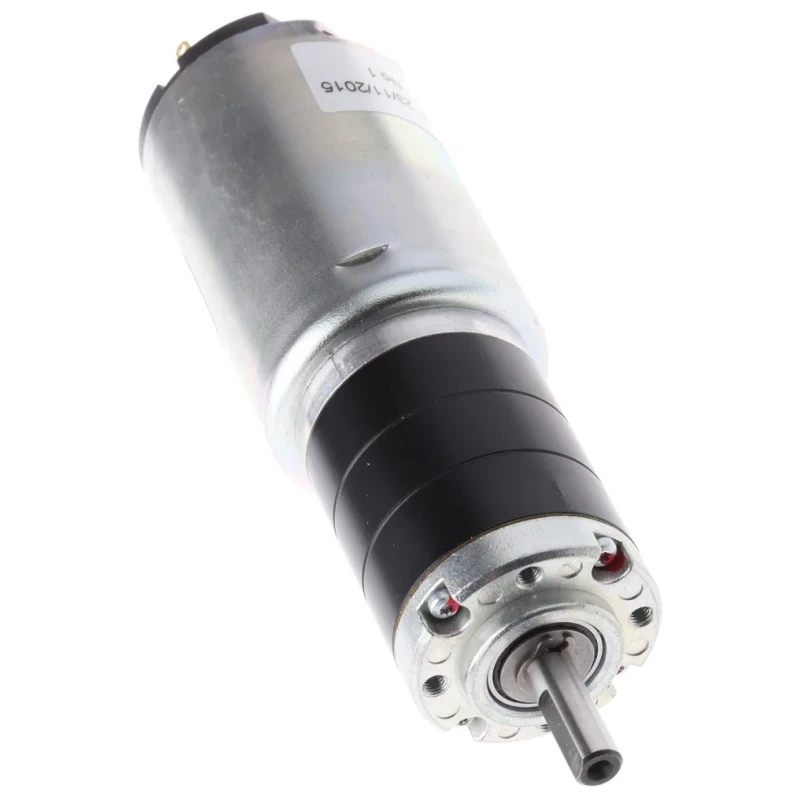

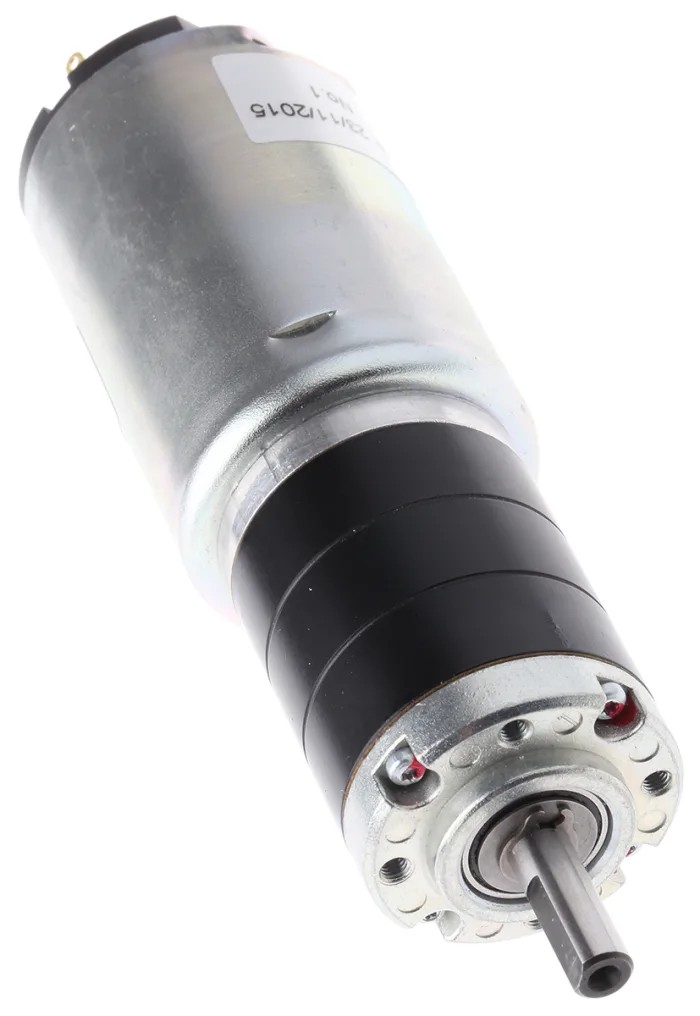

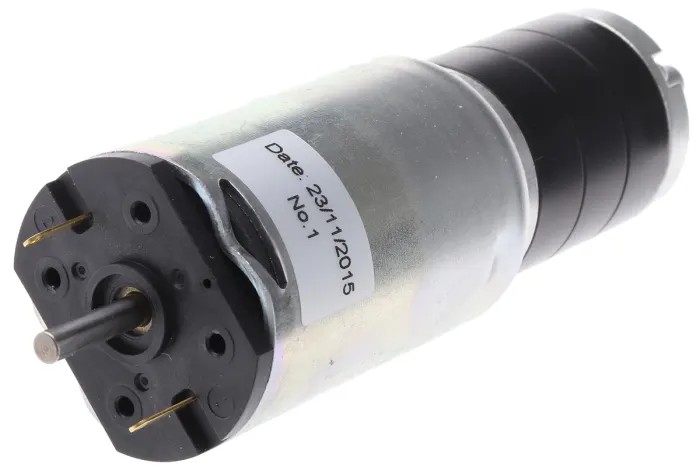

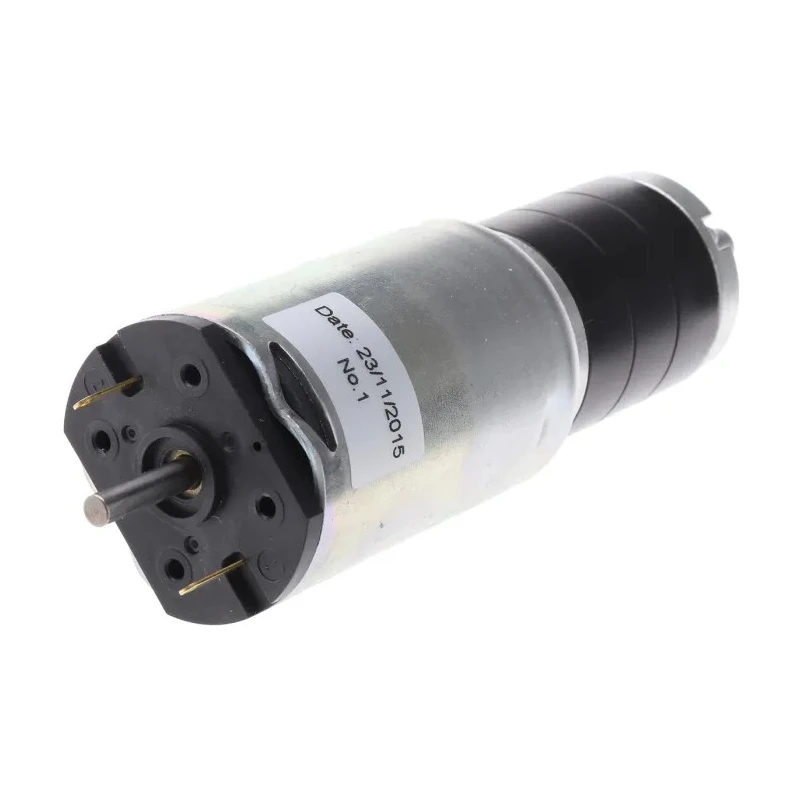

RS PRO Brushed Geared DC Geared Motor 24V dc 13.2 W 4.5 Nm Torque 63 rpm Output Speed 6 mm Shaft Diameter Model 398-9833

RS PRO 398-9833 Brushed Geared DC Geared Motor operates at 24V dc with a power rating of 13.2 W. This precision motor features an iron core graphite brushed design coupled with a robust planetary gearhead, offering high torque and smooth low cogging operation.

The motor's technical specifications such as 4.5 Nm maximum output torque and 63 rpm output speed make it well-suited for industrial automation tasks requiring precise motion control. Its 6 mm shaft diameter and 20 mm shaft length enable compatibility with a broad range of coupling and mounting options.

With dimensions of 106 mm length, 38 mm width, and 38 mm depth, it is compact yet powerful, ideal for applications like pick and place machines, ticket dispensers, and other control gear where dependable linear and rotary motion is critical.

Equipped with screw mount type for secure installation and a gear ratio of 100:1, this motor can efficiently handle torque demands. The 850 mA current rating and adherence to RoHS compliance underscores its suitability for environmentally conscious manufacturing environments.

The graphite brushes and planetary gearhead ensure reduced noise and vibration during operation, providing prolonged durability and maintenance ease. Features a high quality planetary gearhead optimized for smooth operation.

Equipped with a graphite brushed motor and iron core construction. 6 mm diameter shaft with 20 mm shaft length for secure mounting. Motor dimensions are 106 mm length, 38 mm width, and 38 mm depth. Designed for screw mount type and offers a gear ratio of 100:1.

Current rating is 850 mA suitable for various automation applications. Complies with RoHS standards ensuring environmental safety. Ideal for industrial automation including pick and place and ticket dispensing machines.

This RS PRO DC geared motor is a reliable choice for industrial, laboratory, and commercial automation systems requiring efficient power-to-speed conversion and durability. Explore more DC Geared Motors and components in the RS PRO range for your automation and control needs at EnvMart.
