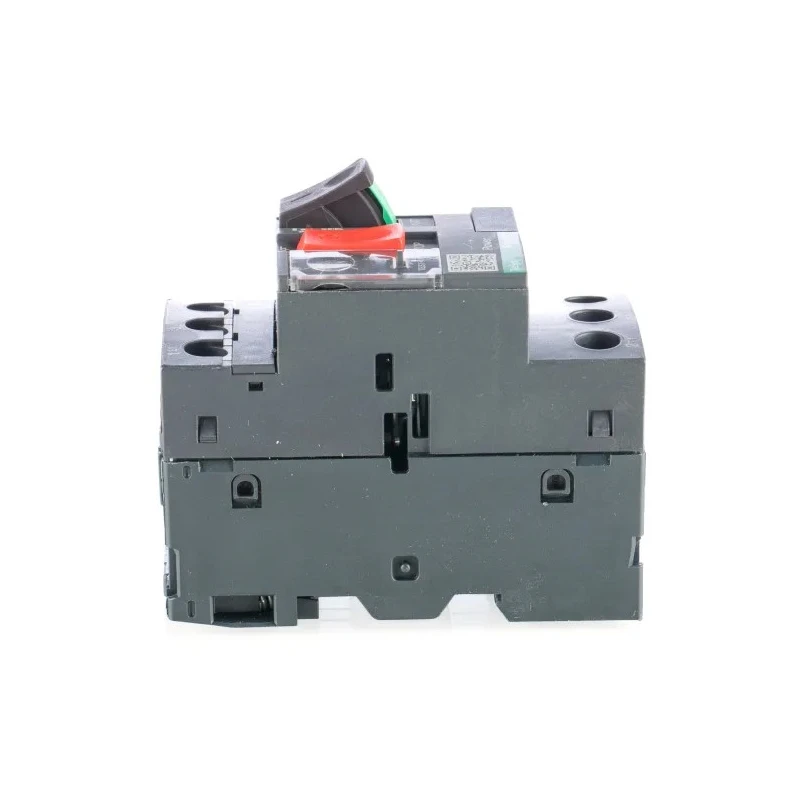

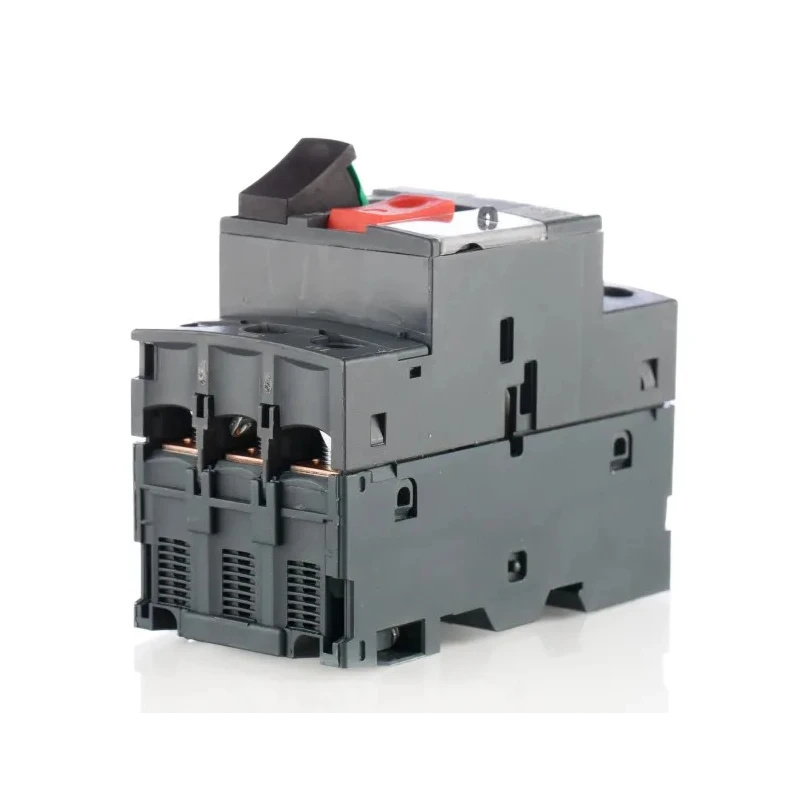

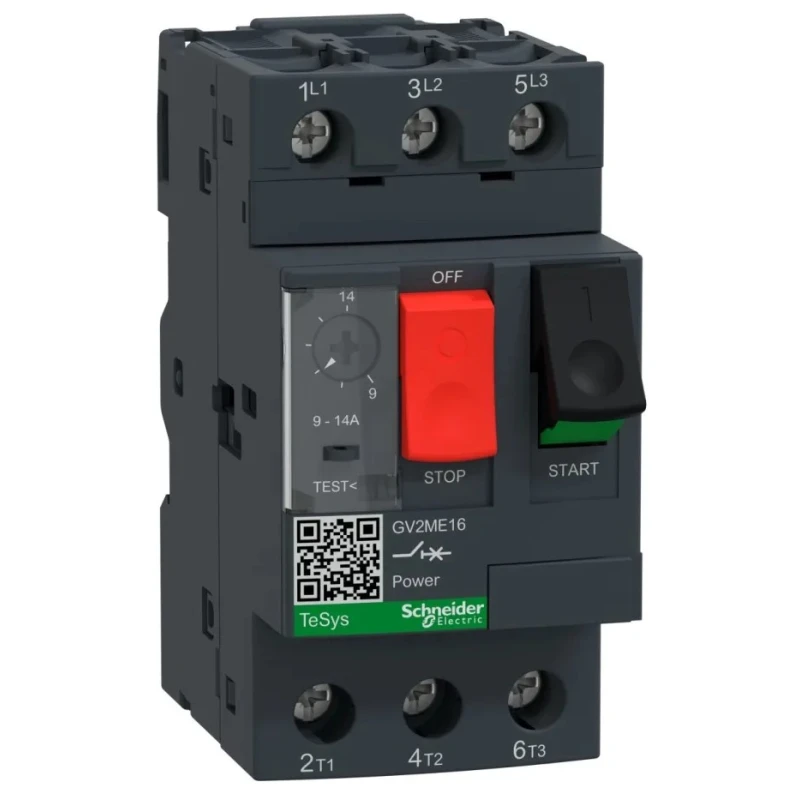

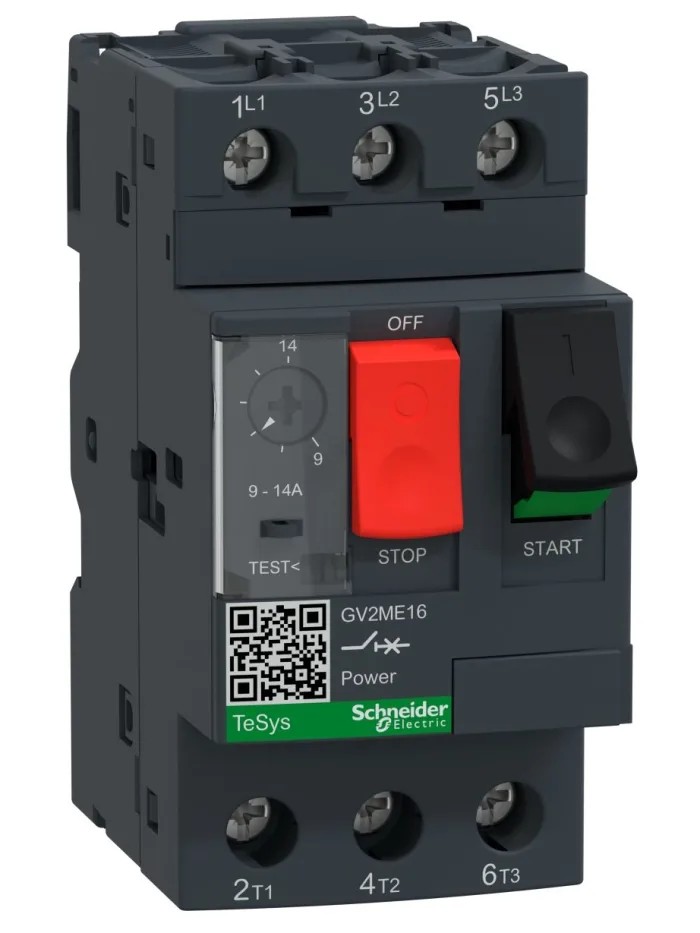

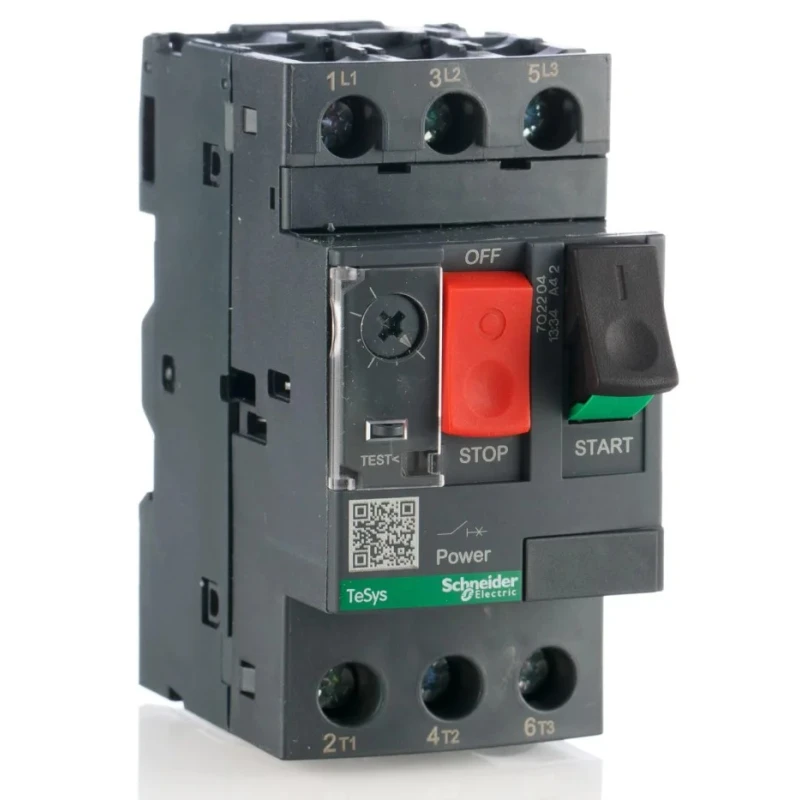

Schneider Electric Motor Protection Circuit Breaker, 14A, 9 A, Thermal Magnetic, 690V, 3 Poles, IP20, -20°C to 60°C GV2ME

Schneider Electric GV2ME Motor Protection Circuit Breaker features a 14A and 9A current rating with a thermal magnetic sensing type, designed to safeguard motors against overloads, short circuits, and electrical faults. This device is engineered for industrial and commercial applications where motor safety and continuity of operation are critical.

The compact and robust circuit breaker has dimensions of 89mm height, 45mm width, and 78.2mm depth, with an IP20 rating suitable for indoor environments. Its operating temperature range from -20°C to 60°C validates its use in diverse settings including automotive industries, HVAC systems, and processing plants. Installation is simplified by DIN rail mounting and labelled screw terminals.

Standards compliance includes IEC 60947-2, IEC 60947-4-1, UL, CSA, and other international approvals, reflecting its suitability for global industrial use. The breaker includes features such as flexible locking of the N/C position via up to three padlocks and a clear push button and selector switch for operational control. The low power loss of 2.5W per pole ensures energy-efficient protection for extended operational cost savings.

With a mechanical lifespan of 100,000 electrical cycles, the GV2ME breaker delivers durable, low-maintenance performance. It is part of Schneider Electric’s TeSys Deca series that is designed for disassembly and enhanced sustainability.

Rated current of 14A and 9A provides precise motor protection. Thermal magnetic sensing detects overloads and short circuits efficiently. Compact size allowing easy DIN rail mounting in control panels. Tough IP20 enclosure designed for indoor industrial environments.

Wide operating temperature range from -20°C up to 60°C for resilience. Compliant with multiple international safety and performance standards. Low power loss, minimizing energy consumption during operation. Durability with 100,000 electrical cycles ensures long-term reliability.

Lockable selector switch prevents accidental setting changes.

This Motor Protection Circuit Breaker is ideal for protecting motors in industrial, HVAC, automotive, and manufacturing applications, ensuring the stable and safe operation of electrical motor systems. Choose Schneider Electric GV2ME for dependable motor fault protection and energy efficiency in critical electrical installations.
