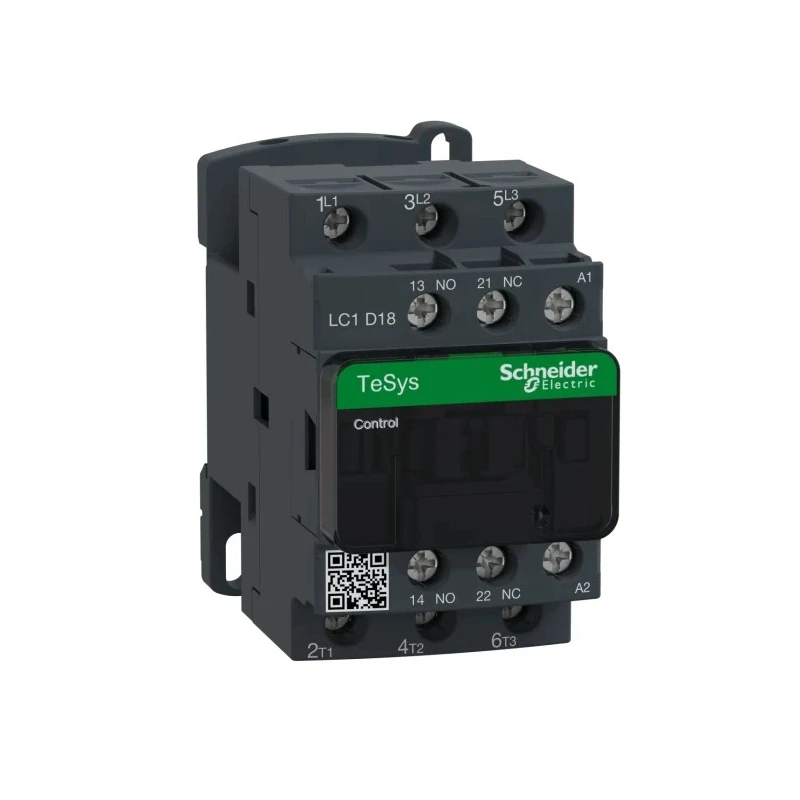

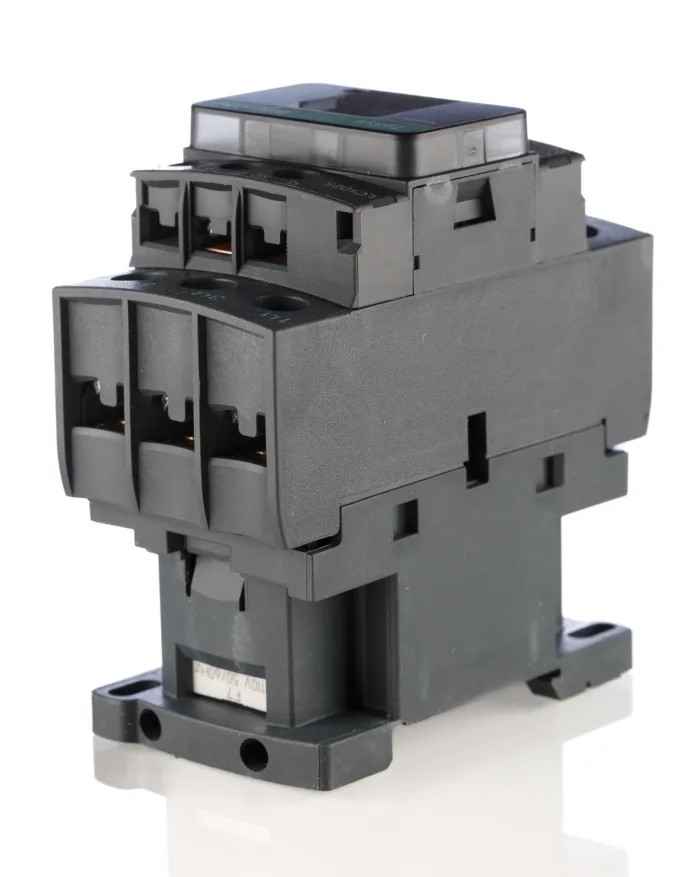

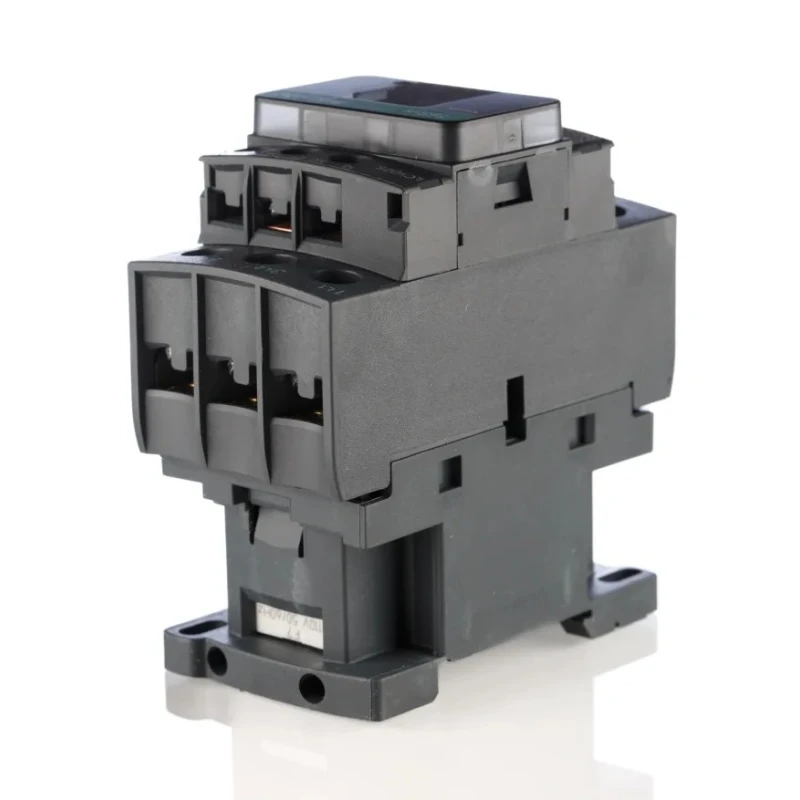

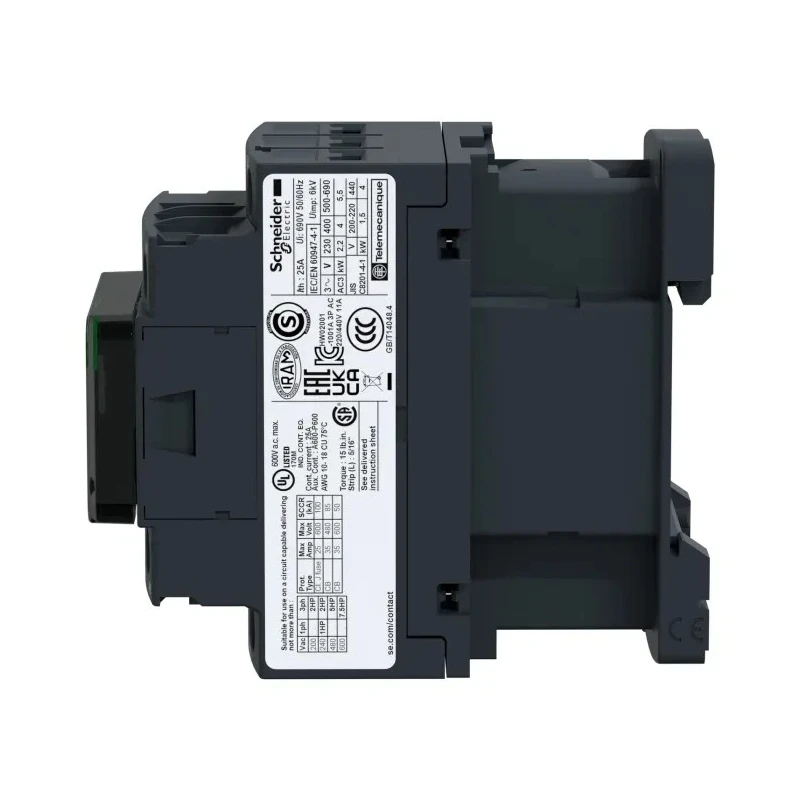

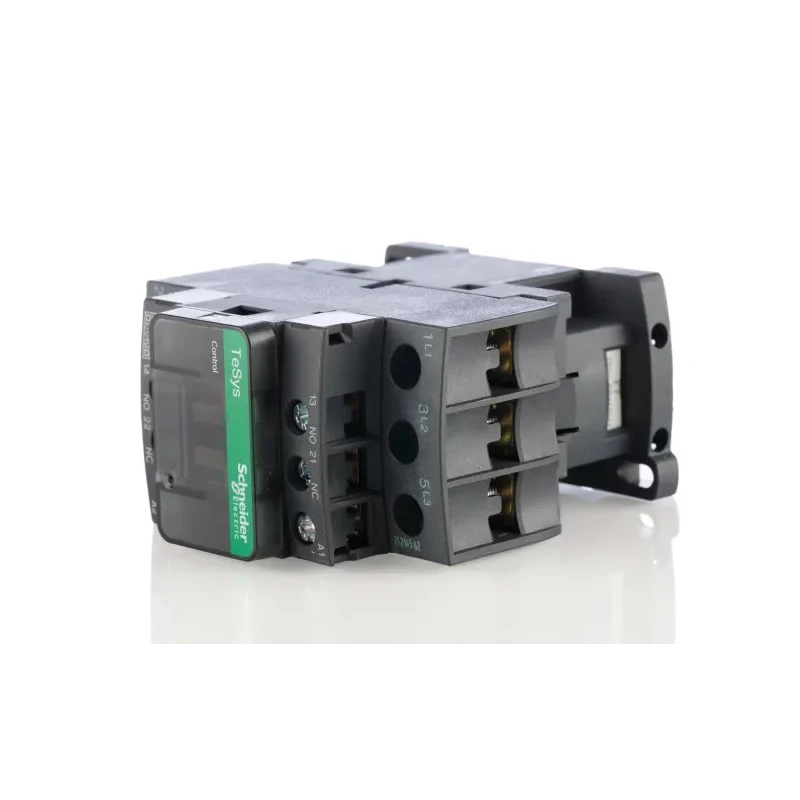

Schneider Electric LC1D Contactor, 3-Pole, 18A, 7.5 kW, 24V AC Coil, 690V AC Contact Voltage
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| 3 pole contactor,9kW 18A 24Vac coilBrand | Telemecanique |
Key Features
- Operates with a coil voltage of 24V AC for efficient control.
- Supports 3 poles suitable for various motor control functions.
- Handles contact voltage up to 690V AC safely.
- Maximum contact current capacity is 18A, supporting medium power motors.
- Power rating of 7.5 kW for versatile motor applications.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for enhanced circuit control.
- DIN rail mounting with screw terminals for secure and easy installation.
- Functionality optimized for motor control and resistive load management.
Product Description
The Schneider Electric LC1D18B7 is a 3-pole contactor designed for motor control and resistive load applications. It features a 24V AC coil voltage and is capable of handling contact voltages up to 690V AC with a maximum contact current of 18A, making it suitable for medium-sized industrial motors up to 7.5 kW power rating.
This contactor is built for durability and safety, equipped with screw terminals and DIN rail mounting for straightforward installation in control panels and automation systems. The device includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) to support complex relay and control functions.
Its compact design with dimensions of 77mm length, 45mm width, and 86mm depth makes it suitable for space-constrained applications. The LC1D18B7 operates reliably in a wide temperature range from -40°C to +60°C, ensuring stable performance in varied environmental conditions.
Certified to rigorous international standards including CCC, CSA, EAC, IEC, RoHS, and UL, this contactor meets industry requirements for safety and quality. Applications span across industrial automation, motor control systems, HVAC equipment, and resistive load control circuits, where efficient and reliable switching is critical.
Operates with a coil voltage of 24V AC for efficient control. Supports 3 poles suitable for various motor control functions. Handles contact voltage up to 690V AC safely. Maximum contact current capacity is 18A, supporting medium power motors.
Power rating of 7.5 kW for versatile motor applications. Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for enhanced circuit control. DIN rail mounting with screw terminals for secure and easy installation.
Functionality optimized for motor control and resistive load management. Compact physical dimensions: Length 77mm, Width 45mm, Depth 86mm. Designed to operate reliably between -40°C and 60°C ambient temperatures. Complies with standards such as CCC, CSA, EAC, IEC, RoHS, and UL.
Explore the Schneider Electric Contactors category at EnvMart to find reliable control components tailored for your automation and motor management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current capacity of this model is 18A, making it suitable for medium power motors.
This contactor has a power rating of 7.5 kW, which allows it to support various motor applications effectively.
It operates with a coil voltage of 24V AC, providing efficient control for motor functions.
The dimensions of this contactor are 77mm in length, 45mm in width, and 86mm in depth, making it suitable for compact installations.
This model can handle contact voltages up to 690V AC safely, which is essential for various industrial applications.
The LC1D18B7 features 3 poles, which are suitable for different motor control functions.
It supports DIN rail mounting, which allows for secure and easy installation in control panels.
The unit includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for enhanced circuit control.
This contactor operates reliably in a temperature range from -40°C to +60°C, ensuring stable performance in varied conditions.
It complies with several international standards including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring safety and quality.
This contactor is designed for motor control and resistive load applications, making it suitable for industrial automation and HVAC systems.
It features screw terminals, which provide a secure connection for installation in control systems.
