Idec Illuminated Miniature Push Button Switch, Latching, Panel Mount, 8 mm Cutout, SPDT, IP40, 24 V DC 125 V AC AL8Q-A100

Idec AL8Q-A100 is an illuminated miniature push button switch designed for precise control and indication in industrial and automation settings. It features a latching On-Off operation, ensuring stable switching states without continuous pressure.

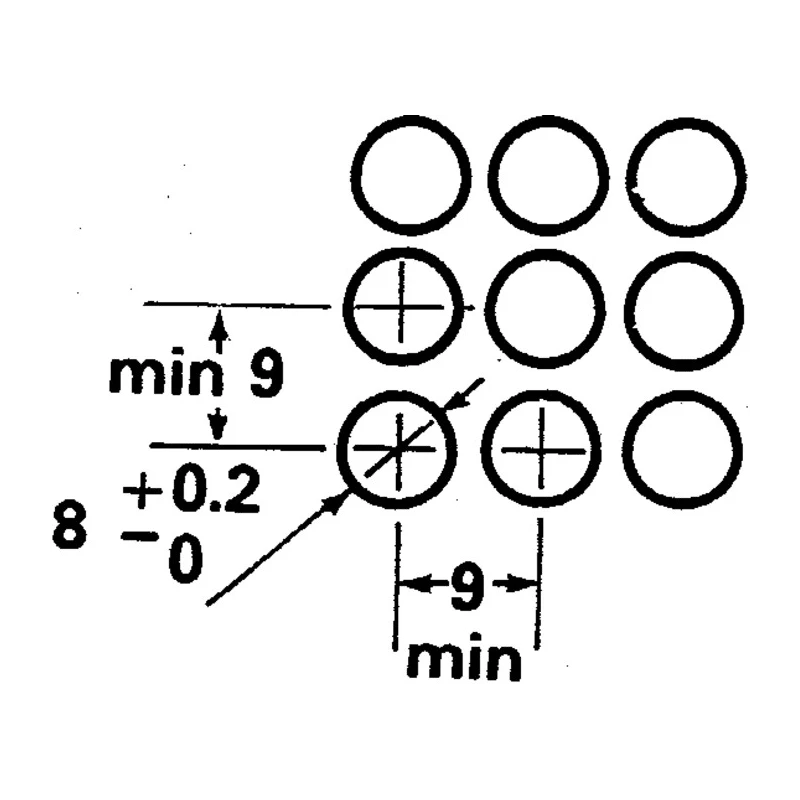

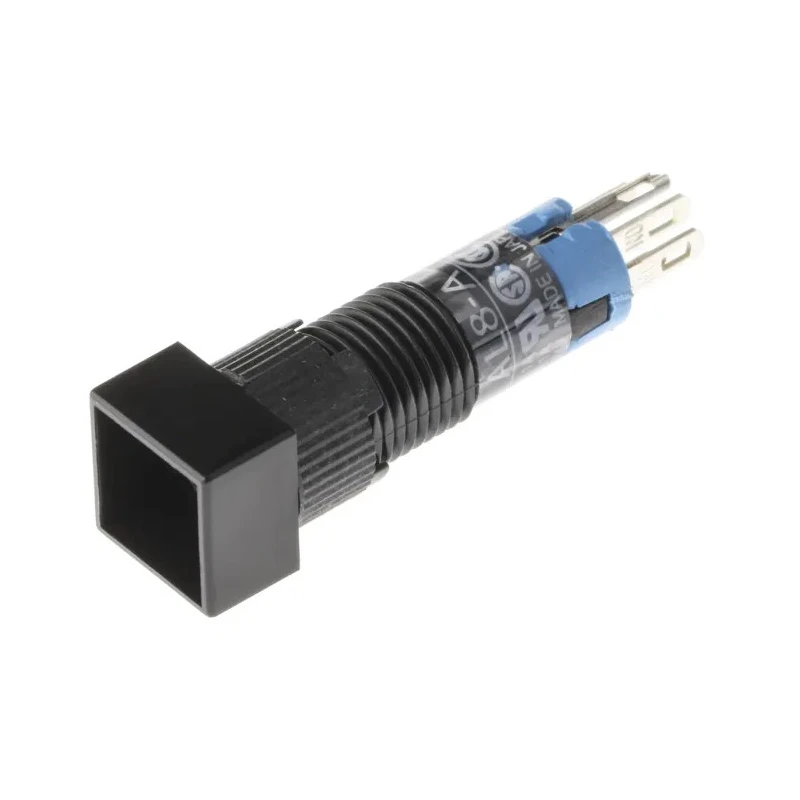

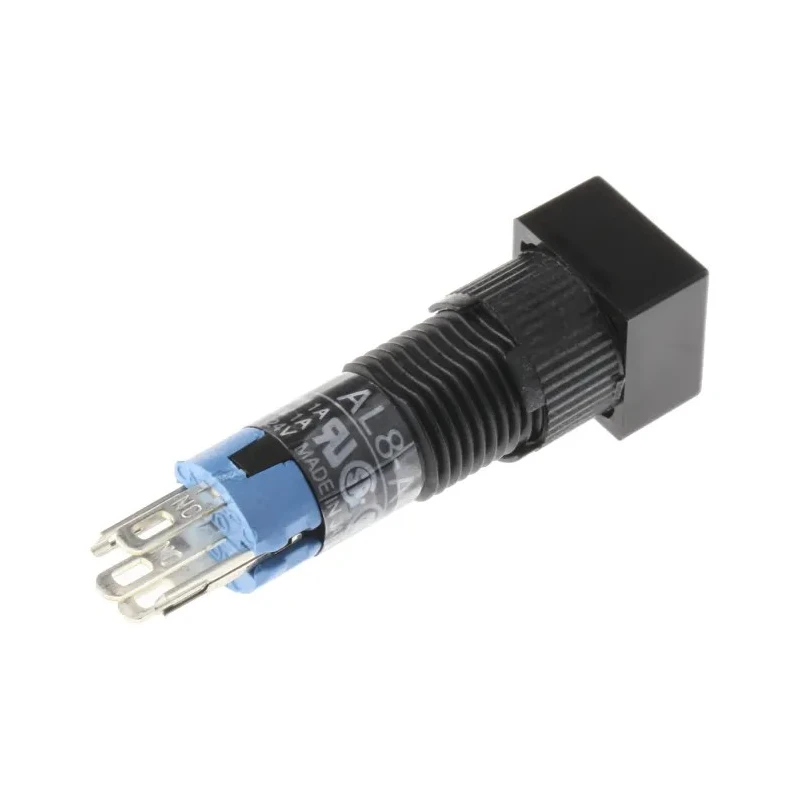

The switch is panel-mounted with an 8 mm cutout diameter, making it suitable for compact or restricted installations. The black cylindrical actuator offers ergonomic handling, and the illumination aids in operational visibility and status indication.

This push button supports Single Pole Double Throw (SPDT) contact configuration, allowing versatile circuit switching. It operates at 24 V DC and 125 V AC with a contact current rating of 100 mA, suitable for low to moderate power control circuits.

The IP40 rating provides dust protection and basic ingress prevention, ideal for indoor industrial environments. It operates reliably over a wide temperature range from -25°C to 120°C, making it resilient in various harsh conditions.

The switch meets CSA and UL approvals, ensuring compliance with safety and performance standards. The solder terminal type guarantees secure electrical connections for stable signal transmission.

Illumination is provided by LEDs, which require an external resistor to limit current to 20 mA. The LED forward voltage varies by color with red at 1.7 V, green at 2.1 V, and yellow at 2.2 V. Notably, when unlit, the green LED may appear yellow, an important consideration for status interpretation.

Industrial applications include electrical control panels, machinery operation, automation systems, and equipment requiring visual feedback. The compact design supports use in electrical distribution, manufacturing plants, and other industrial automation sectors where reliability and user feedback are crucial.

Set contains 1 piece Illuminated Miniature Push Button Switch AL8Q-A100, suitable for integration into existing control panels or new installations. This product is manufactured in Japan, renowned for quality and precision engineering.

Explore more high-quality Push Button Switches and automation components at EnvMart to suit diverse industrial needs. The actuator is black and styled as a cylinder for easy operation and ergonomics. This switch functions on a latching mechanism with an On-Off switch configuration.

It is illuminated, providing visual indication using LEDs with suitable external resistors. Designed for panel mounting, the switch has a compact length of 22 mm to fit tight spaces. Operating voltages include 24 V DC and 125 V AC with a switch contact current rating of 100 mA.

The product withstands a temperature range from -25°C minimum to 120°C maximum. The device complies with CSA and UL standards, ensuring safety and reliability. Terminal connections use solder type for secure electrical contacts.
