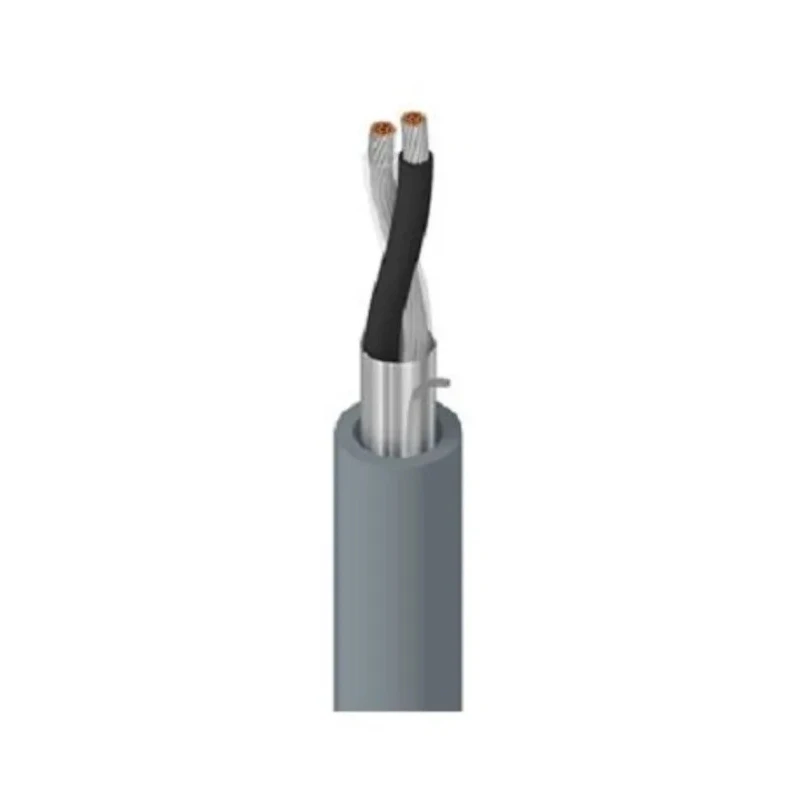

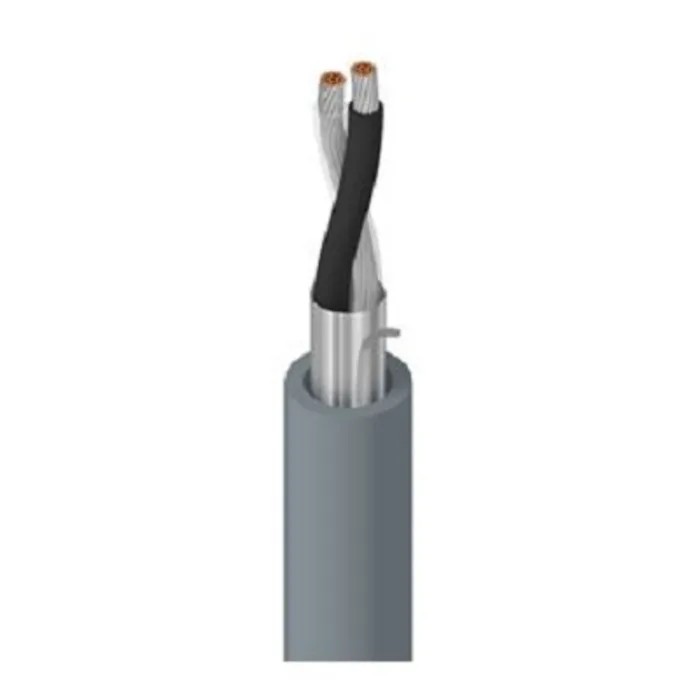

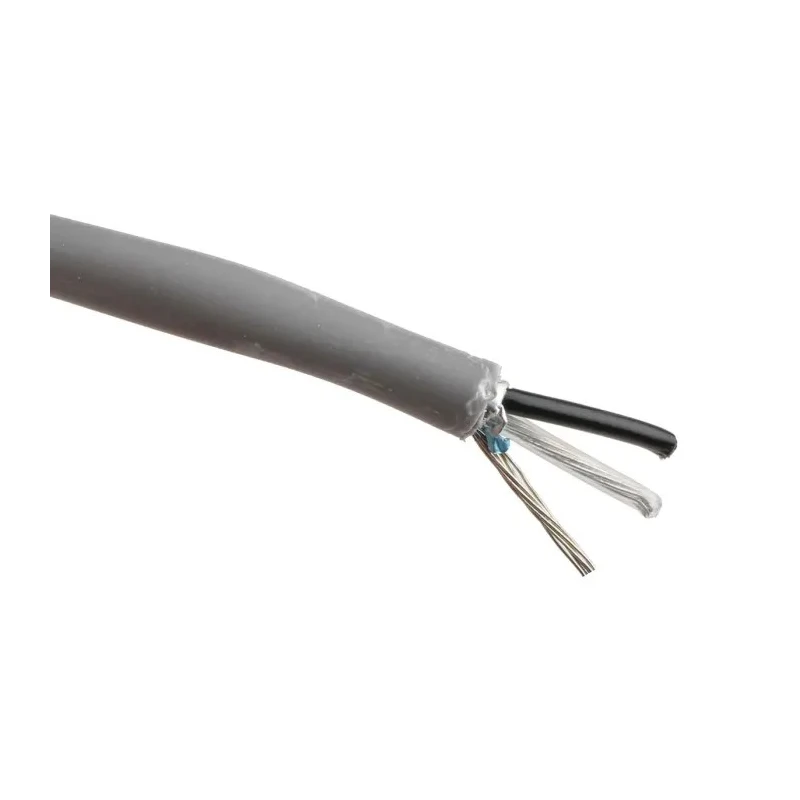

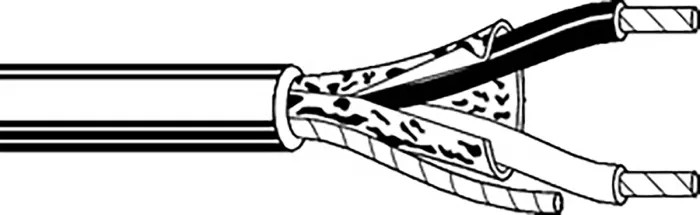

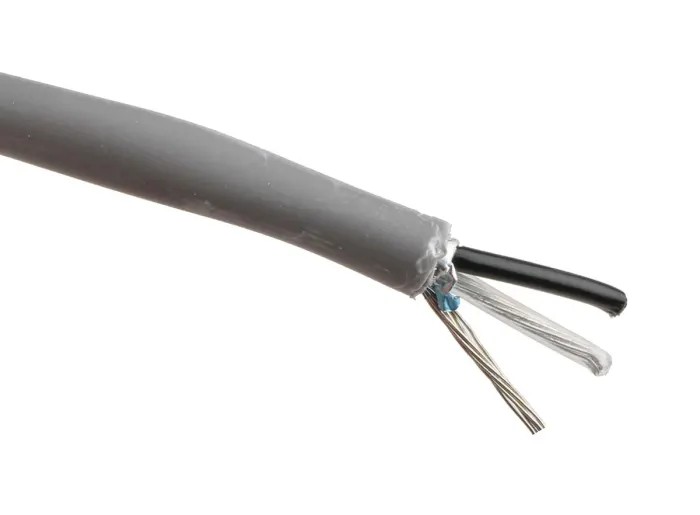

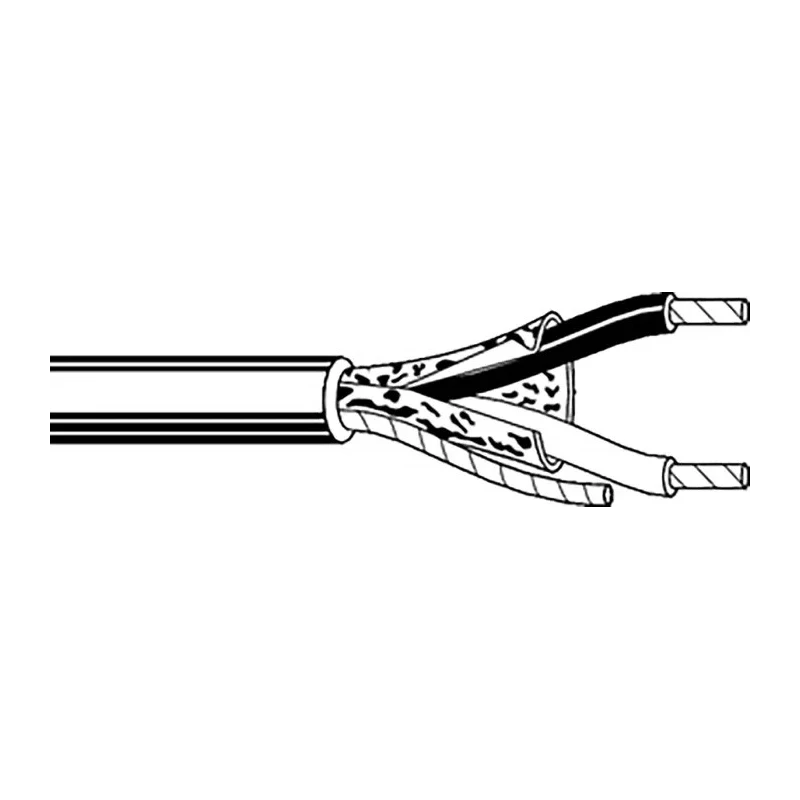

Belden 8761NH Series Data Cable 1 Pairs 2 Cores 0.35 mm² 305 m Silver Sheath Low Smoke Zero Halogen 8761NH.00305
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| CROSS SECTIONAL AREA | 0.35 mm² |
| Model | 8761NH.00305 |
| Cable Length | 305m |
| Series | 8761NH |
| Outside diameter | 4.9mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | Euroclass Dca-s2 d1 a1 |
| Jacket Colour | Silver |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 30AWG |
| Size of Strands | 30AWG |
| Number of Pairs | 1 |
| RS PRO Data Cable 2 Cores 100 m Grey Sheath Low Smoke Zero HalogenBrand | RS PRO |
Key Features
- Constructed with 7-strand copper conductors and 30 AWG size strands for efficient signal conduction.
- Features an F/UTP shielding with silver jacket offering protection against electromagnetic and radio frequency interference.
- Outer jacket made from Low Smoke Zero Halogen (LSZH) material for enhanced safety in fire conditions.
- Compact 4.9 mm outside diameter enabling installation in space-limited areas.
- Operates reliably between -20°C and 75°C, suitable for diverse environmental conditions.
- Complies with Euroclass Dca-s2 d1 a1 fire safety standards and IEC 332-3C for flame retardance.
- Ideal for use in electronic instrumentation, audio sound systems, and industrial data applications requiring long cable runs.
- Supplied on a 305-meter reel weighing approximately 6.8 kg for easy handling and storage.
Product Description
Belden 8761NH.00305 is a high-quality screened twisted-pair data cable designed for industrial and commercial use, offering superior performance in data transmission with exceptional shielding against EMI and RFI. The cable consists of a single pair (2 cores) of stranded copper conductors with 7 strands per core, each strand sized at 30 AWG to ensure flexibility and durability.
The cable features a foiled twisted pair configuration (F/UTP) with an additional silver-colored sheath made from Low Smoke Zero Halogen (LSZH) material, which significantly reduces toxic fume emissions in case of fire, enhancing facility and personnel safety.
With an outside diameter of 4.9 mm, the cable is compact and well-suited for installations where space is constrained. It supports a voltage rating of 300V and operates efficiently within the temperature range from -20°C to 75°C, making it reliable for use in challenging industrial environments.
Belden’s 8761NH series complies with European fire safety standards Euroclass Dca-s2 d1 a1 and IEC 332-3C flame retardant tests, ensuring the cable meets stringent safety requirements.
This 305-meter length cable reel weighs approximately 6.8 kg, facilitating easy handling and transport. It is widely used in electronic instrumentation, audio sound systems, and data communication applications demanding high fidelity and minimal signal loss over extended cable runs.
Constructed with stranded copper conductors and 7 strands per core, 30 AWG size. Foiled with unshielded twisted pairs (F/UTP) for EMI and RFI protection. Silver-colored outer LSZH jacket minimizes toxic fume emissions. Compact 4.9 mm diameter for space-sensitive installations.
Voltage rating of 300V suitable for various electrical applications. Operational temperature range from -20°C to 75°C for performance in diverse environments. Complies with Euroclass Dca-s2 d1 a1 and IEC 332-3C flame retardant standards.
305-meter reel length ideal for long cable runs and industrial setups. Weight approximately 6.8 kg for manageable handling and storage.
The Belden 8761NH.00305 data cable combines durable construction, advanced shielding, and safety features to meet the demanding requirements of industrial, laboratory, automation, and commercial communication systems. Explore more Data Cable solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Belden 8761NH.00305 data cable has a voltage rating of 300V, making it suitable for various electrical applications.
This cable operates reliably within a maximum temperature of 75°C, allowing it to function in diverse environmental conditions.
The cable is constructed with stranded copper conductors, which are designed for efficient signal conduction.
The outside diameter of this data cable is 4.9 mm, making it compact for installations in space-limited areas.
The Belden 8761NH.00305 features 2 cores, consisting of a single pair of conductors.
It operates effectively in temperatures ranging from -20°C to 75°C and complies with Euroclass Dca-s2 d1 a1 fire safety standards and IEC 332-3C for flame retardance.
This model is supplied on a 305-meter reel, which is ideal for long cable runs in various applications.
The cable has F/UTP shielding, which provides protection against electromagnetic and radio frequency interference.
The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, which reduces toxic fume emissions in case of fire, enhancing safety.
This data cable is ideal for use in electronic instrumentation, audio sound systems, and industrial data applications that require long cable runs.
Each core of the cable consists of 7 strands, with each strand sized at 30 AWG, ensuring flexibility and durability.
The cable complies with Euroclass Dca-s2 d1 a1 fire safety standards, ensuring it meets stringent safety requirements for flame retardance.
