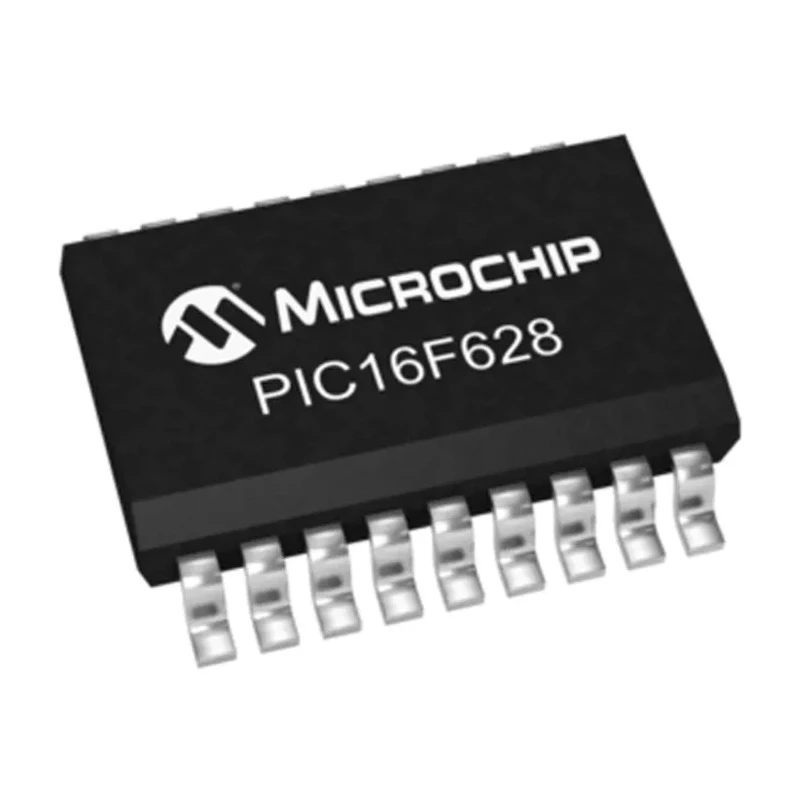

Microchip 8 bit PIC PIC16F Microcontroller 4 MHz 3.5kB FLASH 18-Pin SOIC PIC16F628-04/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.39mm |
| Length | 11.73mm |
| Model | PIC16F628-04/SO |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 224bit |
| Interface Type | USART |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Based on Microchips PIC architecture with a Mid-Range core for efficient processing.
- Provides 16 programmable I/O pins and a data bus width of 8-bit to support versatile interfacing.
- Includes 224 bits of RAM and supports USART communication protocol for serial data transfer.
- Operates within 3V to 5.5V supply voltage range and dissipates a maximum power of 800mW.
- Features 3 timers, 2 analog comparators, and an instruction set comprising 35 instructions.
- Designed with Power-On Reset, Watchdog Timer, and Brown-Out Reset for reliability in industrial environments.
- Compliant with RoHS standards, suitable for surface mount applications and harsh industrial temperature conditions from 0°C to 70°C.
Product Description
Microchip PIC16F628-04/SO is an 8-bit PIC microcontroller designed with Microchips PIC Mid-Range core architecture, operating at a maximum clock frequency of 4 MHz and featuring 3.5kB of FLASH program memory. It comes in an 18-Pin SOIC surface mount package, suited for compact industrial and electronic embedded applications.
This MCU integrates 16 programmable I/O pins and utilizes an 8-bit data bus width, enabling interfacing with a variety of peripherals. It includes 224 bits of RAM and supports USART interface, enhancing serial communication capabilities essential for automation, control systems, and embedded electronics.
The device runs on a supply voltage between 3V and 5.5V, with a maximum power dissipation of 800mW, making it energy efficient for continuous operation in industrial environments. Its built-in features such as Power-On Reset (POR), Watchdog Timer (WDT), and Brown-Out Reset (BOR) ensure system stability and data integrity during power fluctuations and resets.
The microcontroller comprises three timers, two analog comparators, and an instruction set optimized for RISC architecture with 35 instructions and an 8-level hardware stack, enhancing real-time performance. It is compliant with RoHS directives, assuring environmentally-friendly manufacturing standards.
Ideal for use in industrial automation, consumer electronics, and embedded system projects, the PIC16F628-04/SO enables precise control and efficient processing in a compact and reliable form factor.
Based on Microchips Mid-Range PIC core, combining efficient processing and flexibility. Features 3.5kB FLASH memory with 224 bits RAM for program and data storage. Equipped with USART interface for asynchronous serial communication.
Integrated power management and reset circuitry enhance system reliability. RoHS compliant and suitable for surface mount PCB assembly. Operating temperature from 0°C to 70°C supports varied industrial conditions. Offers 16 programmable input/output pins for versatile peripheral control.
Explore more Microchip Microcontrollers and related components in the Electronics & Electricals category at EnvMart for your industrial and laboratory automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory size of 3.5kB FLASH.
This microcontroller operates within a supply voltage range of 3V to 5.5V.
It has 16 programmable I/O pins for versatile interfacing.
This model supports a USART interface for serial communication.
The maximum power dissipation is 800mW.
The dimensions are 11.73mm in length, 7.59mm in width, and 2.39mm in height.
It operates within a temperature range of 0°C to 70°C.
This microcontroller integrates three timers.
It comes in an 18-Pin SOIC surface mount package.
Yes, it is compliant with RoHS standards.
The instruction set architecture is based on RISC with 35 instructions.
