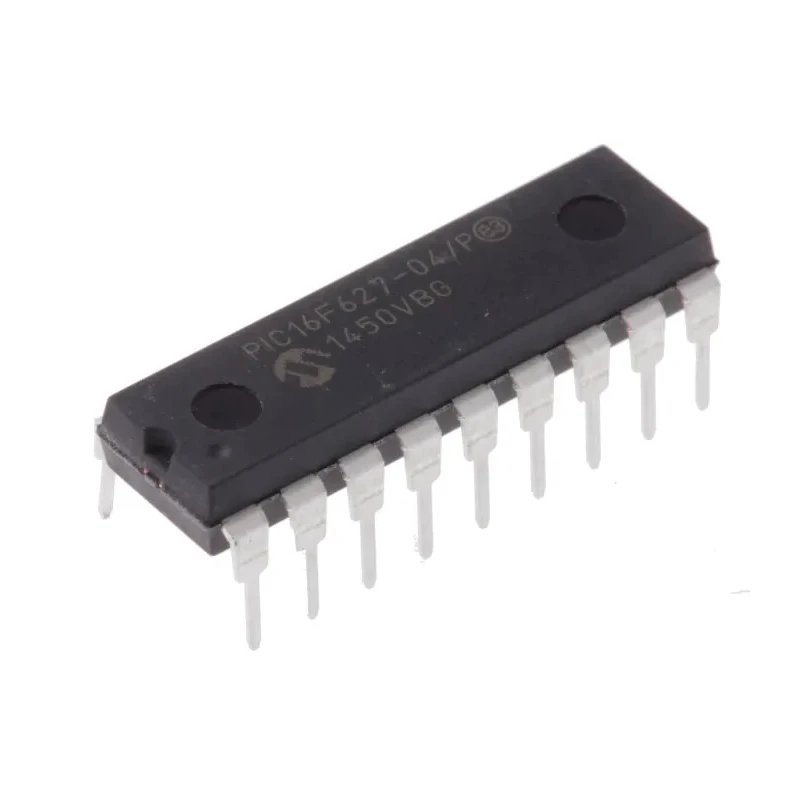

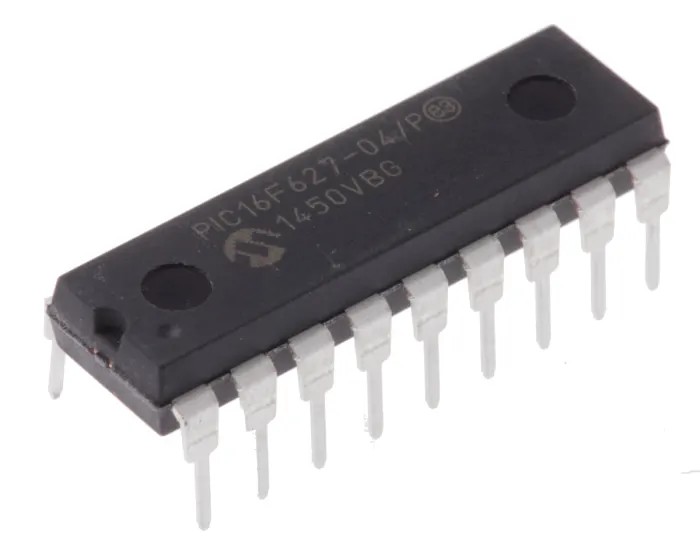

Microchip 8-bit PIC Microcontroller 4 MHz FLASH, 18-Pin PDIP PIC16F627-04/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F627-04/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 224bit |
| Interface Type | USART |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes 8-bit PIC architecture delivering up to 5 MIPS performance.
- Features 1.75 kB FLASH program memory and 224-bit RAM for versatile code storage.
- Operates at maximum clock frequency of 4 MHz with a supply voltage range from 3 V to 5.5 V.
- Includes 16 programmable I/O pins and multiple timers for precise control operations.
- Equipped with two analog comparators and USART interface supporting serial communication.
- Compact through-hole PDIP packaging with 18 pins, measuring 22.99 mm length and 6.6 mm width.
- Operating temperature range from 0°C to 70°C ensuring stability across environments.
- Consists of power management features like Power-On Reset, Brown-Out Reset, and Watchdog Timer for reliable operation.
Product Description
Microchip PIC16F627-04/P is an 8-bit microcontroller from the PIC16F series featuring Microchip's mid-range PIC architecture. It operates at a maximum clock speed of 4 MHz and uses FLASH program memory technology with a size of 1.75 kB, supported by 224-bit RAM. This MCU offers extensive control options through 16 programmable I/O pins and up to three timers for multitasking capabilities.
Designed in a compact 18-pin PDIP package measuring 22.99 mm by 6.6 mm by 3.68 mm, it supports through-hole mounting for easy integration in various PCB designs. Its operating voltage ranges between 3 V and 5.5 V, providing flexibility for a range of electronics projects and industrial equipment.
The microcontroller is equipped with analog comparators and a USART interface facilitating seamless communication in embedded system applications. It supports built-in power management features including Power-On Reset, Power-Up Timer, Brown-Out Reset, Oscillator Start-Up Timer, and an internal Watchdog Timer for fault tolerance and system reliability.
The device covers an ambient operating temperature from 0°C to 70°C, making it suitable for standard industrial and commercial conditions. It adheres to no specific standards or automotive certifications.
8-bit PIC architecture delivering up to 5 MIPS CPU speed. 1.75 kB FLASH program memory with 224-bit RAM size. 18-pin PDIP package supports through-hole mounting. Power management features including POR, BOR, and WDT ensure system stability.
Integrated USART for serial communication and two analog comparators. Maximum supply voltage 5.5V, minimum operating voltage 3V. Operating temperature range 0°C to 70°C for reliable industrial use. Compact dimensions facilitate easy PCB integration.
This microcontroller family is ideal for embedded control applications in industrial automation, consumer electronics, educational projects, and general microprocessor-based designs. Its robust architecture allows designers to develop efficient and stable systems with comprehensive peripheral support.
Explore EnvMart’s extensive range of Microchip Microcontrollers for precise and reliable embedded computing solutions.
