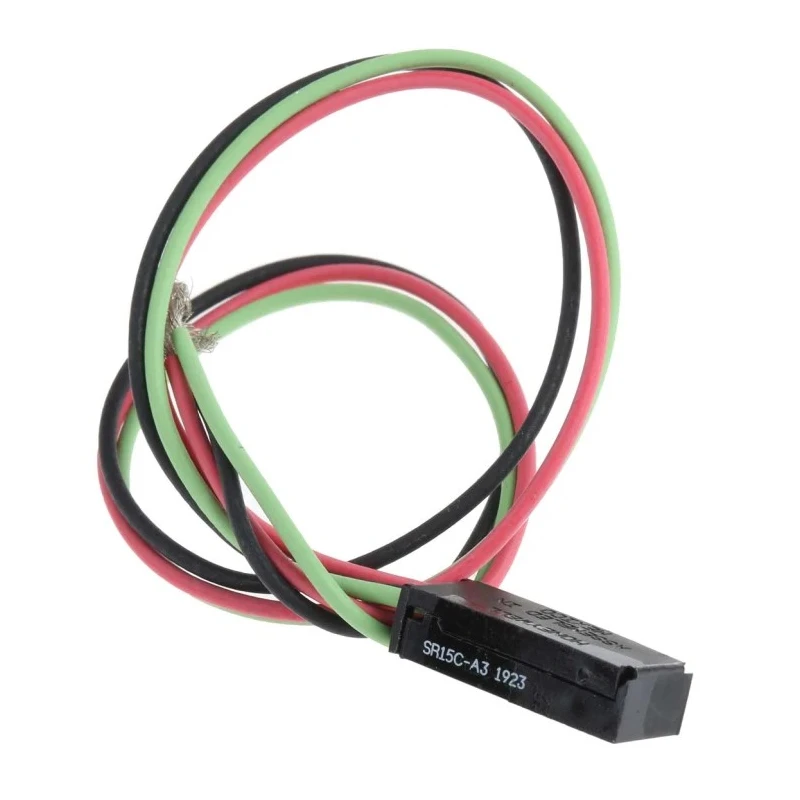

Honeywell Technologies Hall Effect Sensor Snap-in Digital Current Sinking Open Collector Output Block Body 30V SR15C-A3

Honeywell SR15C-A3 Hall Effect Sensor Snap-in is a precision sensor designed for non-contact magnetic switching in industrial and automation environments. It features a block body style with snap-in mounting, enabling easy installation through-panel assemblies. This device operates on a single supply voltage up to 30V DC and produces a digital current sinking (open collector) output for seamless interfacing with logic and control circuits.

Constructed with a plastic housing, the sensor offers electrical insulation while maintaining a lightweight form factor. Its wide operating temperature range spanning from -40°C to 150°C makes it suitable for demanding thermal environments common in manufacturing, automotive, and industrial settings.

The sensor's wire lead terminals provide flexible wiring options for integration into complex wiring looms where soldered or crimped connections are necessary. The compact dimensions including a width of 20.3mm, length of 7.6mm, and depth of 5.1mm facilitate installation where limited space is available.

Applications for the SR15C-A3 sensor include motor-control assembly position detection, proximity sensing on production lines, vehicular wheel-speed or rotor-position monitoring, and magnetic limit switching in panel-mounted devices. Its 20mA maximum switching current is suited to directly activate low-current loads without additional amplification.

Compact snap-in mounting ensures straightforward assembly integration. Operates at a maximum supply voltage of 30V DC for versatile system compatibility. Switching current rated at 20mA enables direct drive of low-current loads.

Wide operating temperature range from -40°C to 150°C suits harsh thermal conditions. Plastic housing offers electrical insulation and reduced weight for durable performance. Employs wire lead terminals allowing flexible wiring and connection options.

Block body style with shallow depth facilitates dense packing in panel-mounted applications. Ideal for position detection, proximity sensing, and rotor or wheel-speed measurements. Manufactured in Mexico ensuring consistent quality standards.

This sensor exemplifies reliability and ease of integration for electronic and automation system designers. Browse more Honeywell Hall Effect Sensors and magnetic sensing solutions on EnvMart for comprehensive industrial sensor offerings.
