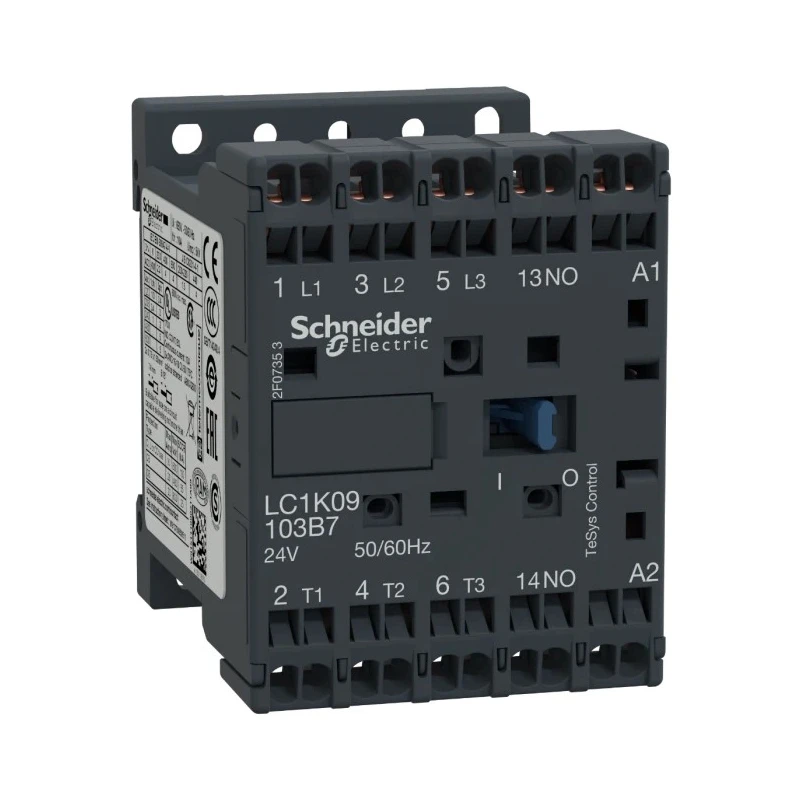

Schneider Electric LC1K Contactor 3-Pole 24V AC Coil 9A 4kW 690V AC 3 NO LC1K09103B7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LC1K09103B7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Supports a contact current of 9A and contact voltage of 690V AC.
- Power rating of 4kW with a 24V AC coil voltage.
- Normal state configuration is 3 NO with 1 NO auxiliary contact.
- Mounting on DIN rail for easy installation.
- Operates between -25°C and 50°C temperature range.
- Spring terminals have safety stops to prevent wiring damage.
- Compliant with CCC, CSA, EAC, IEC, RoHS, and UL standards.
- Manufactured in France with sustainability focus.
Product Description
Schneider Electric LC1K09103B7 Contactor is a robust 3-pole contactor featuring a 24V AC coil with a power rating of 4kW and a contact current of 9A, designed primarily for motor control and resistive load applications.
It features a normal state configuration of 3 NO contacts and includes an additional 1 NO auxiliary contact equipped with cage clamp terminals, ensuring consistent connection tightness and secure wiring. The device is mounted on a DIN rail, facilitating straightforward installation in control panels.
Operational temperature ranges from -25°C to 50°C, enabling reliable performance in diverse industrial and manufacturing environments including HVAC systems, water treatment, and industrial automation.
The contactor's compact dimensions of 58mm length, 45mm width, and 57mm depth save valuable panel space while maintaining robust construction. Spring terminals include safety stops preventing damage during wiring and support resistance against vibration and temperature cycling.
Certification and approvals from CCC, CSA, EAC, IEC, RoHS, and UL ensure compliance with global standards, assuring quality and safety for users. Manufactured in France, this product aligns with sustainability goals, being designed for disassembly to support environmental responsibility.
The contactor supports a 24V AC coil voltage with a switching voltage of 440V AC. It has a coil consumption of 4.5VA hold-in and 30VA inrush current. The device is ideal for use in conjunction with GV2-M motor circuit breakers.
Its multi-standard compliance supports seamless integration into various industrial control systems. Spring terminals ensure quick, safe, and damage-free wiring.
This Schneider Electric LC1K09103B7 contactor is an essential component in electrical automation, industrial manufacturing, and motor control applications, providing reliable switching performance and operational safety.
Explore further industrial electrical components and Schneider Electric products in EnvMart’s comprehensive catalog.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1K contactor has a power rating of 4kW.
It supports a contact current of 9A.
This model operates with a coil voltage of 24V AC.
The maximum contact voltage is 690V AC.
The operational temperature range is from -25°C to 50°C.
It is designed for mounting on a DIN rail, facilitating easy installation.
The normal state configuration is 3 normally open (NO) contacts, with an additional 1 NO auxiliary contact.
It is suitable for motor control and resistive load applications.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
The spring terminals include safety stops to prevent wiring damage.
It complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
This contactor is manufactured in France.
