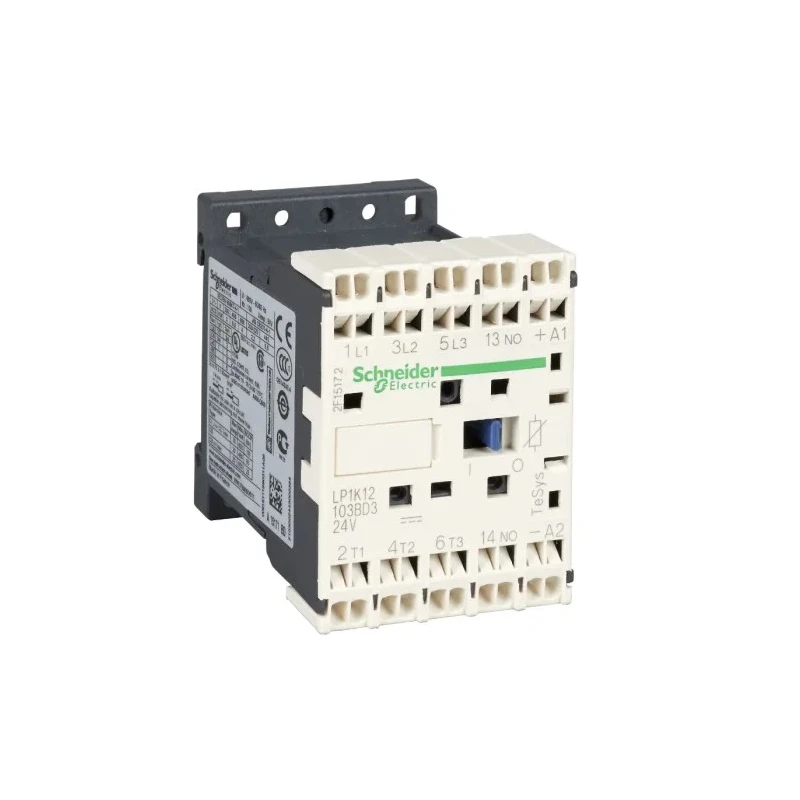

Schneider Electric LP1K Contactor, 24V DC Coil, 3-Pole, 12 A, 5.5 kW, 3 NO, 690V AC LP1K12103BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LP1K12103BD |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LP1K |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Operates at 24V DC coil voltage for reliable switching.
- Features a 3-pole configuration with 3 normally open contacts for effective circuit control.
- Supports contact voltage up to 690V AC and current rating of 12A.
- Equipped with one auxiliary contact configured as 1 NO for additional control functions.
- Designed for DIN rail mounting with cage clamp terminal type to ensure secure connections.
- Suitable for motor control and resistive load applications with a power rating of 5.5 kW.
- Compact dimensions with length 58mm, width 45mm, and depth 57mm.
- Rated for operating temperatures between -25°C and 50°C for versatile environmental use.
Product Description
Schneider Electric LP1K12103BD Contactor is a high-quality industrial-grade switching device featuring a 24V DC coil and a 3-pole design. It provides a current rating of 12A with a power capacity of 5.5 kW, making it ideal for motor control and resistive load switching in industrial automation and electrical control systems. The contactor supports a contact voltage of up to 690V AC with a configuration of 3 normally open (NO) contacts that ensure safe and efficient power distribution.
This contactor is constructed for easy DIN rail mounting with cage clamp terminals that provide consistent connection tightness and a locking mechanism to prevent damage from excessive wiring force. A single auxiliary contact (1 NO) expands control options, enabling additional circuit functionalities. The robust design allows operation over a wide temperature range from -25°C to 50°C, ensuring reliable performance in various industrial and manufacturing environments.
Compliant with international standards including CCC, CSA, EAC, IEC, RoHS, and UL, the Schneider Electric LP1K12103BD meets stringent quality and safety requirements. It incorporates environmental stewardship principles with its design for disassembly, making it a better world product aimed at reducing environmental impact.
The compact dimensions of 58mm length, 45mm width, and 57mm depth facilitate installation in tight electrical panels and control cabinets. Its applications include motor control circuits, resistive load switching, and operation alongside GV2-M motor circuit breakers for enhanced motor protection.
This contactor is widely used in industrial automation, manufacturing processes, HVAC systems, and electrical distribution panels requiring reliable switching under varying load conditions. Schneider Electric’s LP1K12103BD is engineered to deliver durability, precise performance, and ease of maintenance, supporting continuous industrial operations.
Operates at 24V DC coil voltage for reliable switching. Features a 3-pole configuration with 3 normally open contacts for effective circuit control. Supports contact voltage up to 690V AC and contact current of 12A. Equipped with one auxiliary contact configured as 1 NO for additional control functions.
Designed for DIN rail mounting with cage clamp terminal type to ensure secure connections. Suitable for motor control and resistive load applications with a rated power of 5.5 kW. Compact dimensions: 58mm length, 45mm width, 57mm depth.
Operating temperature range: -25°C to 50°C. Conforms to CCC, CSA, EAC, IEC, RoHS, and UL standards. Manufactured in France with design for disassembly for sustainability. Explore the wide range of Schneider Electric automation and control gear products available at EnvMart for your electrical and industrial applications.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V DC.
It supports a maximum contact voltage of 690V AC.
This model has a current rating of 12A.
The power rating of the LP1K12103BD is 5.5 kW.
It features a 3-pole configuration with 3 normally open contacts.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
It is equipped with cage clamp terminals for secure connections.
The operational temperature range is from -25°C to 50°C.
This model is designed for DIN rail mounting.
Yes, it includes one auxiliary contact configured as 1 normally open (1 NO).
It is suitable for motor control and resistive load applications.
This contactor complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
