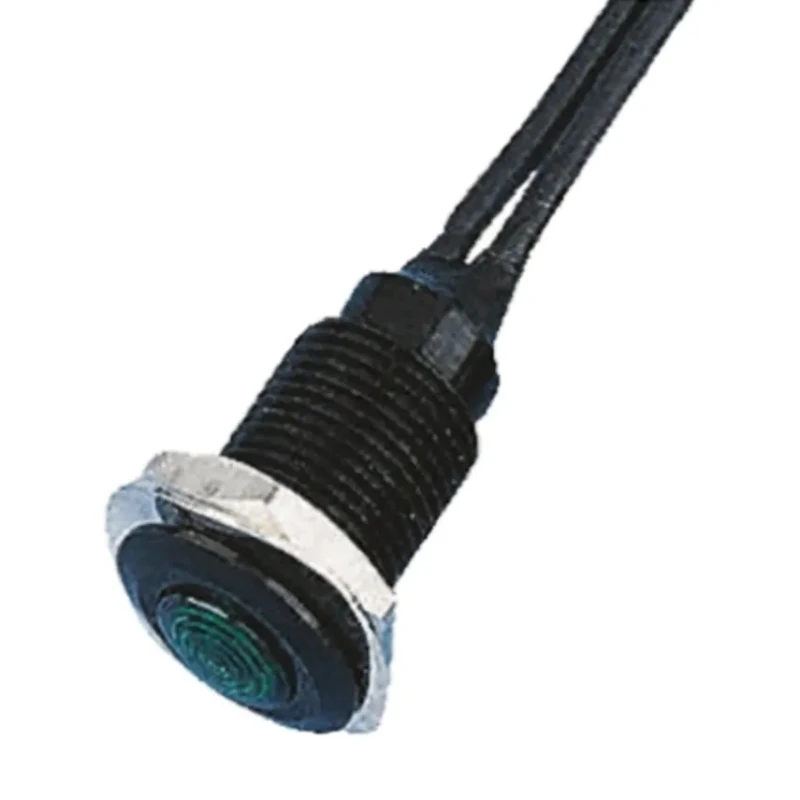

Oxley Green LED Panel Mount Indicator 10.2 mm Mount Hole, Flying Lead Termination, IP66, 5V OXL/CLH/100/FL30/GN

Oxley OXL/CLH/100/FL30/GN Green LED Panel Mount Indicator is engineered for reliable visual signalling in industrial, laboratory, and commercial electronic applications. Featuring a single colour green LED with a mounting hole diameter of 10.2 mm, this indicator is designed for panel mounting with flying lead termination for straightforward electrical connection.

The indicator is sealed to IP66 standards, offering robust protection against dust ingress and powerful water jets, making it ideal for use in corrosive and challenging environments. It comes with a polycarbonate lens finish that enhances durability and sunlight viewability for outdoor or high ambient light settings.

The housing is constructed with matt black nickel plated aluminium, providing corrosion resistance and mechanical strength. The device supports a maximum forward current of 20mA and a maximum supply voltage of 5V, suitable for use with AC or DC input voltage types. Its viewing angle options of 80° or 100° allow for flexible installation and optimal visibility from different vantage points.

This Panel Mount Indicator offers shock and vibration resistance, ensuring stable operation in industrial machinery and process control panels. The life expectancy exceeds 90,000 hours, reducing maintenance and replacement frequency.

Installation is simplified with a mounting hole size of 10.15 mm diameter and an 18.7 mm length of the indicator body, suitable for a wide variety of panel thicknesses and configurations. Note that suitable series resistors or current limiting devices should be used to protect the LED during operation.

This indicator uses a green LED light with excellent visibility. The panel mount design includes flying lead termination for easy installation. It has an IP66 rating, making it dust-tight and protected against powerful water jets.

Operates at maximum supply voltage of 5V with a maximum forward current of 20mA. The device includes a polycarbonate lens finish and a matt black nickel aluminium housing. It offers a viewing angle of 80° or 100° for flexible visibility options.

The product has a life expectancy of 90,000 hours for long-term use. Resistant to shock and vibration suitable for harsh industrial environments. Mounting hole size is precisely 10.15 mm diameter for compatibility. Length of the indicator is 18.7 mm for compact mounting requirements.

This Oxley panel mount LED indicator is suitable for a wide range of industrial automation, electronic equipment, manufacturing machinery, HVAC systems, and control panels where reliable LED indication is required. It provides a visible, durable, and high-quality signal status solution that complies with RoHS and IP66 standards.
