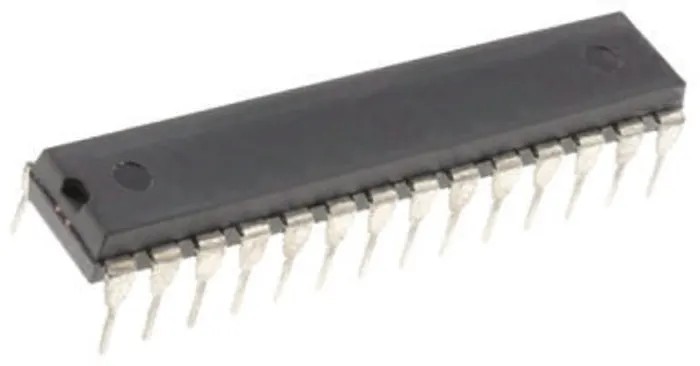

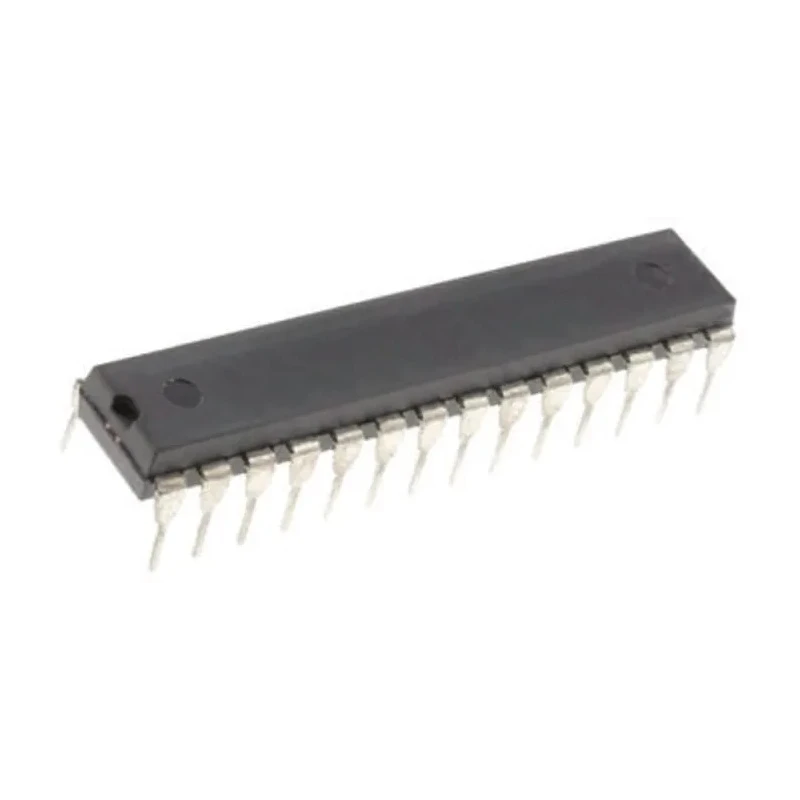

Microchip 8-bit PIC Microcontroller 4 MHz EPROM 28-Pin SPDIP PIC16C62B-04/SP

Microchip PIC16C62B-04/SP is an 8-bit microcontroller built on Microchip's PIC architecture, featuring a 4 MHz maximum clock frequency and 3.5 kB EPROM program memory with 128-bit RAM. It is housed in a 28-pin SPDIP package designed for through-hole mounting, making it ideal for embedded systems in industrial, automotive, and general electronics applications.

The device includes an 8-level hardware stack supporting 35 14-bit instructions, enabling up to 5 MIPS performance. It incorporates three timers: one 16-bit and two 8-bit, along with a synchronous serial port (SSP) compatible with SPI and I2C protocols. Additional features include a watchdog timer (WDT), power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), brown-out reset (BOR), and in-circuit serial programming (ICSP).

Supporting operating voltages of 4 to 5.5 V, it is suitable for various power conditions, with power dissipation of up to 1 W. The operating temperature range is from 0°C to 70°C, making it applicable for standard industrial environments. The microcontroller complies with the ISO/TS 16949 automotive standard, assuring quality and reliability for automotive applications.

This microcontroller is widely employed in embedded control systems, consumer electronics, automotive controls, and industrial automation where a compact, low-power 8-bit MCU is required. This model continues to be favored for legacy design support despite newer Flash-based variants being available.

Built on an 8-bit PIC architecture ideal for embedded applications. Operates with a maximum clock frequency of 4 MHz providing efficient processing. Equipped with 3.5 kB EPROM program memory and 128 bits of RAM for data handling.

Comes in a 28-pin SPDIP package designed for through-hole mounting. Supports a supply voltage range from 4 V to 5.5 V for versatile power requirements. Offers three timers, including one 16-bit and two 8-bit timers for precise timing control.

Includes a synchronous serial port with SPI and I2C support for communication. Features in-circuit serial programming (ICSP) capability for convenient development. Operating temperature range from 0°C to 70°C suitable for standard industrial environments.

Complies with ISO/TS 16949 automotive standard for quality assurance.

For additional technical data, users are advised to consult Microchip’s datasheets and technical resources for implementation guidance in specialized applications. Explore the Electronics & Electricals section at EnvMart for complementary Microcontroller products and related components.
