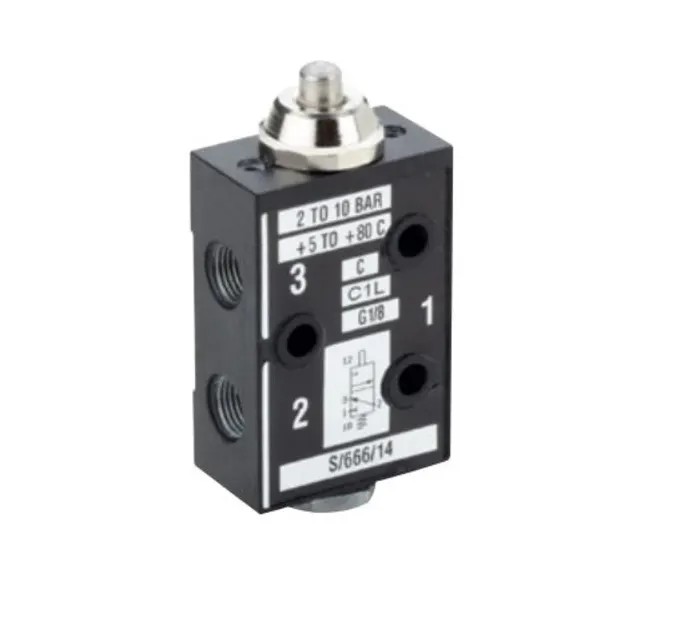

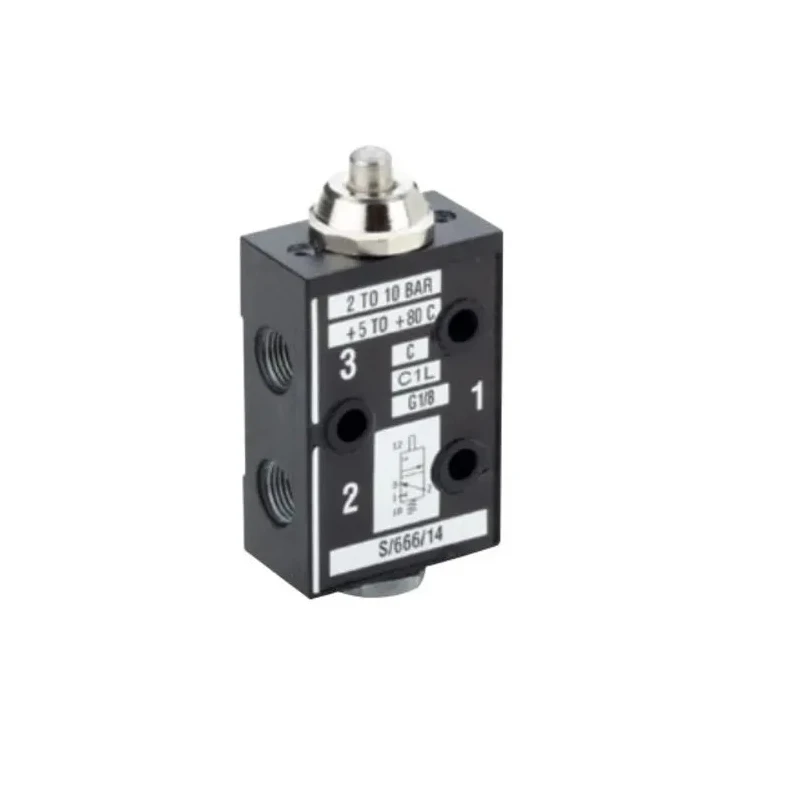

Norgren Pneumatic Manual Control Valve 10 bar Die Cast Zinc Body, G 1/8 Port, 3/2 Function S/666/14

Free Delivery in India | Lowest Global Shipping Charges

Norgren Pneumatic Manual Control Valve 10 bar Die Cast Zinc Body, G 1/8 Port, 3/2 Function S/666/14

Name: Norgren Pneumatic Manual Control Valve 10 bar Die Cast Zinc Body, G 1/8 Port, 3/2 Function S/666/14
Brand: NORGREN
SKU: 326801
Price: 666.81 USD
Availability: InStock



Category Pneumatic Manual Control Valve Brand NORGREN Condition New

Specifications

Country of Origin	Czech Republic
Brand	Norgren
Body Material	Die Cast Zinc
Maximum Operating Pressure	10 bar

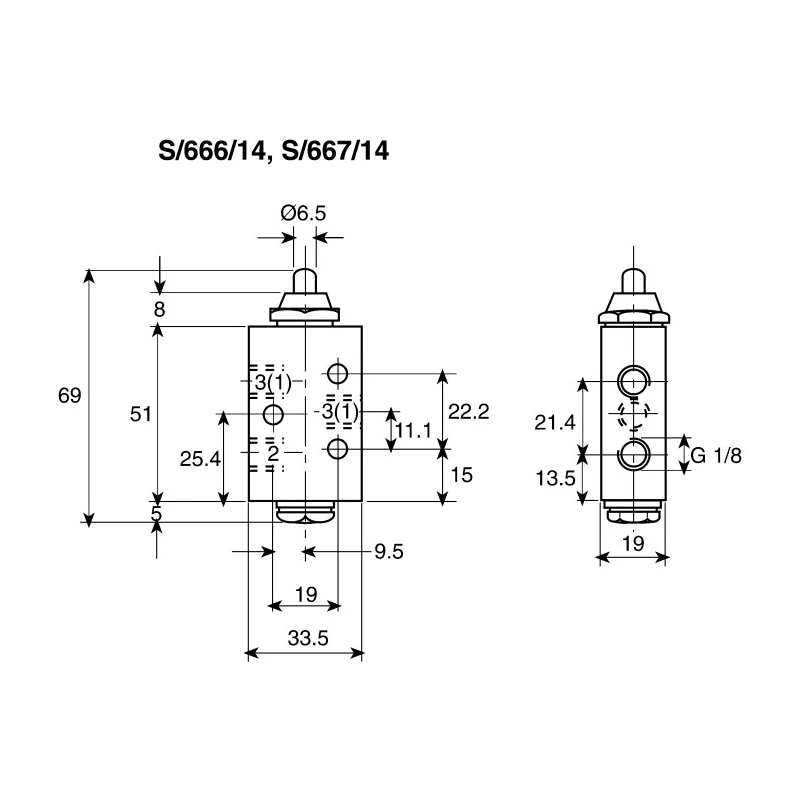

Height	69mm
Length	33.5mm
Model	S/666/14
Width	19mm
Series	S666
Number Of Ports	3
Maximum Operating Temperature	+80°C
Thread Size	1/8 in
Port Size	G 1/8
Minimum Operating Temperature	-20°C
Maximum Flow Rate	197L/min
Control Mechanism	Plunger
Connection Thread Standard	G
Valve Function	3/2

Key Features

This valve features a plunger control mechanism for manual operation.
The G 1/8 port size with G connection thread standard simplifies mounting in compressed air systems.
A maximum flow rate of 197 L/min supports high-flow pneumatic applications.
The valve's 3/2 function controls flow through three ports and two positions.
It operates reliably across temperatures from -20°C to +80°C for harsh industrial environments.
Die cast zinc body provides corrosion resistance and impact protection.
Compact dimensions with 69mm height and 33.5mm length ensure space efficiency.
The built-in spring return automatically resets the valve after actuation.

Product Description

Norgren S/666/14 Pneumatic Manual Control Valve is a manually operated pneumatic valve designed to provide reliable flow control in compressed air and fluid power systems. Featuring a plunger control mechanism and robust die cast zinc alloy body, this valve withstands mechanical impacts and corrosion in demanding industrial settings.

The valve supports a maximum operating pressure of 10 bar and a high flow rate of 197 L/min, making it ideal for use in systems requiring steady and efficient airflow management. Its compact dimensions of 69mm height, 33.5mm length, and 19mm width allow for easy integration into existing pneumatic assemblies.

Equipped with a G 1/8 port size and G-standard connection threads, installation is straightforward. The valve performs a 3/2 function, controlling flow through three ports and two positions, which enables versatile flow path configurations. After manual actuation by the plunger, a built-in spring return resets the valve to default position without additional effort.

This valve operates effectively over a wide temperature range from -20°C to +80°C and features NBR seals resistant to solvents and chemicals, ensuring durability in contaminated or harsh environments.

Applications include conveyor systems, material handling equipment, bottling plants, and industrial kitchens, where reliable pneumatic flow control is critical. This pneumatic manual control valve uses a plunger mechanism for precise manual actuation.

Its die cast zinc alloy body offers excellent strength and corrosion resistance. The valve supports a maximum pressure rating of 10 bar and a flow rate up to 197 L/min. The 3/2 valve function provides control across three ports and two positions.

Compact design fits into restricted spaces, facilitating easy installation in pneumatic systems. Wide operating temperature range (-20°C to +80°C) enhances versatility. Spring return mechanism automatically resets valve position post-operation.

Compatible with G 1/8 standardized threaded ports for secure connections. Ideal for industrial applications such as conveyors, bottling, and material handling. Explore our comprehensive range of Pneumatic Manual Control Valves for industrial pneumatic and fluid power system solutions at EnvMart.
