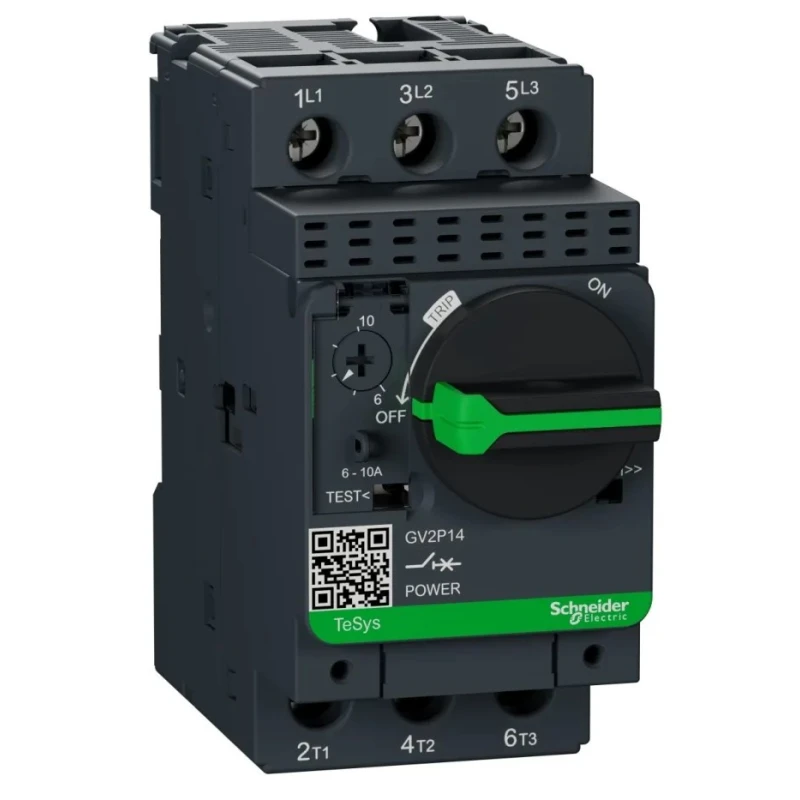

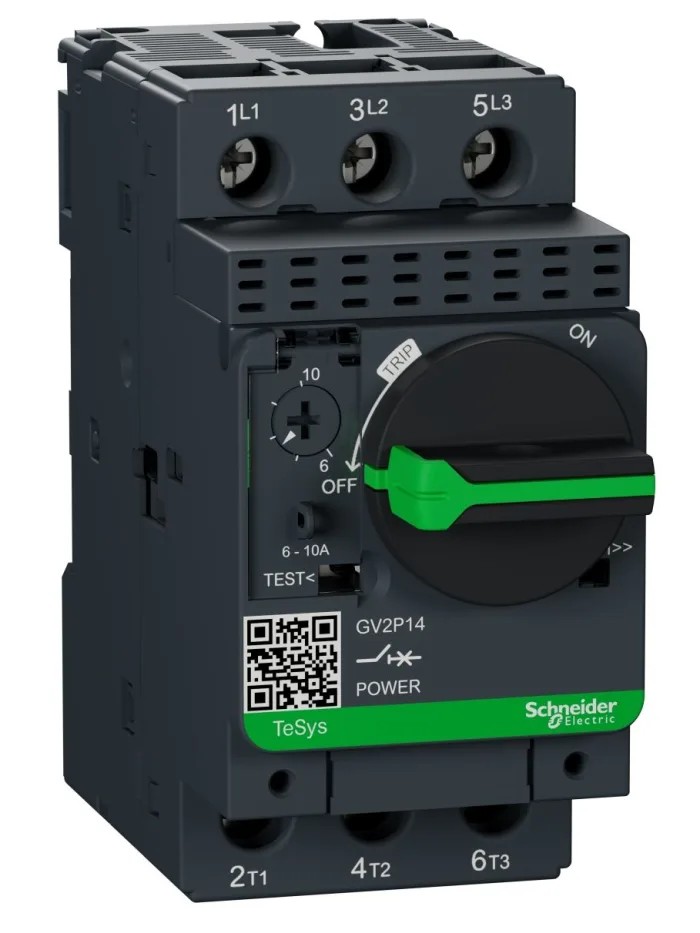

Schneider Electric Motor Protection Circuit Breaker 10A, 6A, Thermal Magnetic, 690V AC, IP20, 3 Poles GV2P14

Schneider Electric GV2P14 motor protection circuit breaker is engineered to safeguard motors in industrial and commercial applications by providing reliable protection against overloads and short circuits. Featuring thermal magnetic trip technology, it accurately detects motor faults to prevent damage and ensure operational continuity.

Designed for mounting on 35mm symmetrical DIN rails or panel installation, its rotary handle enables easy manual control and operation. The device supports AC power networks and offers a wide motor power compatibility, suitable for motors up to 5.5kW at 690V AC, making it versatile for various mechanical and automation systems.

With a compact form factor - measuring 89 mm in length, 44.5 mm in width, and 97 mm in depth - and an IP20 protection rating, this motor protection circuit breaker is built to withstand industrial conditions within operating temperatures from -20°C to 80°C. Its high breaking capacity of 100kA ensures exceptional safety during short circuit events.

The GV2P14 series complies with stringent international standards including EN/IEC 60947-2 and UL, reflecting its quality and reliability in motor protection. Common applications include motor safety in industrial automation, HVAC systems, and electrical panels, where dependable motor circuit protection is critical.

The thermal magnetic trip unit offers precise overload and short circuit protection. Designed for use in AC power systems with category A utilization. Easy mounting on 35mm symmetrical DIN rails and panels. Robust rotary handle ensures convenient control and operation.

Compatible with motors up to 5.5kW at 690V AC. High breaking capacity of up to 100kA for safety against short circuits. Compact dimensions: 89mm length, 44.5mm width, and 97mm depth. IP20 rated enclosure suitable for industrial environments.

Operates reliably between -20°C and 80°C temperature range. Conforms to multiple international standards including IEC 60947-2 and UL.

EnvMart recommends this reliable Schneider Electric GV2P14 Motor Protection Circuit Breaker for users in industrial automation, manufacturing plants, HVAC, and other commercial electrical motor protection requirements. Explore our full range of motor circuit protection devices and accessories to find the best solution for your application.
