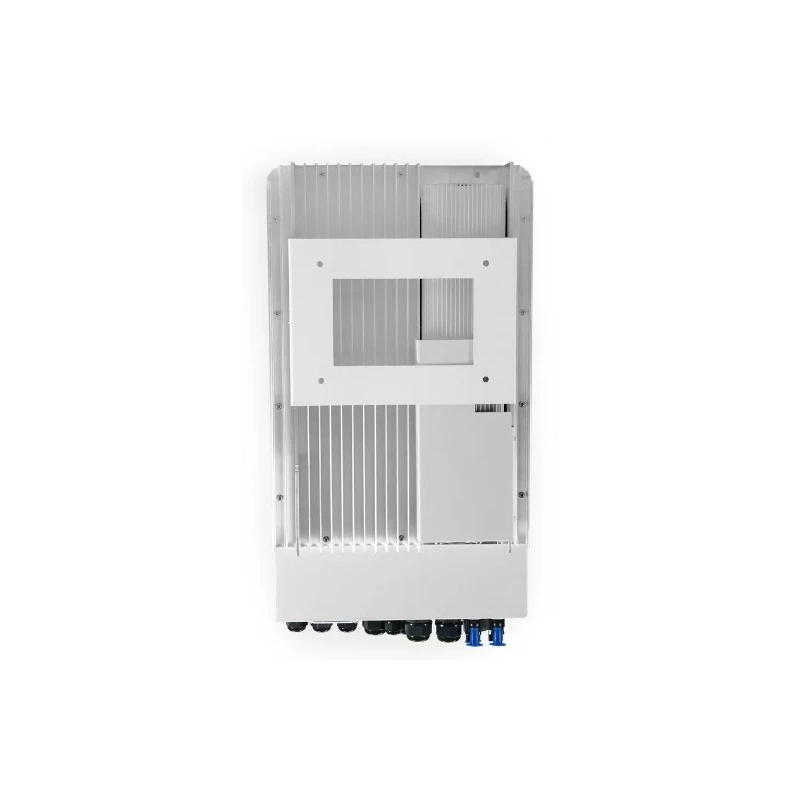

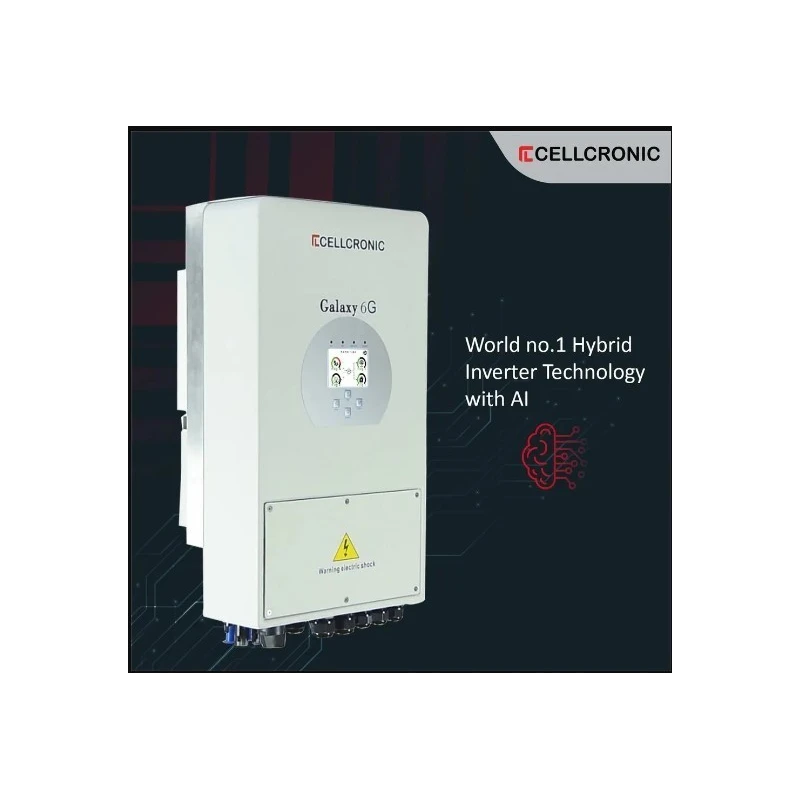

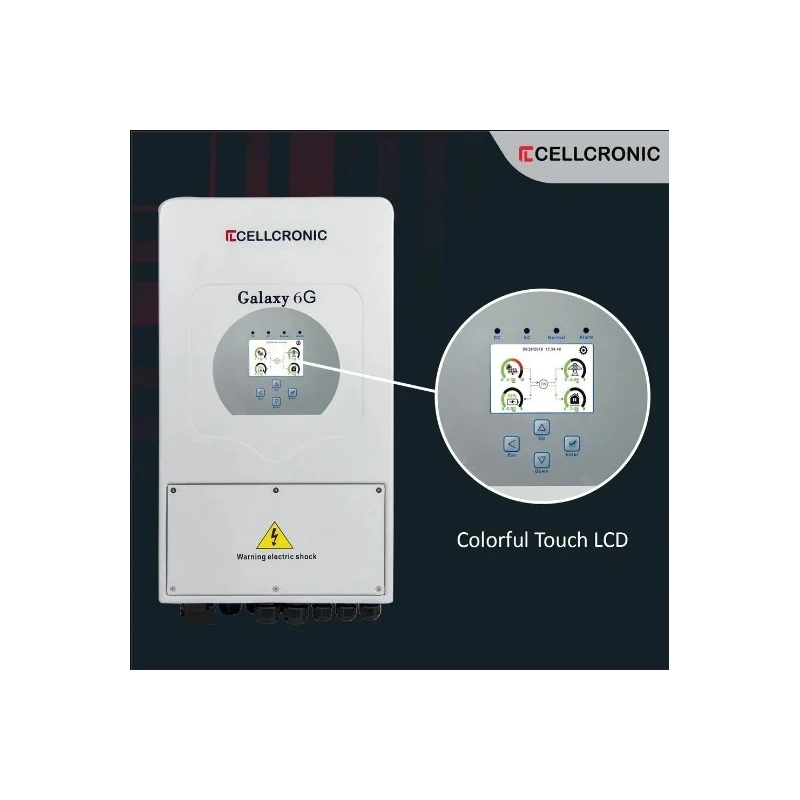

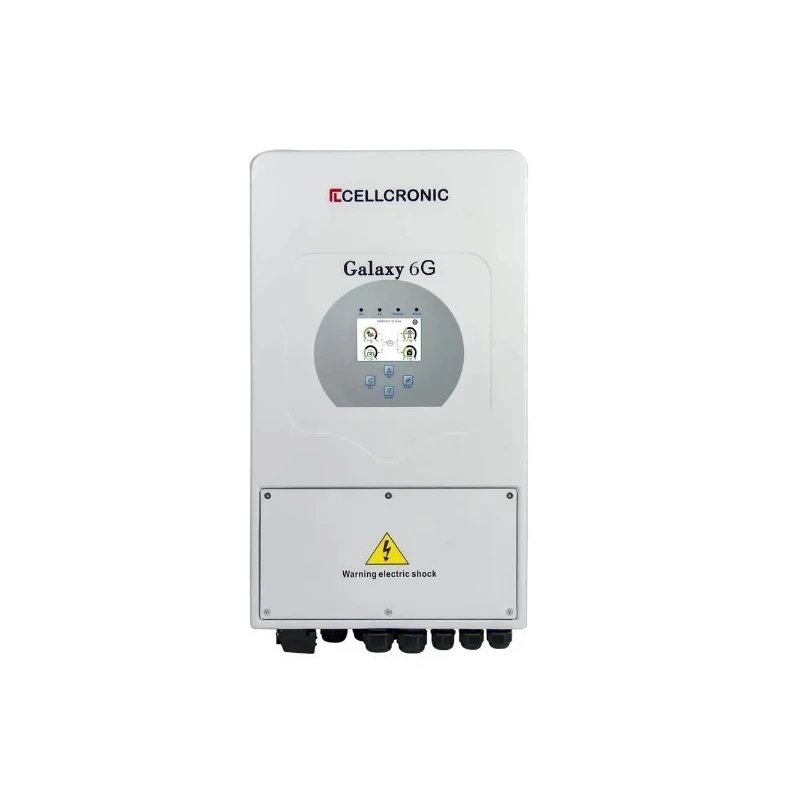

Cellcronic Single Phase Galaxy 6G 5kva/ 48V On-Grid Hybrid Solar Inverter
Specifications
| Warranty | 5 years |
|---|---|
| Size | 580Wx330Hx208D |
| Brand | Cellcronic |
| Battery type | Lithium-ion/Ladeacide |
| Noise | Less Than 30 db |
| Model | Galaxy 6G 5kW-48v EU |
| Minimum Order Quantity | 1 |
| Weight | 20.5kg |
| Battery Voltage (V) | 40~60V Max. |
| Protection Degree | IP65 |
| Power Factor | 0.8 Leading To 0.8 Lagging |
| Start-Up Voltage (V) | 150V PV |
| AC Current | 25A |
| Grid Type | Single Phase |
| MPPT Range | 125~425V |
| MPPT Efficiency | 0.999 |
| Charging Current | 120A |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy For Li-lon Battery | Self-Adaption To BMS |
| Max. DC Input Power | 6500W |
| PV lnput Voltage (V) | 370V (100V-500V) |
| No. of MPPT Trackers | 2 |
| No. of Strings Per MPPT Tracker | 1+1 |
| Rated AC Output And UPS Power | 5000W |
| AC Output Rated Current | 21.7A Max. |
| Full Load DC Volfage Range | 240~425V |
| Output Frequency And Voltage (V) | 50/60Hz|220/230/240Vac (Single Phase) |
| Max. Efficiency | 0.976 |
| lnput Current | 12.5A+12.5A |
| Euro Efficiency | 0.965 |
| Installation Style | Well-Mounted |
| Peak Power (Off Grid) | 2 Times Of Rated Power| 10S |
| Max. Continuous AC Passthrough | 35A |
| Cooling Smart | Cooling |
Key Features
- Pure sine wave output
- 5000W/2 Wide MPPT (120~450vdc) charge controller.
- Self-consumption and Feed-in to the grid.
- Work with or without a battery.
- User-adjustable charging current and voltage.
- Monitoring software for real-time.
Product Description
Galaxy 6G is a 6th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (140~800vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
- Parallel operation of up to 16 units.
- Work with or without a net meter facility.
- Programmable multiple operation modes.
- Grid-tie, off-grid, and grid-tie with backup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated AC output power is 5000W.
The maximum DC input power is 6500W.
The MPPT voltage range is 125~425V.
It has 2 MPPT trackers.
The maximum efficiency is 0.976, and the Euro efficiency is 0.965.
The dimensions are 580mm in width, 330mm in height, and 208mm in depth.
It is compatible with Lithium-ion and lead-acid batteries.
The weight is 20.5kg.
The start-up voltage is 150V PV.
The protection degree is IP65.
Up to 16 units can be connected in parallel for larger operations.
The noise level is less than 30 dB.
