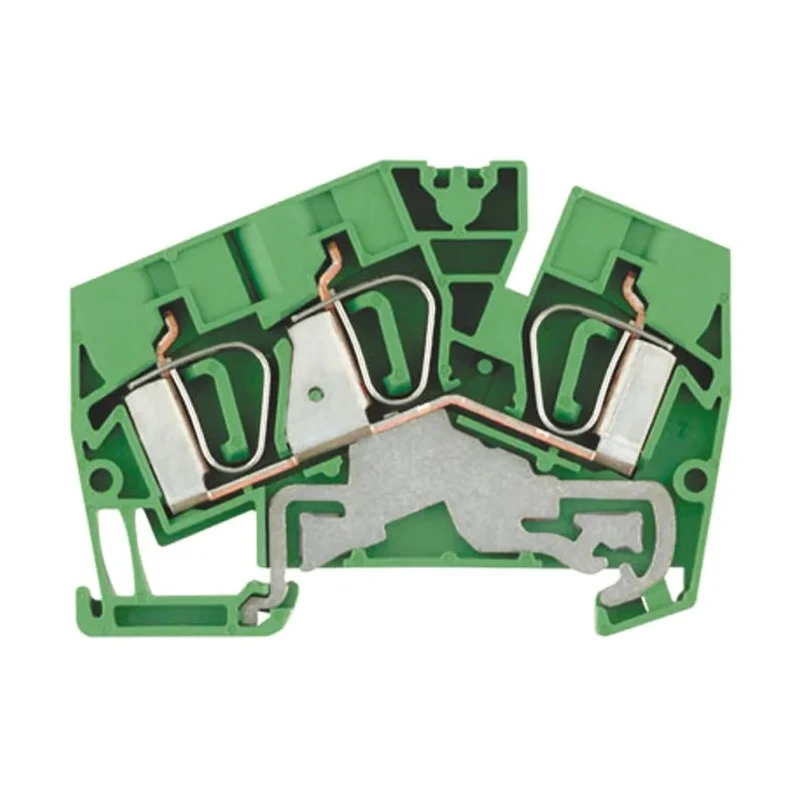

Weidmüller Z Series PE Terminal Clamp 800V, 720A, Yellow Green, 6mm², 1-Level 1771360000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller Z Series PE Terminal Clamp 800V, 720A, Yellow Green, 6mm², 1-Level 1771360000

Name: Weidmüller Z Series PE Terminal Clamp 800V, 720A, Yellow Green, 6mm², 1-Level 1771360000
Brand: Weidmuller
SKU: 324938
Price: 13.75 USD
Availability: InStock



Category Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Czech Republic
Voltage	800V
Brand	Weidmüller
Colour	Yellow, Green
Series	Z
Termination Type	Clamp
Maximum Operating Temperature	120°C
Number of Levels	1
Minimum Operating Temperature	-50°C
Pitch	8.1mm
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	8AWG
Cable CSA	6mm²
Terminal Block Current	720A

Key Features

Tension clamp technology offers a universal contact system compatible with common conductor types.
Designed for 6mm² cable cross-sectional area ensuring robust connectivity.
Rated for 720A current capacity for demanding electrical applications.
Features a single-level connection with clamp termination for easy handling.
Constructed for operating temperatures from -50°C to 120°C for versatile environmental use.
Suitable for spring connection and snap-on mounting to DIN rails.
Colour coded yellow and green for precise PE conductor identification.
Pitch dimension of 8.1mm supports compact installation design.

Product Description

Weidmüller 1771360000 Z Series PE Terminal Clamp is engineered to provide high-performance, secure electrical connections in industrial and electronic applications. Rated for 800V and 720A, this terminal clamp supports conductors up to 6mm² cross-section and utilizes proven tension clamp technology to ensure excellent electrical contact and mechanical stability.

The terminal is designed with a single connection level suitable for protective earth (PE) conductors, distinguished by the yellow and green color coding that aids in quick and safe identification during installation and maintenance operations.

Operating reliably over a wide temperature range from -50°C up to 120°C, it is well suited for various environmental conditions in industries such as manufacturing, power supply, automation, and electrical distribution systems.

Mounting is made efficient by the snap-on design compatible with standard DIN rails, reducing installation time and improving system integrity. The pitch of 8.1mm offers compact spacing without sacrificing wiring accessibility.

Tension clamp technology provides universal contact for all common conductor types. Spring connection enhances vibration resistance and connection reliability. Snap-on mounting allows quick installation on DIN rails. Colour coding improves safety and compliance in electrical installations.

Capable of handling high current up to 720A at nominal voltage of 800V. Wide operating temperature range ensures versatility across applications. Compact design with 8.1mm pitch for space-efficient wiring setups.

This PE terminal clamp is manufactured in the Czech Republic to meet demanding industrial standards, making it an ideal choice for electrical panels, control cabinets, and power distribution units within industrial, commercial, and infrastructure projects. For reliable and efficient conductor termination, the Weidmüller 1771360000 offers a trusted solution compliant with modern electrical system requirements.
