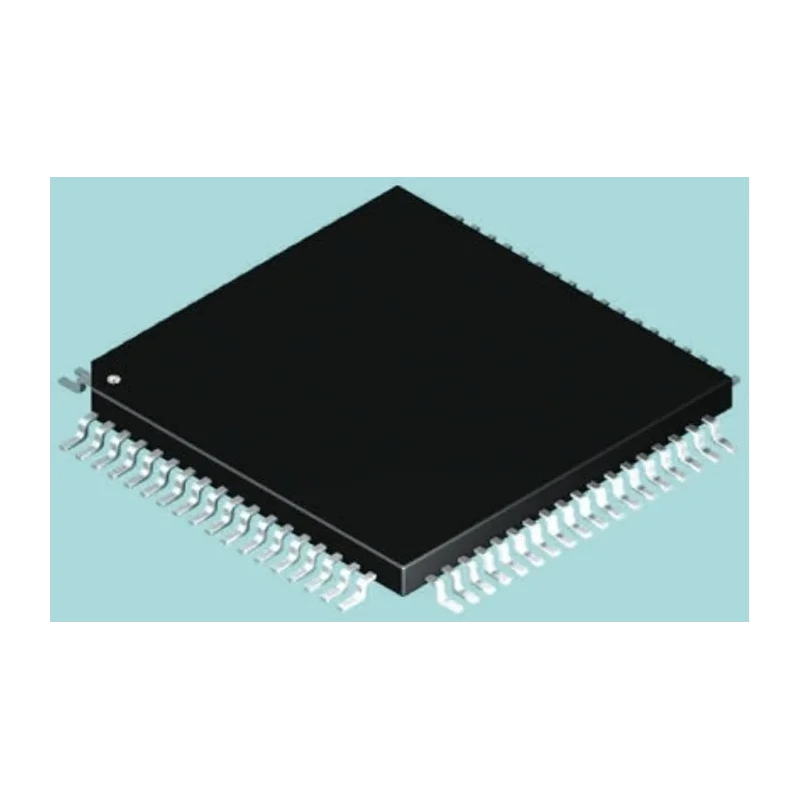

Microchip PIC24FJ256GA108-I/PT 16-Bit PIC24FJ Microcontroller 32 MHz 256kB FLASH 80-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC24FJ256GA108-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Standards/Approvals | RoHS |
| Pin Count | 80 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 85 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 64MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a 16-bit RISC architecture for efficient processing.
- Offers 256kB of FLASH program memory and 16kB RAM.
- Operates within a voltage range of 2V to 3.6V for flexible power supply.
- Equipped with 85 programmable I/O pins and 5 timers for complex control applications.
- Includes 16 ADC channels with 10-bit resolution for precise analog input measurement.
- Meets RoHS standards ensuring environmental compliance.
- Temperature operating range from -40°C to 85°C suitable for industrial use.
- Package dimensions are 12mm x 12mm x 1.05mm, ideal for surface mount applications.
Product Description
Microchip PIC24FJ256GA108-I/PT is a 16-bit PIC24FJ microcontroller featuring a high-performance RISC architecture operating at a maximum clock frequency of 32 MHz. It integrates 256kB of FLASH program memory and 16kB of RAM, designed to deliver efficient processing capabilities for embedded systems.
This microcontroller is supplied in a compact 80-pin TQFP surface mount package measuring 12mm in length and width and 1.05mm in height, allowing for dense PCB layouts.
It supports a supply voltage range from 2V minimum to 3.6V maximum, suitable for a wide range of power sources. The device provides 85 programmable input/output pins, 5 timers, 3 analog comparators, and 16 channels of 10-bit ADCs, making it highly versatile for complex analog and digital control tasks.
Designed for industrial and embedded applications, the PIC24FJ256GA108-I/PT operates within a temperature range of -40°C to 85°C. Although it does not qualify as an automotive standard device, it offers expanded memory addressing capability of up to 64MB, suitable for sophisticated software requirements.
The product complies with RoHS directives, ensuring environmentally responsible manufacturing. The FLASH memory type is standard for microcontrollers intended for embedded control systems. This microcontroller is an ideal choice for designing efficient, low-power embedded and industrial control systems.
Features a 16-bit RISC architecture for efficient processing. 256kB FLASH memory and 16kB RAM for program and data storage. Operates at a maximum frequency of 32 MHz for balanced speed and power efficiency. Supports 85 programmable I/O pins and 5 timers for comprehensive control.
Includes 16 x 10-bit ADC channels for precise analog inputs. Complies with RoHS environmental standards. Surface mount 80-Pin TQFP package with compact dimensions. Operational temperature from -40°C to 85°C for industrial resilience.
Explore more Microchip products and advanced Microcontroller solutions for your electronics and embedded system needs at EnvMart.
