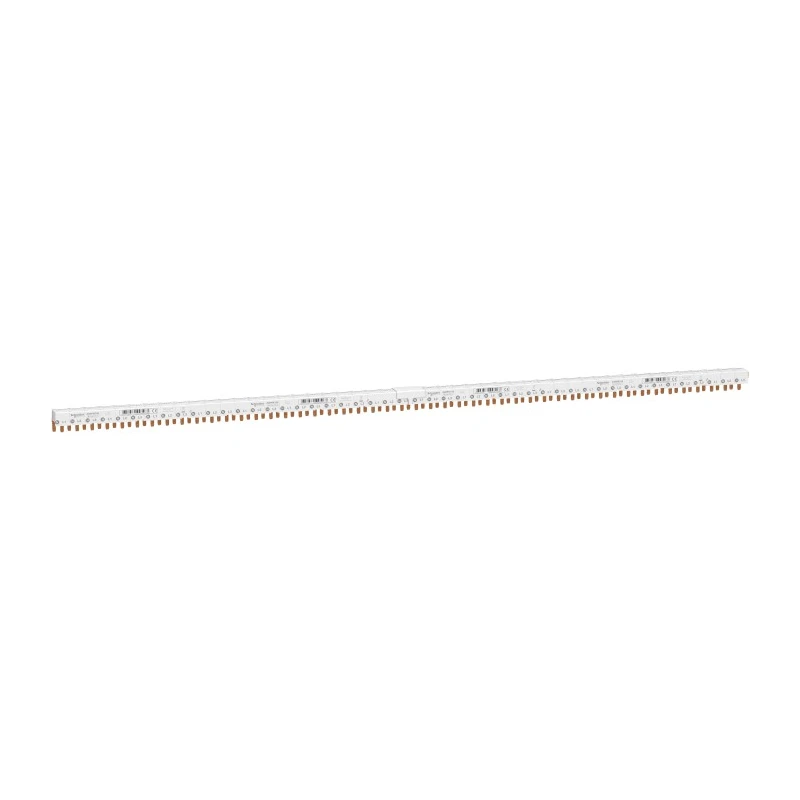

Schneider Electric Acti9 Acti9 iDT40 1 Phase Busbar, 9 mm Pitch A9XPN748

Schneider Electric A9XPN748 Acti9 iDT40 1 Phase Busbar, featuring a 9 mm pitch, is engineered for robust and efficient electrical power distribution in industrial, commercial, and residential electrical infrastructure systems. This busbar is crafted to meet the EN/IEC 60439-1 standards, ensuring high quality, safety, and performance under demanding conditions.

Designed for single-phase electrical setups, it supports a rated operational current of 80 A at 40 °C and a rated operational voltage of 230 V AC Phase to Neutral. The busbar includes 16 ways, configured as N + 3 L (balanced) poles, facilitating balanced load distribution and enhanced system reliability. Its 9 mm pitch between phase and neutral provides compactness and ease of connection.

The product incorporates 48 modules housed in a sleek white insulated frame, making it suitable for organized panel mounting and electrical enclosures. It is horizontally mountable on a top tunnel type terminal, with insulated connectors ensuring safety during installation and operation. The cuttable design allows customization to fit specific electrical panel requirements, enhancing its versatility.

Key dimensions are 862 mm width, 29 mm height, and 26 mm depth, while the net weight of 579 g supports easy handling without compromising sturdiness. The rated insulation voltage stands at 440 V AC in compliance with IEC 61439-1, with an impulse withstand voltage of 4 kV for reliable electrical insulation and protection against surges.

Manufactured in Poland, this product aligns with Schneider Electric's Better World initiative which emphasizes sustainability through design for disassembly and resource efficiency. It is suitable for use in electrical distribution boards, circuit breaker assemblies, and busbar systems across various industrial and commercial environments requiring precise and reliable power distribution.

Constructed to EN/IEC 60439-1 standard, assuring product quality and safety. Supports 80 A rated operational current at 40 °C for robust electrical applications. Configured with 16 ways N + 3 L balanced poles and cuttable design for flexibility.

Includes 48 modules with a white insulated frame for secure and organized installation. Rated for 230 V AC Phase to Neutral with 440 V AC insulation voltage. Mounts horizontally on top tunnel-type terminals for ease of assembly.

Measures 862 mm width, 29 mm height, and 26 mm depth; weighs 579 grams. Designed for disassembly supporting sustainability goals under Schneider Electric's Better World Program. Explore more Schneider Electric products and advanced Busbar systems on EnvMart for your electrical automation and power distribution needs.
