Igus Chainflex CF140.UL Screened Control Cable, 12 Cores, 0.75mm² 18 AWG, Thermoplastic Elastomer CF140.07.12.UL (50m)

Free Delivery in India | Lowest Global Shipping Charges

Igus Chainflex CF140.UL Screened Control Cable, 12 Cores, 0.75mm² 18 AWG, Thermoplastic Elastomer CF140.07.12.UL (50m)

Name: Igus Chainflex CF140.UL Screened Control Cable, 12 Cores, 0.75mm² 18 AWG, Thermoplastic Elastomer CF140.07.12.UL (50m)
Brand: IGUS
SKU: 321193
Price: 28.25 USD
Availability: InStock



Category Control Cable Brand IGUS Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Igus
Model	CF140.07.12.UL (50m)
Cable Length	50m
Series	Chainflex CF140.UL
Outside diameter	13mm
Maximum Operating Temperature	70°C
Number Of Cores	12
Conductor Material	Copper
Minimum Operating Temperature	-15°C
Jacket Material	Thermoplastic Elastomer
Standards/Approvals	CE, EN
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
American Wire Gauge	18AWG
Screened/Unscreened	Screened
Conductor Type	Stranded
Cable CSA	0.75mm²

Key Features

Constructed with copper conductors for reliable electrical performance.
Features a grey thermoplastic elastomer jacket that is flame retardant and oil resistant.
Armoured and screened design reduces electromagnetic interference and enhances durability.
Operating voltage rated at 300/500 V suitable for control cable applications.
Designed to withstand temperatures from -15°C minimum to 70°C maximum.
Stranded conductor type ensures flexibility for dynamic cable installations.
Outside diameter measures 13 mm for space-saving routing.
Complies with CE, EN standards and flame retardant IEC 60332-1-2 regulations.

Product Description

Igus CF140.07.12.UL (50m) screened control cable is a high-quality cable tailored for medium-duty industrial applications requiring durability and electromagnetic interference protection. This 12-core cable, with a conductor cross-section of 0.75mm² (18 AWG), features copper conductors and a grey thermoplastic elastomer jacket providing excellent abrasion resistance, flame retardant properties, and oil resistance. The armoured and screened construction enhances its suitability for dynamic and fixed installations where control signal integrity is critical.

The cable supports operating voltages of 300 and 500 volts, making it appropriate for a wide range of control cable applications. It is engineered to operate reliably within a temperature range from -15°C to 70°C, with stranded conductors ensuring flexibility and long service life, particularly in cable carrier systems (echains). The patented bundled core design supports small bend radii, enabling compact space usage.

Compliance with CE and EN standards as well as flame retardant certifications like IEC 60332-1-2 underlines its suitability for industrial and manufacturing environments. Manufactured in Germany, this cable offers robustness and performance for indoor applications or outdoor installations where conditions do not fall below freezing.

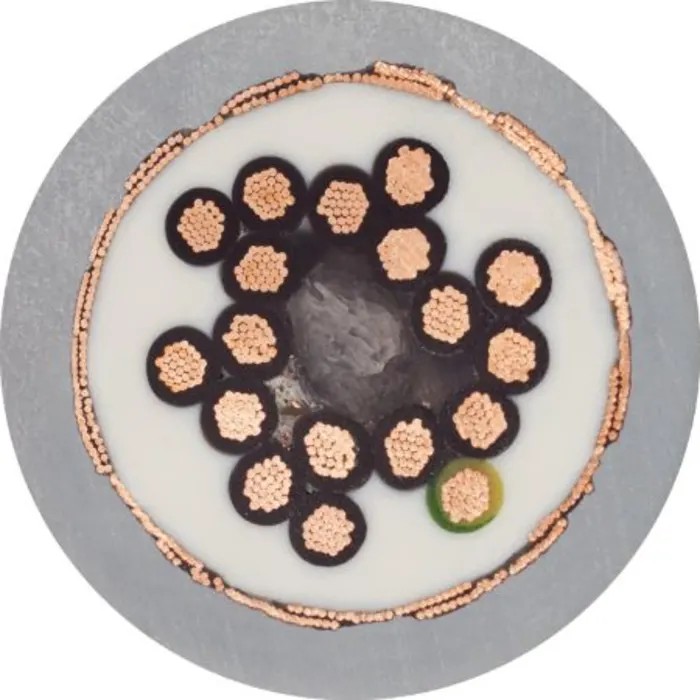

12 cores of stranded copper to provide excellent electrical conductivity. Thermoplastic elastomer jacket ensures flame retardance and oil resistance. Screened and armoured construction for electromagnetic compatibility and mechanical protection.

Rated for 300/500 V voltage control signals. Operates reliably between -15°C and 70°C. Compact 13 mm outside diameter allowing for space-efficient installations. Flame retardant certified under IEC 60332-1-2 and compliant with European electrical standards.

Suitable for automation, machinery, packaging, and handling systems. Designed for use in echain applications with a guaranteed service life tested extensively. Produced in Germany assuring premium build quality. Explore more products in the Control Cable category for comprehensive electrical and automation cable solutions at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for operating voltages of 300 and 500 volts, making it suitable for various control cable applications.

It operates reliably within a temperature range from -15°C to 70°C, suitable for both indoor and outdoor applications where conditions do not fall below freezing.

This control cable features 12 cores, providing flexibility and excellent electrical conductivity for various applications.

The outside diameter of this model measures 13 mm, allowing for space-efficient installations in various setups.

It is constructed with copper conductors and a grey thermoplastic elastomer jacket, which provides abrasion resistance, flame retardant properties, and oil resistance.

Yes, the stranded conductor type ensures flexibility, making it suitable for dynamic cable installations, particularly in cable carrier systems (echains).

It complies with CE and EN standards and is flame retardant certified under IEC 60332-1-2, ensuring suitability for industrial environments.

This cable is suitable for automation, machinery, packaging, and handling systems, particularly in environments requiring electromagnetic compatibility.

The conductor cross-section of this model is 0.75mm², equivalent to 18 AWG, which supports its electrical performance.

The cable is flame retardant, complying with relevant regulations to enhance safety in industrial applications.

This model is manufactured in Germany, assuring a high standard of build quality.

It features an armoured and screened construction, which reduces electromagnetic interference and enhances mechanical protection.
