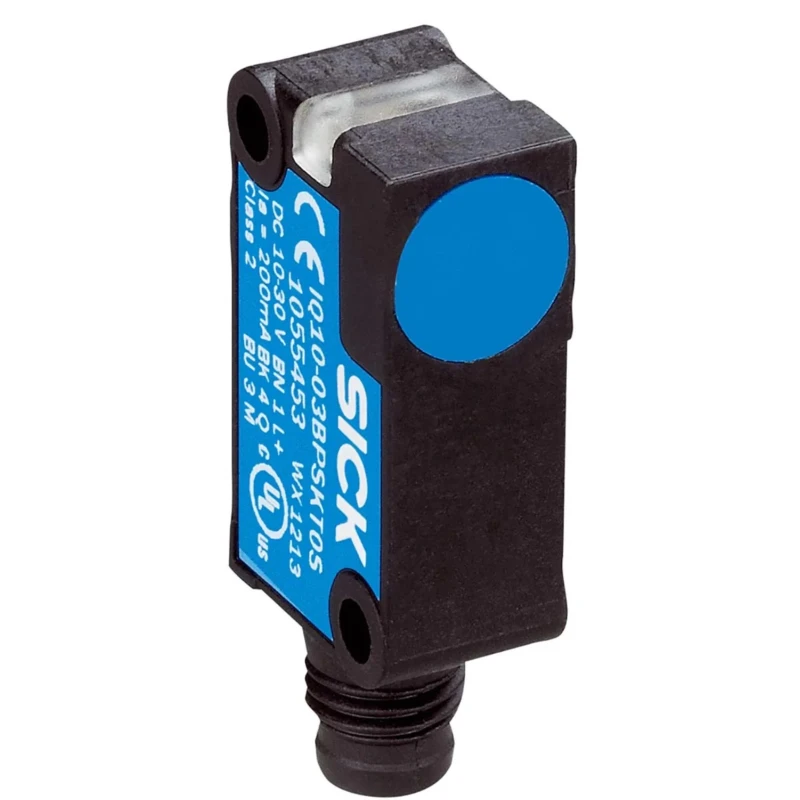

SICK Block Inductive Proximity Sensor PNP Flush Mount IP68 30 V DC 200 mA 3 mm Detection IQ10-03BPOKT0S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 16mm |
| Model | IQ10-03BPOKT0S |
| Depth | 28mm |
| IP Rating | IP68 |
| Width | 10mm |
| Mount Type | Flush |
| Housing Material | Plastic |
| Types | 10 mm x 16 mm x 28 mm or 12 mm x 26 mm x 40 mm |
| Output type | PNP |
| Series | IQ10 |
| Maximum Operating Temperature | 75°C |
| Enclosure Rating | IP 68 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 3mm |
| Extended sensing ranges | 2 mm to 8 mm |
| Electrical configuration | DC 3-/4-wire |
Key Features
- Compact block body style measuring 16 mm length, 10 mm width, and 28 mm depth.
- Constructed with rugged plastic housing rated IP68 for protection against dust and water ingress.
- Flush mount installation with M8 terminal connection ensures easy integration.
- Operates at a maximum supply voltage of 30 V DC with a switching current of 200 mA.
- Supports PNP output type for positive switching signal applications.
- Unshielded sensor offering an extended sensing range from 2 mm up to 8 mm within the IQ10 series.
- Wide operating temperature range from -30 °C to 75 °C for use in diverse environments.
- Compliance with standards EN 60947-5-2 and EN 60529 guarantees reliability and safety.
Product Description
SICK IQ10-03BPOKT0S is a block-style inductive proximity sensor designed for precise metal object detection and robust industrial use. Featuring a plastic housing with dimensions 16 mm (L) x 10 mm (W) x 28 mm (D), it supports flush mounting and is connected via an M8 terminal.
The sensor operates on a DC 3-/4-wire electrical configuration, with a maximum supply voltage and DC voltage of 30 V, and can handle switching currents up to 200 mA using a PNP output configuration.
The device is unshielded with an extended sensing range from 2 mm to 8 mm, optimized for metal detection within harsh operating temperatures ranging from -30 °C to +75 °C. Rated IP68, this sensor offers a high degree of protection against dust and water, ideal for demanding environments.
Equipped with SICK's ASIC technology and the durable VISTAL® housing, it ensures best-in-class mechanical and electronic stability, contributing to a long service life that reduces maintenance requirements. The clear 270° output status display simplifies monitoring, while its compact block format supports space-saving integration.
Typical applications include presence detection of press tools, positioning in reworking stations, rack and carrier presence checking, PCB transport system adjustments, baggage tub detection, elevator door leaf monitoring, and escalator speed monitoring.
Compact block body style measuring 16 mm length, 10 mm width, and 28 mm depth. Plastic housing rated IP68 protects against dust and water. Flush mounting with M8 terminal type for easy installation. 30 V DC maximum supply voltage with PNP output type.
Extended sensing range of 2 mm to 8 mm for metal detection. Operating temperature range from -30 °C to 75 °C. Complies with EN 60947-5-2 and EN 60529 standards for safety and reliability. Incorporates ASIC technology and VISTAL® housing for durability.
Wide industrial use cases including automation, manufacturing, and control gear applications.
Choose the SICK IQ10-03BPOKT0S for a reliable, high-performance Inductive Proximity Sensor suitable for a variety of industrial control and automation environments. Explore more sensors and automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30 V DC.
This unit has an extended sensing range from 2 mm to 8 mm for metal detection.
The sensor measures 16 mm in length, 10 mm in width, and 28 mm in depth.
It supports a PNP output type for positive switching signal applications.
The operating temperature range is from -30 °C to 75 °C.
It can handle a switching current of up to 200 mA.
It features a flush mount installation with an M8 terminal connection for easy integration.
This model is designed to detect metal objects.
It has an IP68 rating, providing protection against dust and water ingress.
It complies with EN 60947-5-2 and EN 60529 standards for safety and reliability.
This unit operates on a DC 3-/4-wire electrical configuration.
The maximum switching frequency is 2 kHz.
