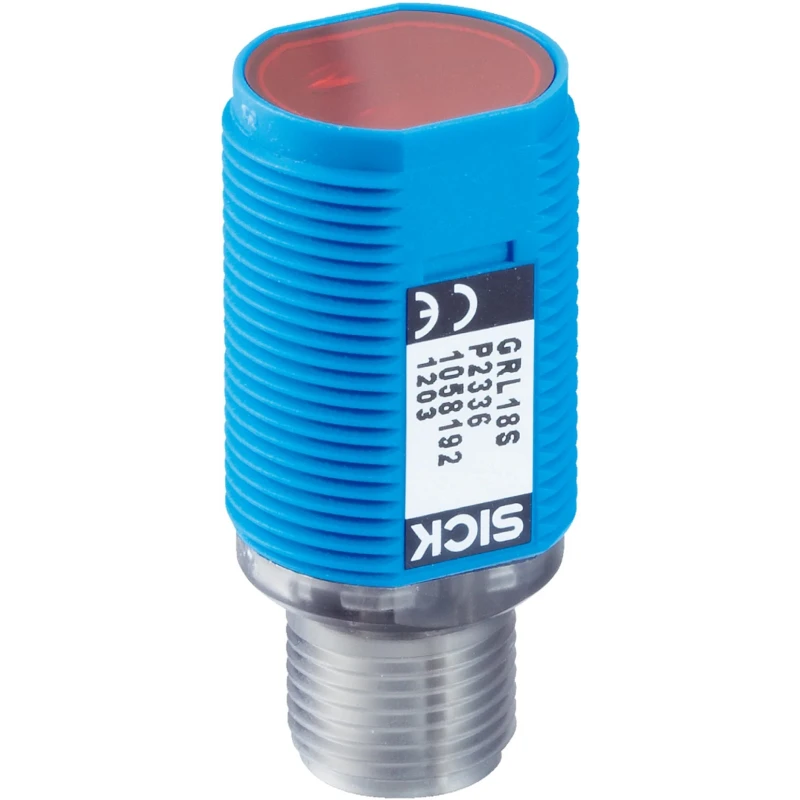

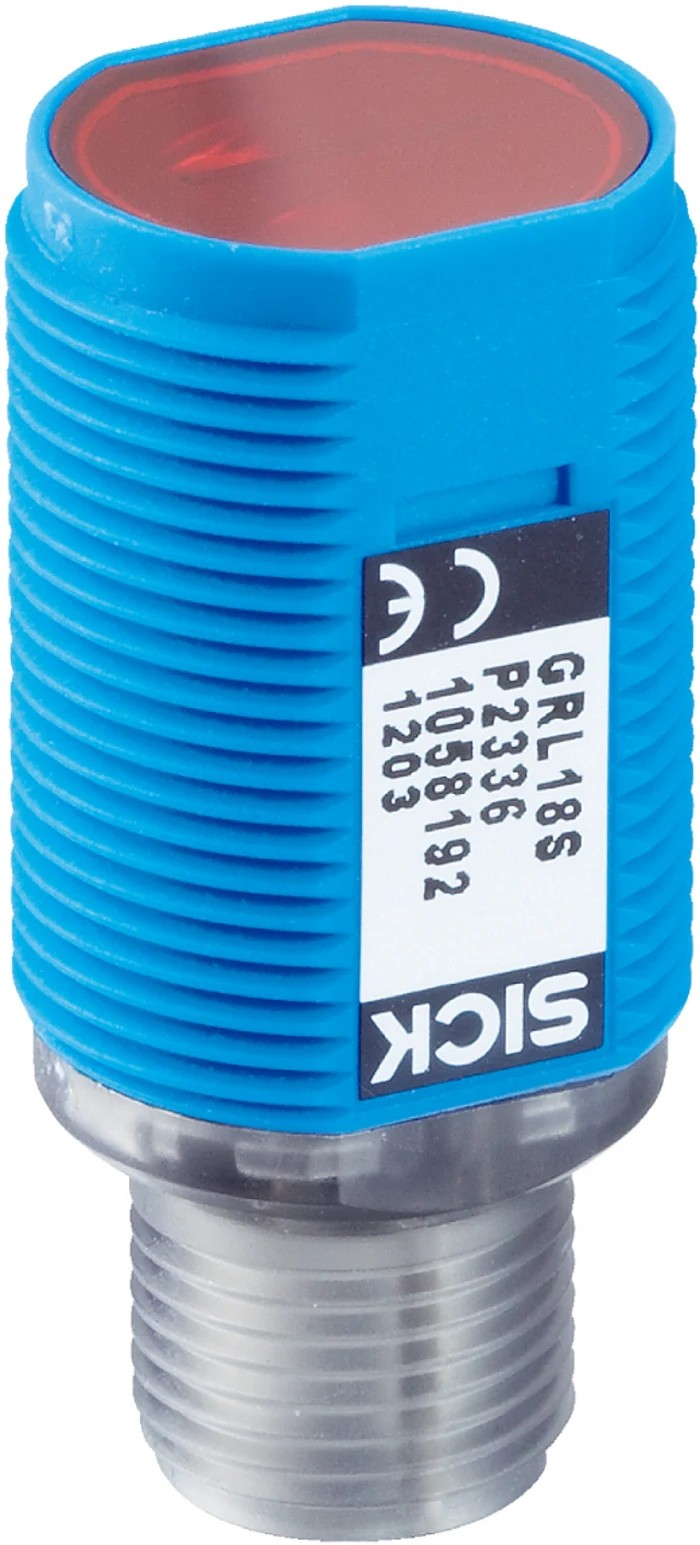

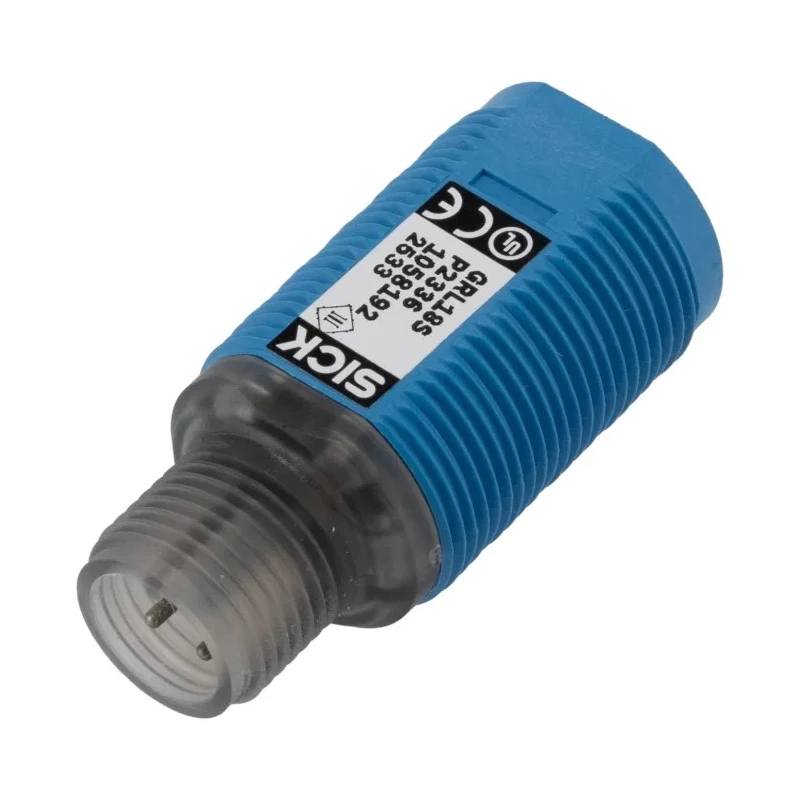

SICK Retroreflective Photoelectric Sensor Barrel Style 7.2 m Detection Range PNP Output IP67 GRL18S-P2336
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Pin Point LED |
| Detection range | 7.2 m |
| Model | GRL18S-P2336 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Plastic |
| Output type | PNP |
| Series | GR18S |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 3-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | EMC EN 60947-5-2 |
| Sensor Style | Barrel |
Key Features
- Compact barrel style sensor designed for retroreflective detection applications.
- Utilizes a visible red pin-point LED light source for precise object detection.
- Equipped with a PNP switching output and 3-pin M12 connector for easy integration.
- IP67 rated plastic housing protects against dust and moisture ingress.
- Operating temperature range from -25°C to 55°C for versatile industrial environments.
- Fast response time of 500 microseconds supports rapid cycle automation.
- Detection range extends up to 7.2 meters with PL80A reflector.
- Includes protection against reverse polarity and short circuit conditions.
Product Description
SICK GRL18S-P2336 is a retroreflective photoelectric sensor in a compact barrel style, delivering precise object detection with a 7.2 meter sensing range and IP67 ingress protection. This sensor uses a visible red pin-point LED light source to detect objects with high accuracy against reflective targets. Designed for industrial automation and control systems, it features a PNP output and a 3-pin M12 connector for straightforward electrical connection.
The sensor is housed in a robust plastic enclosure that protects it from dust and moisture, making it suitable for harsh factory environments. It operates efficiently over a temperature range of -25°C to 55°C and provides a fast response time of 500 microseconds, ideal for applications requiring rapid detection cycles.
The device supports a maximum operating voltage of 30V DC and a maximum current load of 100mA. It is compatible with the PL80A reflector, enabling detection up to 7.2 meters. Electrical protections include reverse polarity and overcurrent/short-circuit safeguarding to enhance reliability and longevity.
Mounting is facilitated by screw installation into an M18x1 threaded hole, with fastening nuts included to secure the sensor firmly in place. Status LEDs provide visual feedback; a green LED indicates power supply presence and a yellow LED shows light beam reception and object detection.
This sensor is extensively used in industrial automation for conveyor part detection, presence sensing of reflective targets, material handling position feedback, and component counting in assembly lines. Its sealed design and high ingress protection make it suitable for applications exposed to moisture and dust.
Compact barrel form factor with plastic housing rated to IP67. High switching speed enables fast object detection up to 1000Hz. Red light source with 650 nm wavelength and polarization filter to reduce interference. Built to operate reliably in environments from -25°C to +55°C.
Suitable for conveyor system automation, assembly stations, and material handling.
Choose the SICK GRL18S-P2336 Photoelectric Sensor for high-performance, reliable sensing in demanding industrial and automation applications. Browse EnvMart's Electronics & Electricals category for more sensors and automation equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range extends up to 7.2 meters when used with the PL80A reflector.
It features a PNP output type for integration into control systems.
The maximum operating voltage is 30V DC.
The response time is 500 microseconds, allowing for rapid detection cycles.
This sensor has an IP67 rating, indicating it is protected against dust and moisture ingress.
It operates efficiently within a temperature range of -25°C to 55°C.
Mounting is facilitated by screw installation into an M18x1 threaded hole, with fastening nuts included.
The housing is made of plastic, providing durability and protection for the internal components.
It uses a visible red pin-point LED light source for object detection.
It includes protections against reverse polarity and short circuit conditions to enhance reliability.
It complies with EMC EN 60947-5-2 standards for photoelectric sensors.
It is extensively used in industrial automation for conveyor part detection, presence sensing, and material handling.
