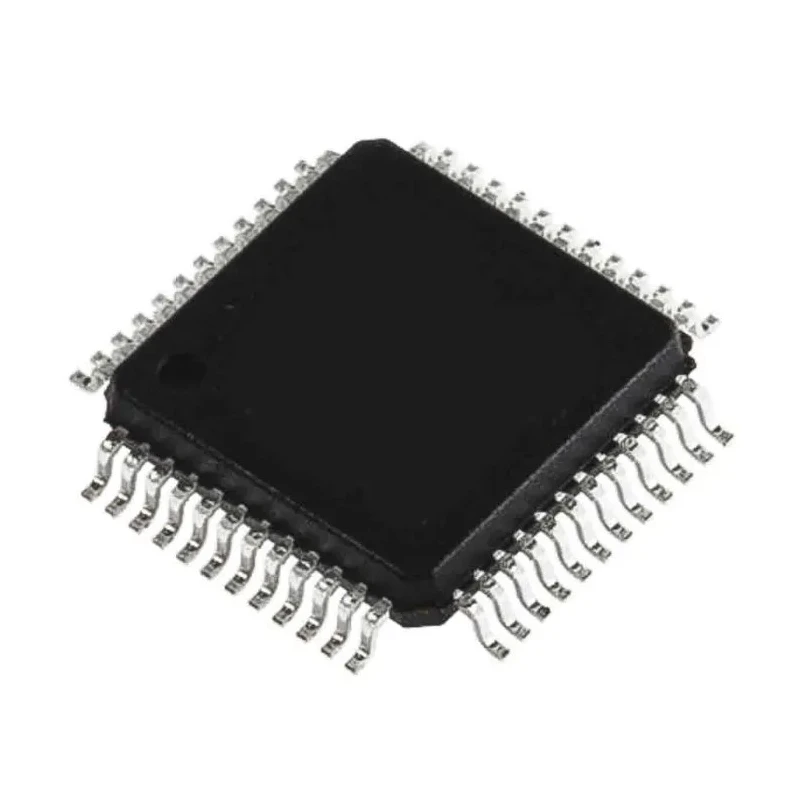

STMicroelectronics 32-Bit ARM Cortex M0 Microcontroller , 48 MHz, 128kB FLASH, 16kB SRAM, 48-Pin LQFP STM32F070CBT6TR

STMicroelectronics STM32F070CBT6TR 32-Bit ARM Cortex M0 Microcontroller is a high-performance embedded controller designed for industrial, laboratory, and embedded system applications. Operating at a maximum clock frequency of 48 MHz, it integrates 128kB of Flash memory and 16kB SRAM with hardware parity to ensure data integrity and efficiency.

This microcontroller features an ARM Cortex M0 CPU core with RISC instruction set architecture, delivering efficient 32-bit processing power within a compact 48-Pin LQFP surface-mount package measuring 7.2 mm by 7.2 mm with a height of 1.45 mm. It supports a supply voltage range from 2.4 V to 3.6 V, making it suitable for various power environments.

Included peripherals comprise 3 timers including a 16-bit advanced-control timer with six-channel PWM output, 12 12-bit ADC channels, and up to 51 I/O pins with 5V tolerant capability. Communication interfaces include USB 2.0 full-speed, up to two I2C interfaces, up to four USARTs supporting SPI and modem control, and two SPI interfaces with programmable bit frames up to 18 Mbit/s.

The STM32F070CBT6TR supports low power modes such as Sleep, Stop, and Standby, ideal for applications requiring energy conservation. Safety and reliability features include watchdog timers, CRC calculation unit, power-on/power-down reset, and a calendar RTC with alarm and periodic wakeup.

Its broad operating temperature range from -40°C to +85°C makes it robust for demanding environments like industrial automation, automotive control systems, and consumer electronics. The microcontroller meets FBI standards and provides analog supply flexibility with separated analog and digital I/O supplies.

Operates up to 48 MHz ARM Cortex M0 CPU core. 128kB Flash memory and 16kB SRAM with parity check. 48-Pin LQFP surface-mount packaging measuring 7.2 x 7.2 x 1.45 mm. Wide operating voltage range: 2.4 V to 3.6 V. Multiple timers, ADCs, and communication interfaces (USB, SPI, I2C, USART).

Low power modes: Sleep, Stop, Standby for energy efficiency. Robust operating temperature range -40°C to +85°C. Integrated safety features: watchdog timers, CRC calculation, POR/PDR. Up to 51 fast I/O pins with 5V tolerance.

This microcontroller is ideal for use in industrial automation, embedded computing, consumer electronics, automotive control units, and laboratory instrumentation. Explore more Microcontrollers from STMicroelectronics in EnvMart for comprehensive embedded system solutions.
