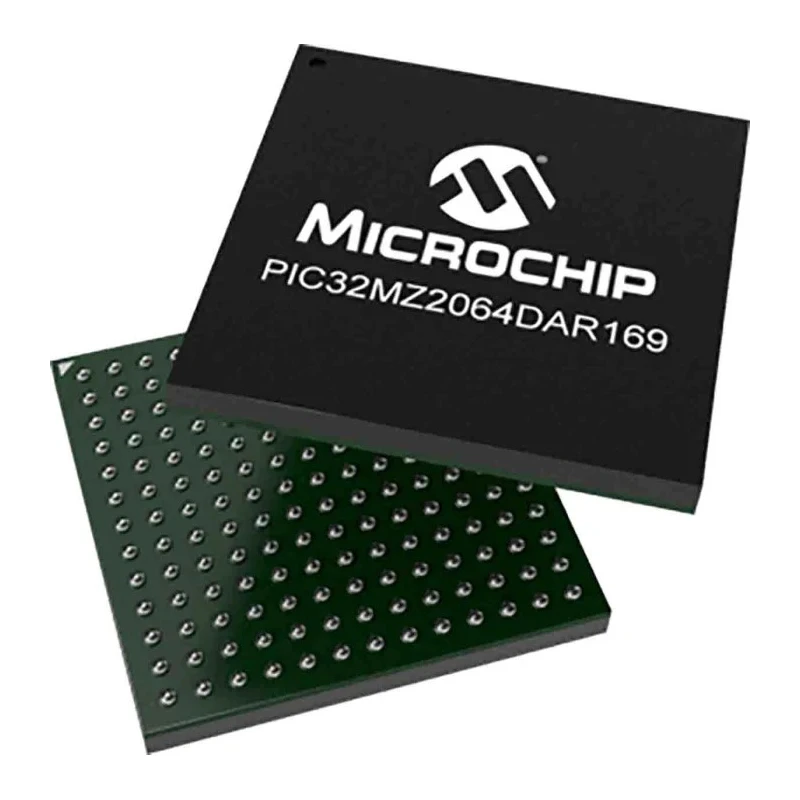

Microchip 32 bit MIPS32 MicroAptiv PIC32MZ Microcontroller 200 MHz, 2048kB Flash, 169-Pin LFBGA PIC32MZ2064DAR169-I/6J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.06mm |
| Length | 11mm |
| Model | PIC32MZ2064DAR169-I/6J |
| Width | 11mm |
| Mount Type | Surface |
| Series | PIC32MZ |
| Maximum Operating Temperature | 85°C |
| Package Type | LFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 640kB |
| Pin Count | 169 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
| Device Core | MIPS32 MicroAptiv |
| Program Memory Size | 2048kB |
| Maximum Clock Frequency | 200MHz |
| Number of Programmable I/Os | 120 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | MIPS32 |
| ADCs | 45 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Equipped with a MIPS32 MicroAptiv core for efficient processing performance.
- Features 2048kB of Flash program memory and 640kB RAM for advanced applications.
- Supports a maximum clock frequency of 200 MHz for high-speed operations.
- Includes 45-channel 12-bit ADC and 2 analogue comparators for precise analog input processing.
- Provides 120 programmable I/Os and multiple communication interfaces including CAN, UART, and I2C.
- Operates within supply voltage range of 2.2V to 3.6V suitable for varied power designs.
- Robust temperature operating range from -40°C to 85°C for industrial environments.
- Package dimensions are 11mm x 11mm with a height of 1.06mm, surface mount LFBGA type.
Product Description
Microchip PIC32MZ2064DAR169-I/6J is a high-performance 32 bit MIPS32 MicroAptiv microcontroller featuring a 200 MHz maximum clock frequency and a large 2048kB Flash memory. It is housed in a 169-pin LFBGA surface mount package with compact dimensions of 11mm length, 11mm width, and 1.06mm height, designed for advanced embedded applications requiring reliable performance.
This microcontroller integrates a MIPS32 MicroAptiv core providing an efficient and powerful processing platform ideal for industrial, automotive, and high-end embedded system designs. With 640kB of on-chip SRAM and an externally addressable DDR2 DRAM option, it offers extensive memory capabilities to support complex graphical user interfaces and high data throughput.
The device includes a comprehensive analog interface with a 45-channel 12-bit ADC module operating at 18 MSPS and 2 analogue comparators, enabling precise analog signal measurement and control. Communication interfaces include CAN, UART, I2C, PMP, EBI, SQI, and integrated graphics controller support, making it suitable for a wide range of applications such as industrial automation, automotive control units, and sophisticated GUI implementations.
Operating voltage ranges from 2.2V to 3.6V and can withstand temperatures from -40°C to 85°C, ensuring robust operation in demanding environments. The microcontroller meets automotive standards with AEC-Q100 certification, guaranteeing reliability for automotive system integration.
Equipped with a MIPS32 MicroAptiv core for efficient embedded processing. 2048kB FLASH memory and 640kB SRAM for large program and data storage. 45-channel 12-bit ADC at 18 MSPS speed for advanced analog signal processing.
Supports multiple communication protocols including CAN, UART, and I2C. Package: 169-pin LFBGA surface mount with small footprint dimensions. Automotive qualified with AEC-Q100 standard compliance. MicroMIPS mode for up to 35% code compression enhances firmware size efficiency.
Wide operating voltage and temperature range suitable for industrial applications.
This Microchip microcontroller is ideally suited for industrial automation, automotive controls, HVAC systems, and complex user interface applications. It balances performance, peripheral integration, and quality in one device to support modern embedded system demands.
Explore more Microchip Microcontrollers and advanced semiconductor products on EnvMart to empower your high-performance design projects efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC32MZ2064DAR169-I/6J microcontroller is 200 MHz, enabling high-speed operations for advanced applications.
It features 2048kB of Flash program memory, providing ample storage for complex applications.
This microcontroller includes 640kB of RAM, which supports large program and data storage requirements.
The operating voltage range for this model is from 2.2V to 3.6V, suitable for varied power designs.
The package dimensions are 11mm x 11mm with a height of 1.06mm, and it is a surface mount LFBGA type.
It provides 120 programmable I/Os, allowing for extensive interfacing capabilities in embedded applications.
This model supports multiple communication interfaces including CAN, UART, and I2C, making it versatile for various applications.
The operating temperature range is from -40°C to 85°C, ensuring robust performance in industrial environments.
It includes a 45-channel 12-bit ADC that operates at 18 MSPS, enabling precise analog signal processing.
Yes, it meets the AEC-Q100 automotive standard, ensuring reliability for automotive system integration.
The instruction set architecture of the PIC32MZ2064DAR169-I/6J is MIPS32, which supports efficient processing performance.
This microcontroller includes 2 analogue comparators for enhanced analog input processing capabilities.
