Idec XA Series Twist Release Emergency Stop Push Button Panel Mount 16 mm Cutout 2 NC IP65 IP40 XA1E-BV4U02TR

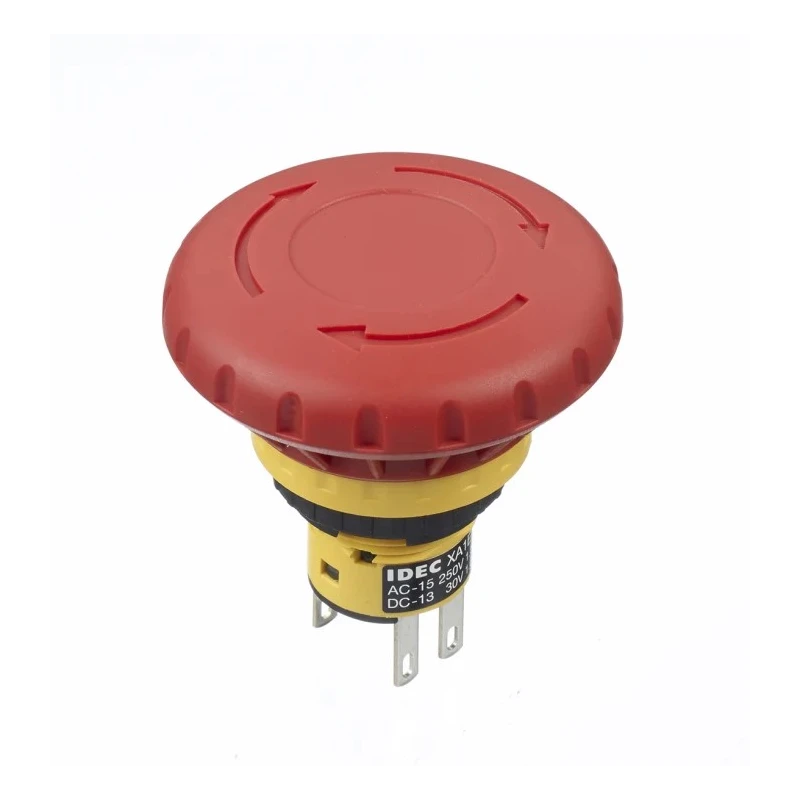

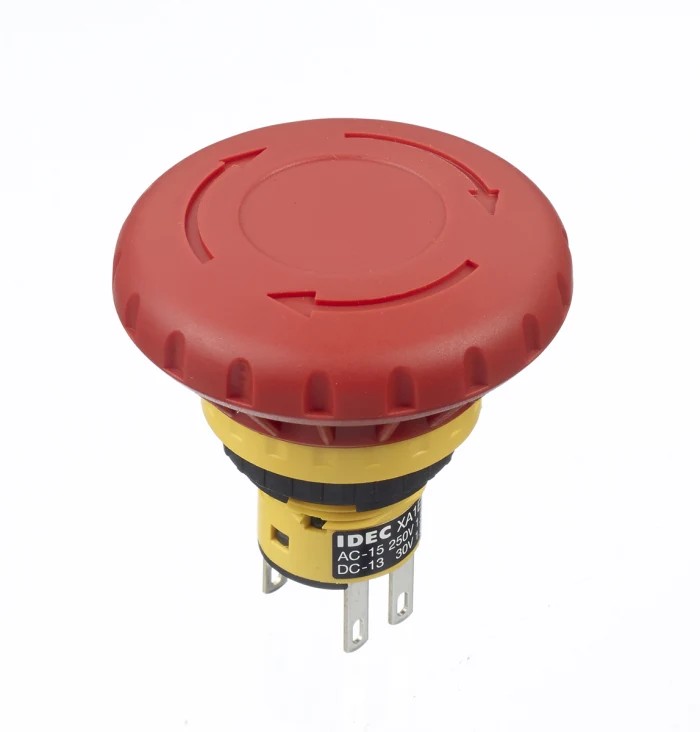

Name: Idec XA Series Twist Release Emergency Stop Push Button Panel Mount 16 mm Cutout 2 NC IP65 IP40 XA1E-BV4U02TR
Brand: Idec
SKU: 319412
Price: 4206.14 INR
Availability: InStock



Category Emergency Stop Push Button Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Colour	Red
Length	40.1mm
Model	XA1E-BV4U02TR
IP Rating	IP65, IP40
Mount Type	Panel Mount
Series	XA
Contact Configuration	2 NC
Switch Configuration	4 NC, NO
Contact DC Voltage	250V dc
Contact AC Voltage	250V ac
Cutout Diameter	16mm
Safety Contacts	NC
Number of Auxiliary Contacts	2
Push Button Actuation	Twist Release

Key Features

Twist release push button actuation provides secure operation.
Designed for panel mounting with 16 mm cutout diameter.
Red-colored button with IP65 front and IP40 rear ingress protection rating.
Supports 250V AC and 250V DC contact voltages.
Includes 2 normally closed auxiliary contacts for reliable safety switching.
Button diameter measures 40mm with direct opening action mechanism.
Safety lock mechanism and pushlock turn reset functions integrated.
Compatible with solder or PCB terminal options.

Product Description

Idec XA1E-BV4U02TR emergency stop push button is a panel-mounted safety device designed to provide secure and reliable emergency stop functionality in industrial and automation environments. It features a twist release actuation mechanism with a 16 mm cutout diameter, suitable for panel integration.

The button is red and has a diameter of 40mm, offering excellent visibility and compliance with safety standards. It includes 2 normally closed (NC) auxiliary contacts, which ensure the circuit is interrupted safely upon activation. The device supports contact voltages of 250V AC and 250V DC, making it compatible with a wide range of electrical systems.

This push button offers an IP65 rating on the front, protecting against dust and water ingress, while the rear part has an IP40 rating. Its design includes a direct opening action mechanism, a safety lock mechanism, and pushlock turn reset features, enhancing operational safety and usability. Terminal options include solder and PCB to suit different installation requirements.

The Idec XA series push button complies with IEC60947-5-5, TÜV Product Service approvals, UL508, JIS C8201-5-1, CSA C22.2 No. 14, and RoHS directive, ensuring its suitability for rigorous industrial applications.

This Emergency Stop Push Button is ideal for use in industrial automation, electrical switchgear, manufacturing plants, and control panels where reliable emergency shutdown is critical. Its robust construction and multiple certifications ensure dependable operation in demanding environments.

Twist release push button actuation provides secure operation. Designed for panel mounting with 16 mm cutout diameter. Red-colored button with IP65 front and IP40 rear ingress protection rating. Supports 250V AC and 250V DC contact voltages.

Includes 2 normally closed auxiliary contacts for reliable safety switching. Button diameter measures 40mm with direct opening action mechanism. Safety lock mechanism and pushlock turn reset functions integrated. Compatible with solder or PCB terminal options.

Compliant with IEC60947-5-5, TÜV Product Service, UL508, JIS C8201-5-1, CSA C22.2 No. 14, RoHS standards. Manufactured in Japan ensuring high quality and reliability. Explore more emergency stop and push button solutions under the Electronics & Electricals category to meet your industrial and automation requirements.
