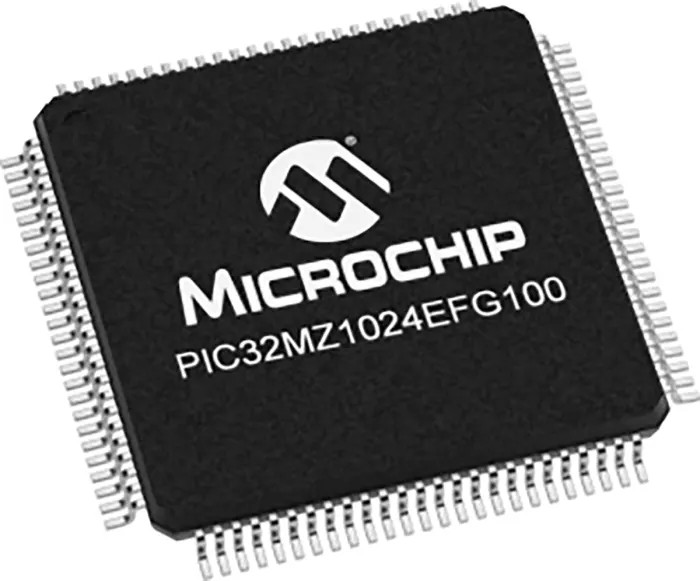

Microchip PIC32 32-bit MIPS32 Microcontroller 252 MHz 1.024MB FLASH 100-Pin TQFP PIC32MZ1024EFG100-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Temperature range | - 40°C to 85°C, - 40°C to 125°C |
| Length | 12mm |
| Model | PIC32MZ1024EFG100-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC32 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 512kB |
| Pin Count | 100 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.1V |
| Device Core | MIPS32 |
| Program Memory Size | 1.024MB |
| Maximum Clock Frequency | 252MHz |
| Number of Programmable I/Os | 78 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | C |
| ADCs | 40 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 3.6V and a minimum of 2.1V.
- Includes 512kB RAM with 40 channels of 12-bit ADC for advanced analog inputs.
- Supports automotive standard AEC-Q100 certification suitable for automotive applications.
- Features a DSP-enhanced core with four 64-bit accumulators and single-cycle MAC operations.
- Equipped with multiple interfaces including USB 2.0, CAN, UART, I2C, SPI/I2S for communication and audio processing.
- Temperature range supports industrial and automotive environments from -40°C to 125°C.
- Comes with dual-panel flash memory for live updates and an FPU for fast single- and double-precision math.
- Packaging dimensions are compact with a length and width of 12mm and a height of 1.05mm.
Product Description
Microchip PIC32MZ1024EFG100-I/PT is a high-performance 32-bit MIPS32 microcontroller running at 252 MHz, equipped with 1.024MB of flash memory and 512kB RAM. It comes in a 100-pin TQFP surface-mount package measuring 12mm in length and width with a height of 1.05mm, ideal for compact electronic designs.
This microcontroller supports an operating voltage range of 2.1V to 3.6V and includes 40 channels of 12-bit ADC for precise analog signal conversion. It is designed with automotive-grade AEC-Q100 certification, ensuring suitability for automotive and industrial applications requiring high reliability.
The DSP-enhanced core provides four 64-bit accumulators and single-cycle multiply-accumulate (MAC) operations, enabling efficient digital signal processing tasks. It also includes a floating-point unit (FPU) for fast single- and double-precision mathematical computations, supporting complex algorithm execution.
Featuring dual-panel flash memory architecture, the PIC32MZ1024EFG100-I/PT facilitates live firmware updates without disrupting ongoing operations. The microcontroller supports microMIPS mode, allowing up to 35% code size reduction and enhanced memory efficiency.
Connectivity options include USB 2.0 device/host/OTG functionality, CAN, UART, I2C, SPI/I2S interfaces for audio playback and data transfer, as well as programmable I/Os totaling 78 pins. This enables versatile integration into diverse embedded system applications in industrial, automotive, consumer electronics, and communication devices.
The device operates reliably across a wide temperature range from -40°C to 125°C, addressing stringent industrial and automotive environment demands. Its compact form factor and comprehensive peripheral set make it an excellent choice for advanced embedded control and signal processing solutions.
Operates between 2.1V and 3.6V supply voltage for flexible power options. Features 1.024MB FLASH for extensive program storage and 512kB RAM for fast data access. Incorporates 40-channel 12-bit ADC for high-resolution analog input measurements.
Meets automotive standard AEC-Q100 for durability and reliability in harsh conditions. Supports microMIPS instruction set for efficient code compression and memory usage. Explore more Microchip Microcontrollers and embedded solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC32MZ1024EFG100-I/PT microcontroller is 252 MHz.
It operates with a supply voltage range of 2.1V to 3.6V.
This model is equipped with 512kB of RAM.
It comes in a 100-pin TQFP (Thin Quad Flat Package) surface-mount package.
The device supports a temperature range from -40°C to 125°C, suitable for industrial and automotive environments.
It includes multiple interfaces such as USB 2.0, CAN, UART, I2C, and SPI/I2S for communication and audio processing.
This microcontroller features 40 channels of 12-bit ADC for high-resolution analog signal conversion.
Yes, it meets the automotive standard AEC-Q100, ensuring reliability for automotive applications.
It has a program memory size of 1.024MB FLASH.
This model provides a total of 78 programmable I/Os.
The device utilizes a MIPS32 core architecture, which supports efficient processing capabilities.
The height of the TQFP package is 1.05mm.
