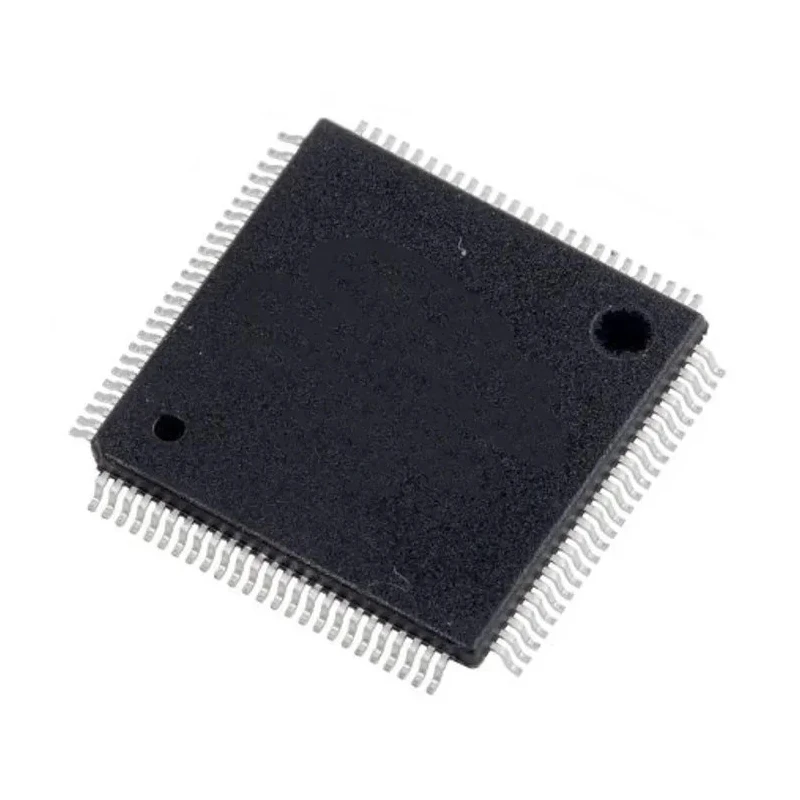

Microchip 32-bit ARM AT91 Microcontroller 55 MHz, 512kB FLASH, 128kB RAM, 100-Pin LQFP AT91SAM7XC512B-AU

Microchip AT91SAM7XC512B-AU is a high-performance 32-bit ARM microcontroller based on the ARM7TDMI core, designed for embedded and industrial applications requiring reliable processing power and flexible interfaces. Operating at a maximum clock speed of 55 MHz, it integrates 512kB of dual-plane internal high-speed flash memory, enabling fast program execution and efficient code storage.

This microcontroller features 128kB of SRAM, enhancing data handling capability for complex applications. It is housed in a 100-pin LQFP surface mount package with compact dimensions of 14mm by 14mm and a height of 1.45mm, suitable for space-constrained designs.

Designed for versatility, the AT91SAM7XC512B-AU supports multiple communication interfaces including SPI, UART, USART, and USB, allowing seamless integration with various peripherals and systems. It operates over a supply voltage range of 3V to 3.6V and withstands an operating temperature range of -40°C to 85°C, ensuring robust performance in industrial environments.

The chip provides 62 programmable input/output pins facilitating extensive connectivity options. With 3 embedded timers and 8 channels of 10-bit ADCs, it supports precise timing and analog signal processing required in advanced control systems.

Additional features include embedded flash security bits and sector lock capabilities that protect data integrity, catering to applications demanding high security. The device is ideal for industrial, manufacturing, and embedded system projects requiring dependable microcontroller solutions.

High-performance 32-bit RISC ARM7TDMI core architecture. 512kB dual-plane internal high-speed flash memory. 128kB of high-speed SRAM. 100-pin LQFP surface mount package. Multiple interface support: SPI, UART, USART, USB.

Wide operating voltage and temperature range. 62 programmable I/Os for flexible connectivity. 3 embedded timers and 8 x 10-bit ADC channels. Flash security and sector lock capabilities.

The Microchip AT91SAM7XC512B-AU microcontroller finds applications in industrial automation, embedded systems, manufacturing controls, and communication devices. Explore more Microcontrollers and embedded solutions available on EnvMart for your project requirements.
