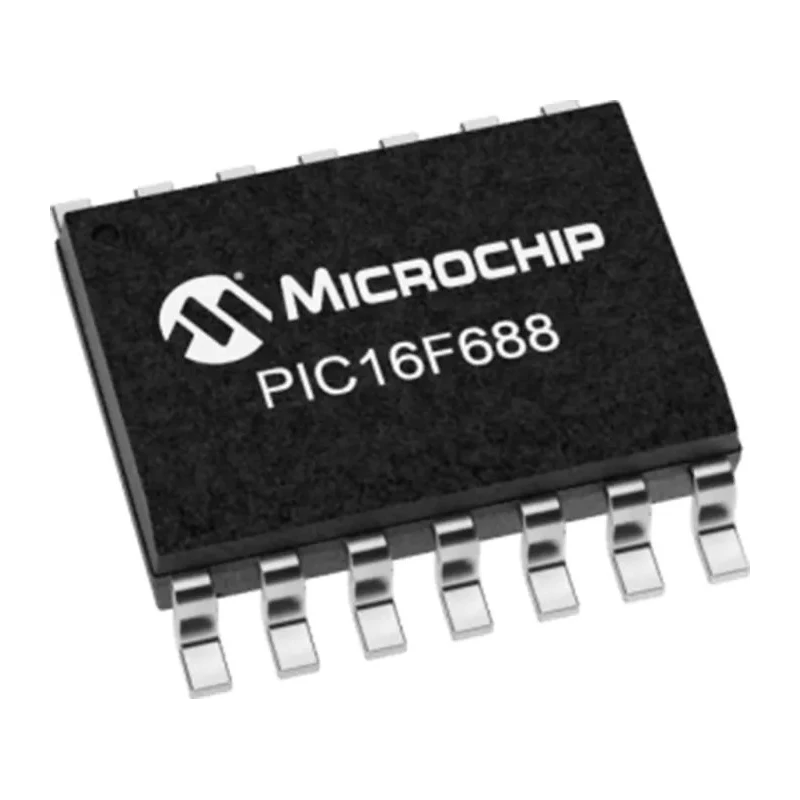

Microchip 8-bit PIC16F Microcontroller 20 MHz 7kB FLASH 14-Pin SOIC PIC16F688T-I/SL

Microchip PIC16F688T-I/SL is a high-performance 8-bit PIC microcontroller featuring the PIC16F series architecture, operating at 20 MHz frequency with 7kB of FLASH program memory. It is housed in a compact 14-pin SOIC surface mount package, designed for efficient embedded system solutions across diverse industrial and commercial applications.

This microcontroller supports a wide operating voltage range of 2.0 to 5.5 volts and provides a maximum power dissipation of 800mW, ensuring energy-efficient operation. With 256 bits of RAM and 256 bytes of EEPROM, it offers reliable data handling capabilities. The device incorporates 12 programmable I/O pins, giving flexibility for multiple interfacing needs.

Equipped with an Enhanced USART peripheral, the PIC16F688T-I/SL supports various communication protocols including RS232, RS485, and LIN, enabling robust serial communication. It integrates two analog comparators and features 8 channels of 10-bit ADC, allowing precise analog signal processing for sensor interfacing and control tasks.

The microcontroller also supports nanoWatt Technology for low power consumption, precision internal oscillators software selectable from 8 MHz down to 32 KHz, and has two timers for versatile timing operations. It complies with RoHS standards, assuring environmental compliance.

Features an 8-bit PIC device core for efficient embedded applications. Provides 7kB of FLASH program memory for code storage. Operates at a maximum clock frequency of 20 MHz for fast processing. Includes 256 bits of RAM and 256 bytes of EEPROM for data and program retention.

Supported with 12 programmable I/O pins for versatile interfacing. Equipped with Enhanced USART supporting RS232/485 and LIN protocols. Wide operating voltage range of 2.0 to 5.5 volts with 800mW max power dissipation. Includes 2 analog comparators and 8 channels of 10-bit ADC for analog input processing.

Compact 14-pin SOIC surface mount package with precise dimensions. Suitable for industrial, commercial, and embedded control applications.
