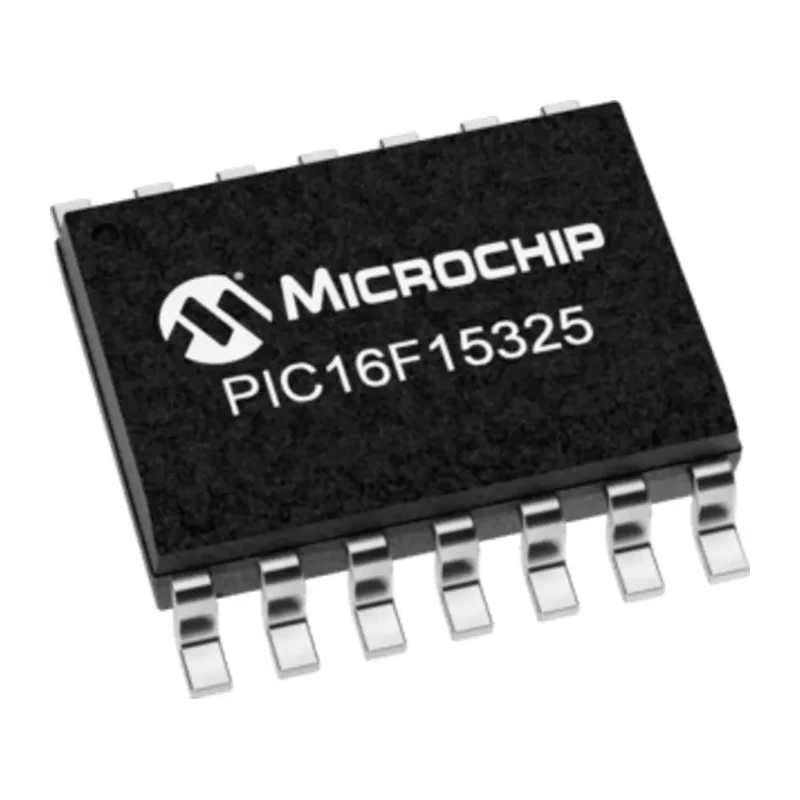

Microchip 8 bit PIC Microcontroller PIC16F15325-I/SL, 32 MHz, 14kB FLASH, 14-Pin SOIC
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F15325-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with a maximum supply voltage of 5.5V.
- Includes 1kB RAM for efficient data storage.
- Equipped with 2 analog comparators and 1 5-bit DAC for analog functionality.
- Contains 12 programmable I/Os and 2 timers for versatile control.
- Supports RISC instruction set architecture for optimized processing.
- Wide operating temperature range from -40°C to 85°C.
- Compact dimensions of 8.65mm length, 3.9mm width, and 1.5mm height.
- Program memory type is FLASH with self read/write capability.
Product Description
Microchip PIC16F15325-I/SL is an advanced 8 bit PIC Microcontroller combining eXtreme Low-Power (XLP) design and essential peripherals including Intelligent Analog and Core Independent Peripherals (CIPs). Operating at a maximum clock frequency of 32 MHz, it features 14kB FLASH program memory and 1kB RAM, delivering efficient performance in a compact 14-Pin SOIC package.
This microcontroller supports a wide operating voltage range from 1.8V to 5.5V and includes advanced analog features such as 2 analog comparators, a 5-bit Digital to Analog Converter (DAC), and 11 10-bit ADC channels with voltage reference, enabling precise analog signal processing for embedded applications.
Equipped with 12 programmable input/output pins, 2 timers, and a rich set of peripheral modules including Complementary Waveform Generator, Numerically Controlled Oscillator, and Configurable Logic Controller, it is well suited for low power, automotive, industrial, and consumer electronics applications.
Additional features include enhanced power-on/off-reset, programmable brown-out reset functions, peripheral pin select for flexible pin mapping, and low power modes such as IDLE and DOZE for energy efficiency.
With its compact dimensions (8.65mm length, 3.9mm width, and 1.5mm height) and surface mount SOIC package, the PIC16F15325-I/SL is ideal for space-constrained designs requiring robust microcontroller performance.
Operates with maximum 5.5V supply voltage and dissipates up to 800mW power. Supports 49 instruction enhanced mid-range core with 16 stack levels for efficient execution. Wide industrial operating temperature range from -40°C to 85°C ensures reliability.
Manufactured in Thailand under strict quality control. Suitable for industrial, automotive, consumer electronics, and embedded control applications.
This product is shipped new and ready for integration into advanced electronic designs. Shop with confidence and explore more Microchip Microcontrollers for your project needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 14kB, utilizing FLASH technology.
This microcontroller operates within a voltage range of 1.8V to 5.5V.
It is equipped with 12 programmable input/output pins.
The dimensions are 8.65mm in length, 3.9mm in width, and 1.5mm in height.
It includes 2 analog comparators and 1 5-bit Digital to Analog Converter (DAC).
The operating temperature range is from -40°C to 85°C.
This microcontroller has 2 timers for versatile control.
It supports a RISC instruction set architecture for optimized processing.
The maximum power dissipation is 800mW.
It is manufactured in Thailand under strict quality control.
It supports 11 channels of 10-bit Analog-to-Digital Converters (ADCs).
