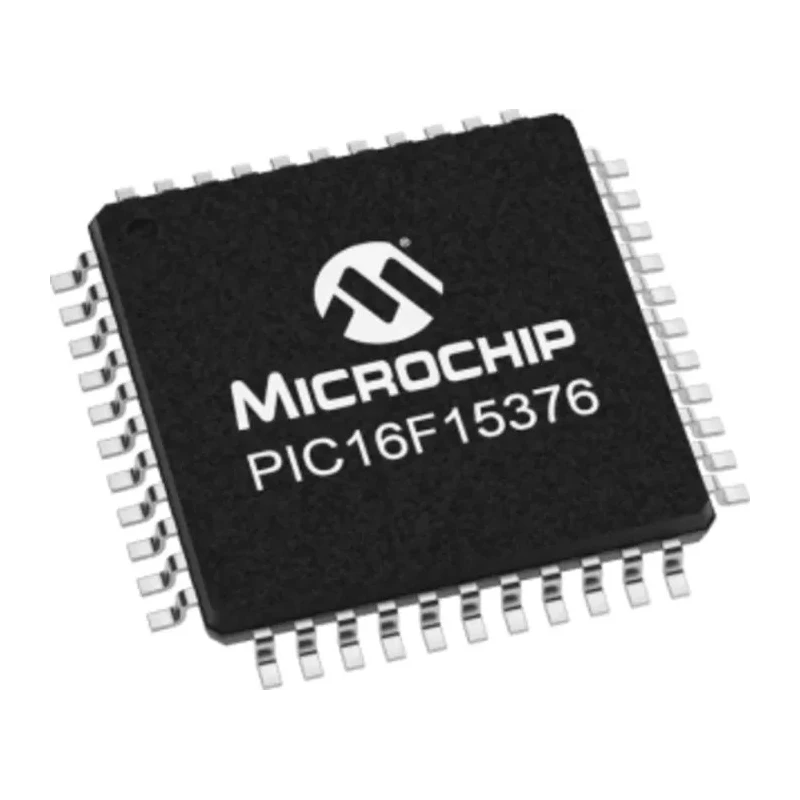

Microchip 8 bit PIC Microcontroller 32 MHz 28kB FLASH 44-Pin TQFP PIC16F15376-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC16F15376-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SPI, I2C, EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features 8-bit PIC architecture with 36 programmable I/Os.
- Includes 28kB ISP flash program memory and 2kB SRAM.
- Supports SPI, I2C, and EUSART interfaces for flexible communication.
- Operates at voltages from 1.8V to 5.5V and power dissipation up to 800mW.
- Equipped with 35 channel 10-bit ADC and a 5-bit DAC.
- Includes four configurable Logic Controller blocks and two 16-bit timers.
- Suitable for industrial and household embedded design applications.
- Complies with RoHS standards and operates in temperatures from -40°C to 85°C.
Product Description
Microchip PIC16F15376-I/PT is an 8-bit PIC microcontroller designed for embedded applications requiring efficient processing at moderate clock speeds. It features a 44-pin TQFP surface mount package with dimensions of 10mm by 10mm and a height of 1.05mm, facilitating compact board layouts.
Operating at a maximum clock frequency of 32 MHz, this microcontroller includes 28kB of flash program memory and 2kB of SRAM for robust program and data storage. It supports multiple communication interfaces including SPI, I2C, and EUSART, ideal for various peripheral interactions.
The device offers 36 programmable input/output pins, a 35-channel 10-bit ADC with voltage reference for precise analog signal measurements, and a 5-bit digital-to-analog converter (DAC) to output analog signals. Additionally, it integrates four configurable logic controllers and a complementary waveform generator, enhancing control and signal generation capabilities.
This PIC microcontroller is designed with low power consumption features including idle and doze modes, low-power brown-out reset, and an in-circuit serial programming interface to simplify development cycles. Operating temperature ranges from -40°C to 85°C make it suitable for demanding industrial and household environments.
Its enhanced RISC architecture with 49 instructions and 16 stack levels delivers reliable performance for a wide range of embedded design projects, including consumer appliances, industrial control systems, and automation solutions.
Features 8-bit PIC architecture with 36 programmable I/Os. Includes 28kB ISP flash program memory and 2kB SRAM. Supports SPI, I2C, and EUSART interfaces for flexible communication. Operates at voltages from 1.8V to 5.5V and power dissipation up to 800mW.
Equipped with 35 channel 10-bit ADC and a 5-bit DAC. Includes four configurable Logic Controller blocks and two 16-bit timers. Suitable for industrial and household embedded design applications. Complies with RoHS standards and operates in temperatures from -40°C to 85°C.
Compact 10mm x 10mm x 1.05mm TQFP surface mount package. Explore more Microcontrollers and embedded components on EnvMart to support your industrial and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
This model has dimensions of 10mm x 10mm with a height of 1.05mm.
It features 28kB of flash program memory.
The operating voltage range is from 1.8V to 5.5V.
It supports SPI, I2C, and EUSART interfaces for flexible communication.
The PIC16F15376-I/PT includes 36 programmable input/output pins.
The maximum power dissipation is 800mW.
It operates in temperatures ranging from -40°C to 85°C.
This microcontroller is equipped with a 35-channel 10-bit ADC.
It comes in a TQFP (Thin Quad Flat Package) format.
This model includes two 16-bit timers.
It complies with RoHS standards.
