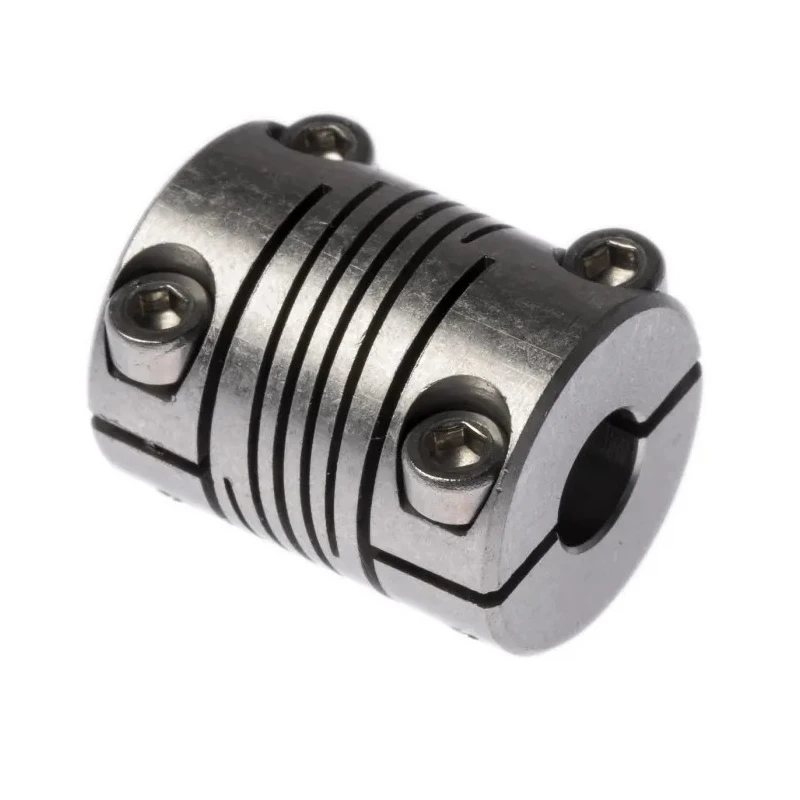

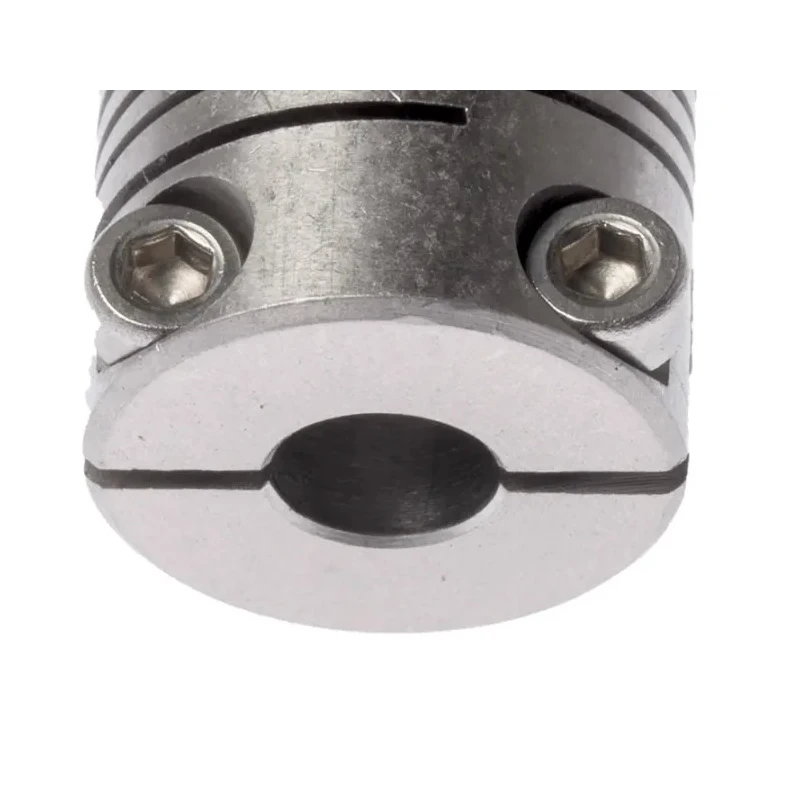

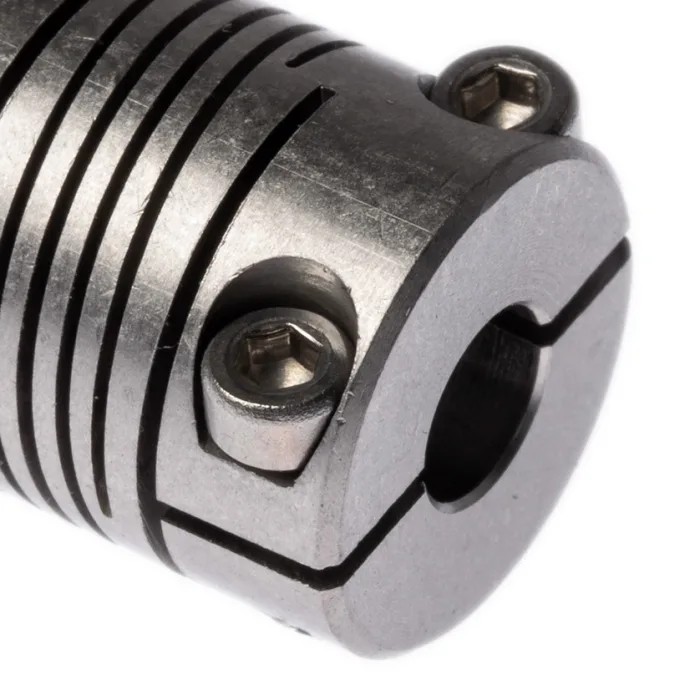

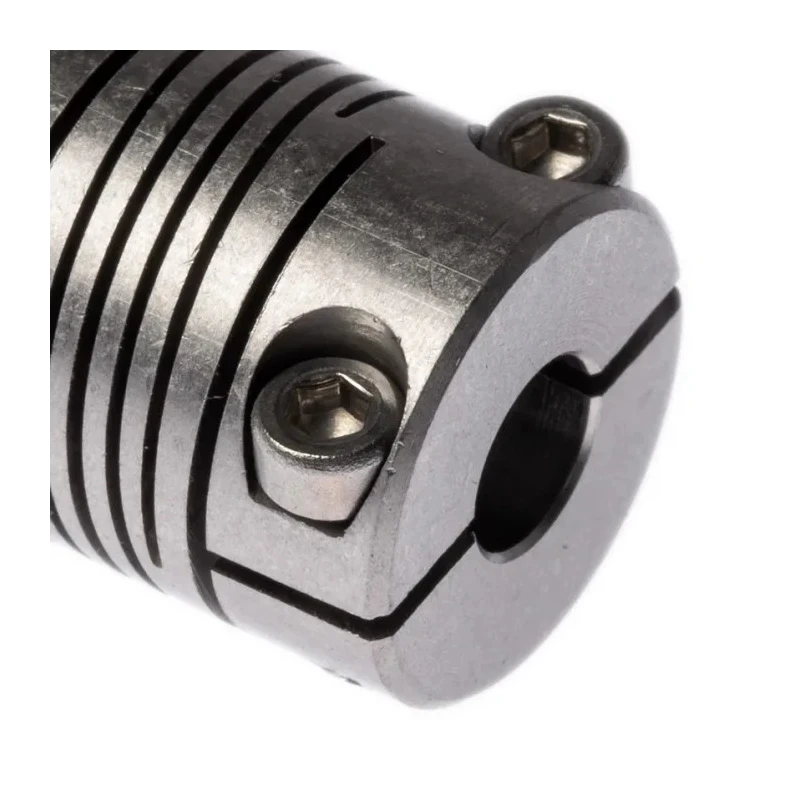

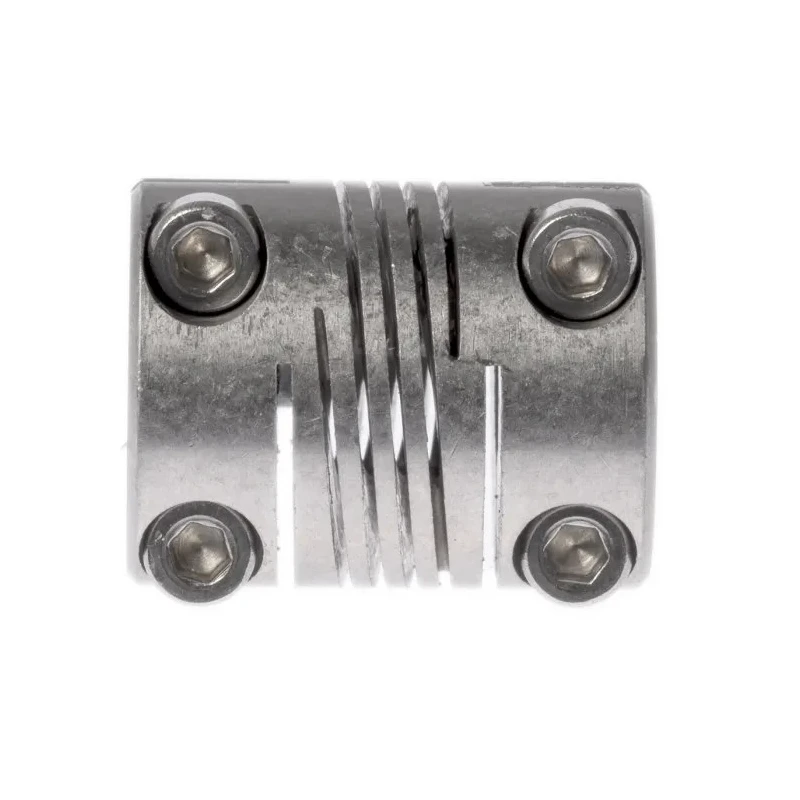

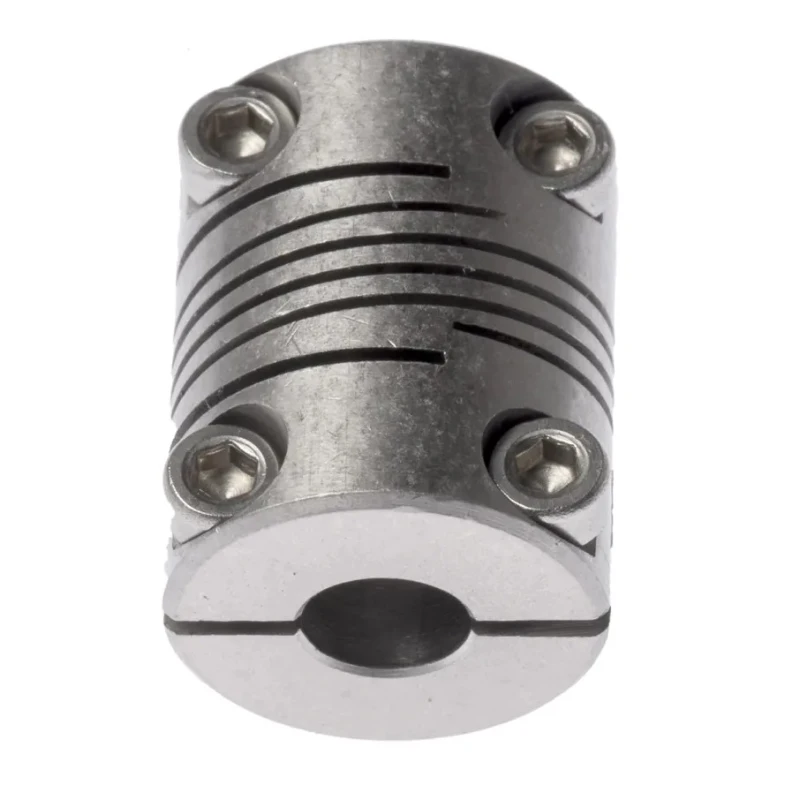

Huco Stainless Steel Clamp Flexible Coupler 15.9 mm OD 6 mm Bore Size 20.3 mm Length 721.16.2222

Huco 721.16.2222 stainless steel clamp flexible coupler features a precise 15.9 mm outside diameter with dual 6 mm bore sizes and a compact length of 20.3 mm. This multi-beam type 3 coupling design incorporates three helical cut beams, delivering superior torsional rigidity and zero backlash for high precision power transmission.

Its clamp style offers secure attachment and electrical isolation, ensuring reliability and safety in demanding industrial operations. The coupling is capable of handling angular misalignment up to 5 degrees and parallel misalignment of 0.12 mm. It operates efficiently at a maximum speed of 5000 rpm with a torque rating of 1.8 Nm.

Constructed from corrosion-resistant stainless steel, it withstands operating temperatures ranging from -40°C to 120°C without performance degradation. The design complies with international standards BS 46 Pt. 1 and ISO 77, 774 (BS 45 Pt. 1), ensuring quality and compatibility.

This coupling is ideally suited for applications requiring precision and durability such as high-end servo drives, pulse generators, scanners, positioning slides, and metering valves. Its low inertia and torque capabilities make it a reliable component in mechanical power transmission setups across industrial, laboratory, HVAC, and manufacturing environments.

With no moving parts, the coupling reduces maintenance needs while providing excellent kinematic properties for dynamic applications. Its multi-beam construction reduces wind-up compared to single beam couplings, enhancing system responsiveness and control.

Huco couplings represent a high-quality solution trusted in various sectors for efficient torque transmission and alignment compensation. Torsionally rigid multi-beam design with 3 helical beams. Clamp style providing zero backlash and electrical isolation.

Supports angular misalignment up to 5 degrees and parallel misalignment of 0.12 mm. Maximum operating speed of 5000 rpm, torque rating of 1.8 Nm. Operates in temperature range from -40°C to 120°C. Constructed from stainless steel for corrosion resistance and durability.

Complies with BS 46 Pt. 1 and ISO 77, 774 (BS 45 Pt. 1) standards. Ideal for precision applications requiring low inertia and high torque capacity. Applications include high-end servo drives, pulse generators, scanners, positioning slides, and metering valves.
