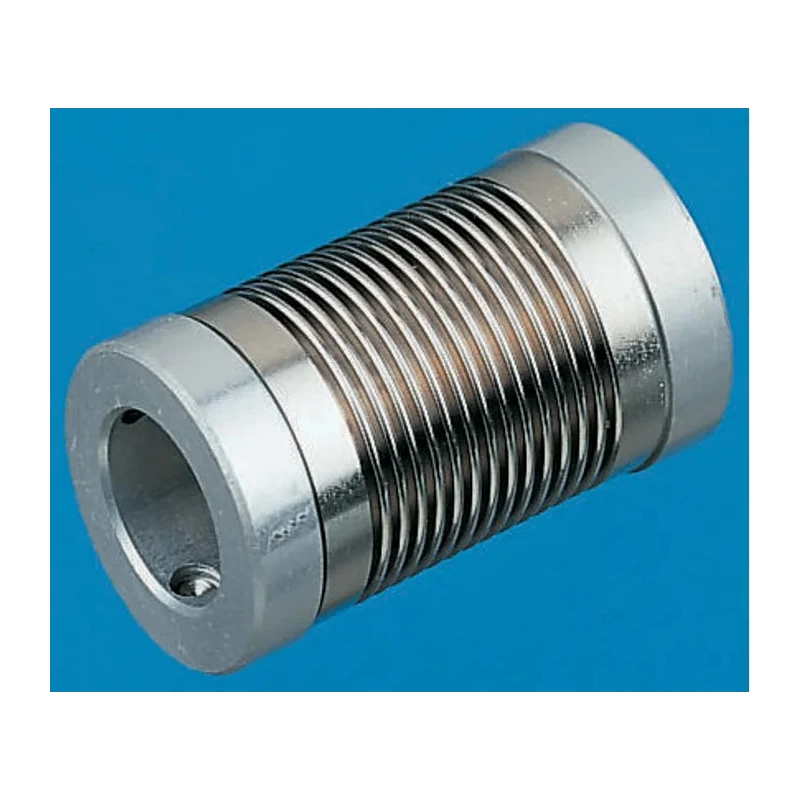

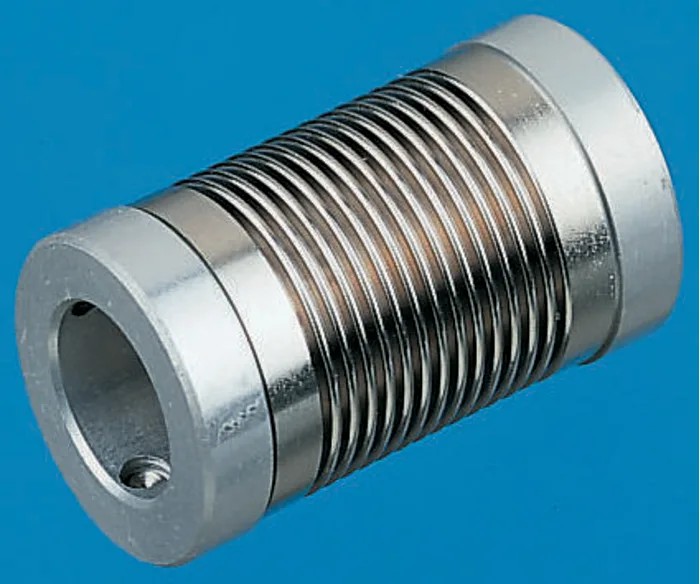

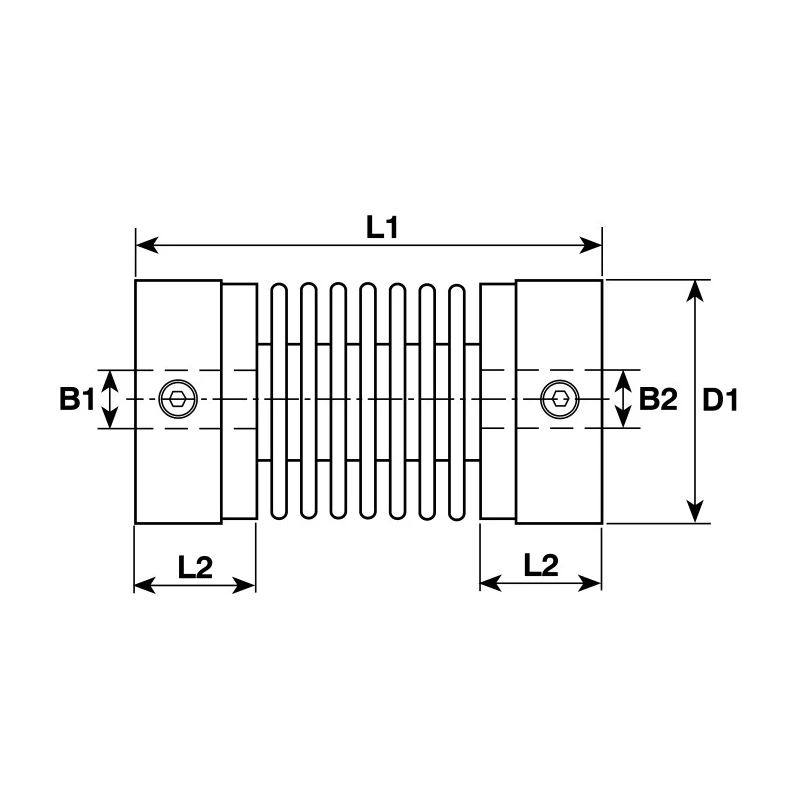

Huco Flexible Nickel Bellows Coupler 12 mm OD, 23 mm Length, Aluminium Hub, Screw Style 321.12.2224
Specifications
| Country of Origin | France |
|---|---|
| Screw Size | M2.5 |
| Brand | Huco |
| Length | 23mm |
| Maximum Speed | 5000rpm |
| Outside diameter | 12mm |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -50°C |
| Torque Rating | 79Ncm |
| Hub Material | Aluminium |
| Moment of Inertia | 18.53 x 10-8 kg/m² |
| Misalignment - Angular | 14° |
| Misalignment - Parallel | 1.6mm |
| Misalignment - Axial | 1.72mm |
| Bellows Material | Electrodeposited Nickel |
Key Features
- The coupler features a high torsional stiffness and excellent motion translation accuracy.
- Constructed with an aluminium hub and electrodeposited nickel bellows material.
- Designed for screw style fixing with M2.5 screws for secure installation.

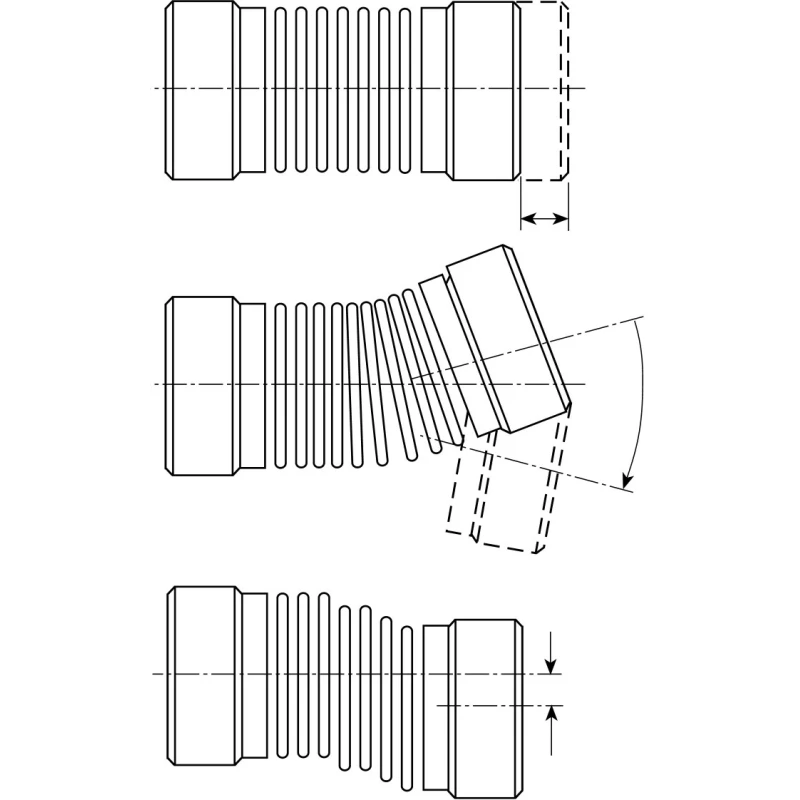

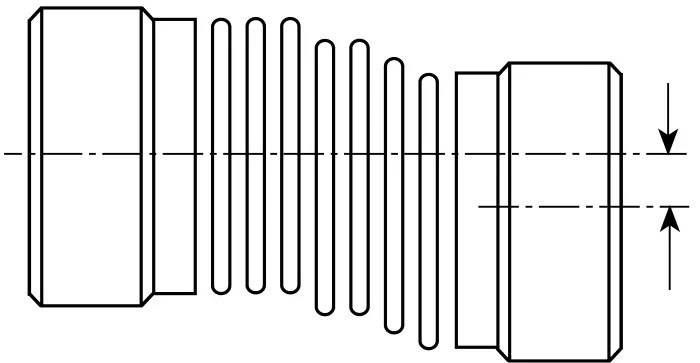

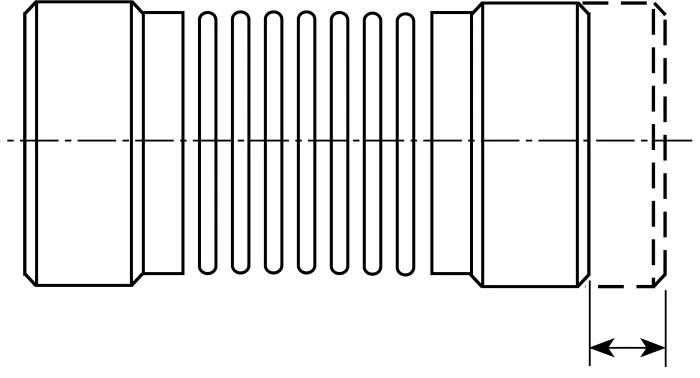

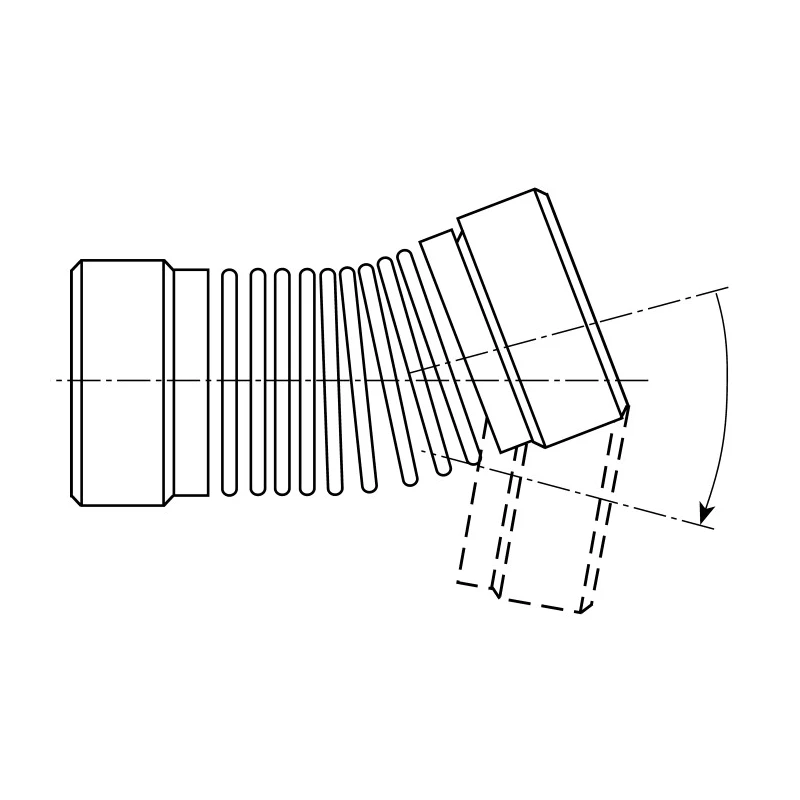

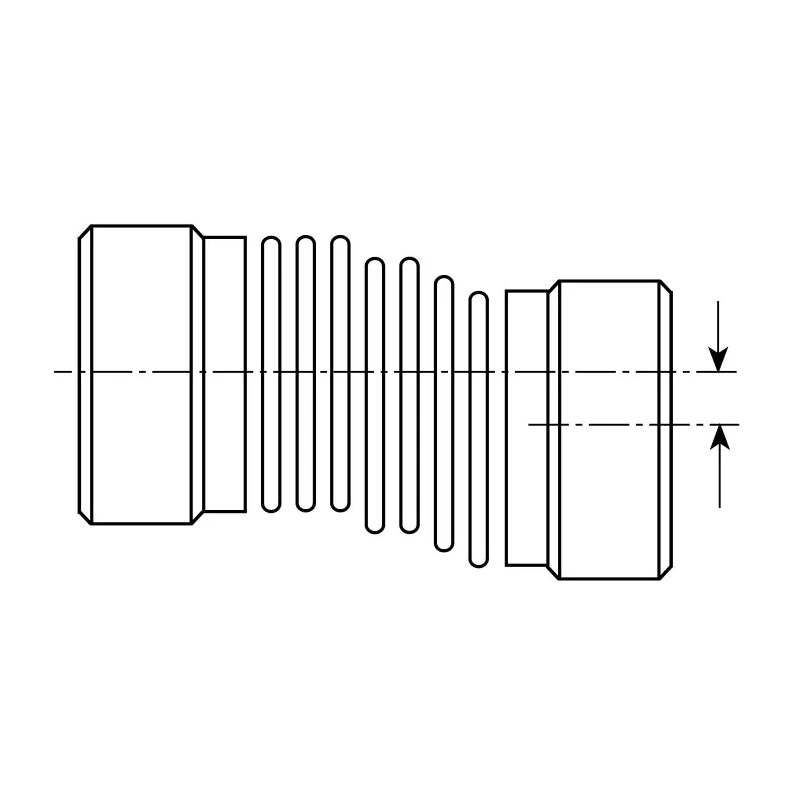

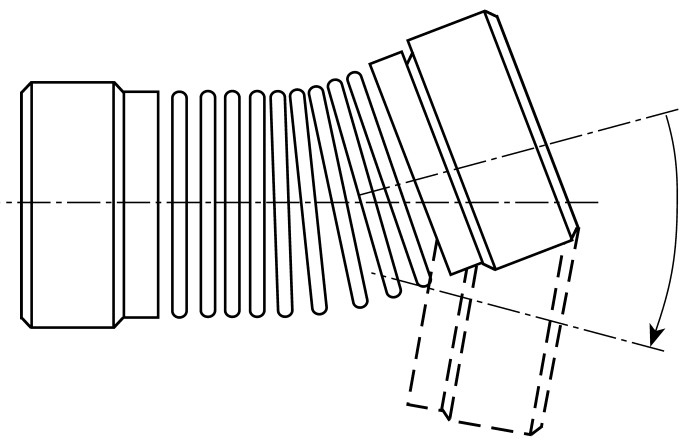

- Allows angular misalignment up to 14°, parallel misalignment of 1.6 mm, and axial misalignment of 1.72 mm.
- Supports maximum rotational speed up to 5000 rpm and torque rating of 79 Ncm.
- Operates reliably in temperatures ranging from -50°C to 120°C.
- Complies with standards 774 (BS 45 Pt. 1), BS 46 Pt. 1, and ISO 77.
- Originates from France, suitable for precision instrument drive applications.
Product Description
Huco 321.12.2224 flexible nickel bellows coupler features a 12 mm outside diameter and 23 mm length, designed for flexible shaft connection with high torsional stiffness and precision motion translation.

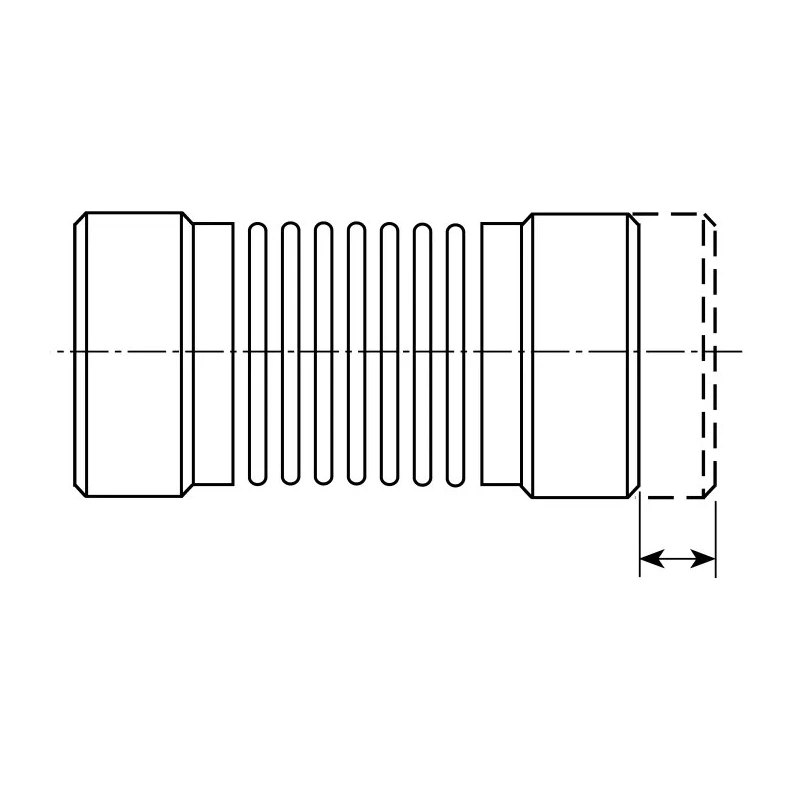

The aluminium hub and electrodeposited nickel bellows allow it to accommodate angular, parallel, and axial misalignments efficiently, offering 14° angular, 1.6 mm parallel, and 1.72 mm axial misalignment tolerances.
This screw style coupler uses M2.5 screws for secure hub fixation. It supports a maximum speed of 5000 rpm and has a torque rating of 79 Ncm, making it ideal for drives involving precise instruments and mechanical power transmission.
Its operating temperature range spans from -50°C to 120°C, ensuring reliable performance in varied industrial conditions. High torsional stiffness for accurate power transmission. Electrodeposited nickel bellows for flexible shaft coupling.
Suitable for angular, parallel, and axial misalignments. Complies with BS 45 Pt. 1, BS 46 Pt. 1, and ISO 77 standards. Constructed with durable aluminium hub material. Designed for precision mechanical and fluid power systems.
Ideal for use in mechanical power transmission industrial applications.
Set your projects up for precise and reliable shaft coupling performance with the Huco 321.12.2224 flexible coupler. Explore more high-quality mechanical power transmission components with EnvMart’s extensive catalog.
Explore more products in our Mechanical Power Transmission Couplers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum rotational speed of 5000 rpm.
The torque rating is 79 Ncm.
It has an outside diameter of 12 mm and a length of 23 mm.
It features an aluminium hub and electrodeposited nickel bellows material.
It operates reliably in temperatures ranging from -50°C to 120°C.
It allows for angular misalignment up to 14°, parallel misalignment of 1.6 mm, and axial misalignment of 1.72 mm.
This coupler uses M2.5 screws for secure installation.
It complies with standards BS 45 Pt. 1, BS 46 Pt. 1, and ISO 77.
The moment of inertia is 18.53 x 10^-8 kg/m².
It originates from France.
It is designed for precision instrument drive applications and mechanical power transmission.
It features high torsional stiffness and excellent motion translation accuracy.
