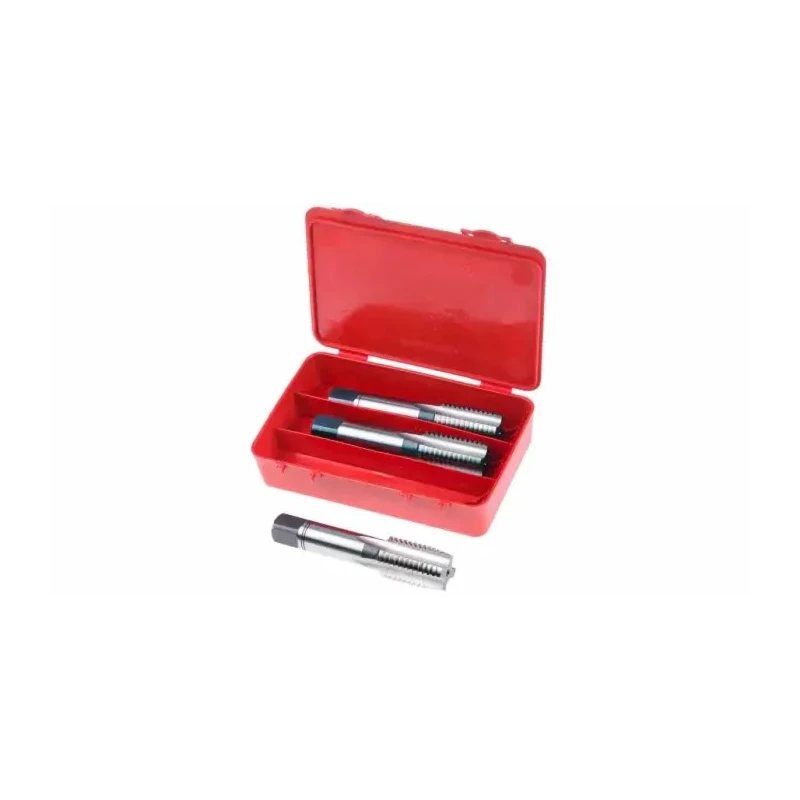

Dormer M8 Thread Metric Standard Hand Tap Set, Straight Flute, HSS, ISO 529, DIN 352 E100M8NO8

Free Delivery in India | Lowest Global Shipping Charges

Dormer M8 Thread Metric Standard Hand Tap Set, Straight Flute, HSS, ISO 529, DIN 352 E100M8NO8

Name: Dormer M8 Thread Metric Standard Hand Tap Set, Straight Flute, HSS, ISO 529, DIN 352 E100M8NO8
Brand: Dormer
SKU: 317440
Price: 53.91 USD
Availability: InStock



Category Threading Tap Set Brand Dormer Condition New

Specifications

Country of Origin	Italy
Brand	Dormer
Material	HSS
Model	E100M8NO8
Standard	DIN 352
Overall Length	63mm
Thread Size	M8
Sub Type	Straight Flute
Shank Diameter	6mm
Number of Pieces	3
Pitch	1.25mm
Standards/Approvals	ISO 529
Thread Standard	Metric
Thread Direction	Right Hand
Hand/Machine Tap	Hand Tap
Straight Flute Taps	most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool
Spiral Point Taps	suitable for threading through holes. They push chips through holes ahead of the tool
Spiral Flute Taps	intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole
Forming Taps	produce a thread by pressing the material rather than cutting and no chips are created
RS PRO Tap Set, M8 Thread, Metric Standard, Hand TapBrand	RS PRO

Key Features

This set includes taper, intermediate, and finishing tap bits suitable for blind or through holes.
Each tap features right-hand thread direction for clockwise tightening.
The set has an overall length of 63 mm and a shank diameter of 6 mm.
The taps comply with DIN 352 standard and have a pitch of 1.25 mm with tolerance class 6H.
Ideal for threading bolts in metals and plastics in engineering and manufacturing applications.
Made in Italy to ensure high durability and corrosion resistance.

Product Description

Dormer E100M8NO8 is a premium M8 Thread Metric Standard Hand Tap Set comprising three hand taps designed for precision threading. Manufactured from high-speed steel (HSS), these taps offer excellent durability and resistance to corrosion.

The set contains taper, intermediate, and finishing taps with straight flutes, making them suitable for creating threads in both blind and through holes. They conform to ISO 529 and DIN 352 standards, ensuring compatibility and quality. Each tap has a right-hand thread direction designed to tighten clockwise, with an overall length of 63 mm and a shank diameter of 6 mm.

Threading taps like these are indispensable in engineering and manufacturing for producing threaded holes in metals and plastics. They work by cutting threads to create nut and bolt compatibility. The taper tap features an initial pitch of 5 threads, the intermediate 3.5 threads, and the finishing tap 2 threads, delivering stepwise threading accuracy with a tolerance class of 6H and a cutting angle of 10° for efficient chip removal.

The straight flute design collects chips effectively during cutting, making the set highly versatile for general mechanical workshop needs. This product is made of robust high-speed steel for durability and corrosion resistance.

It includes taper, intermediate, and finishing taps for comprehensive threading. Suitable for threading in metals and plastics with metric standard M8 pitch (1.25 mm). Conforms to ISO 529 and DIN 352 quality standards. Designed for right-hand threading to tighten clockwise.

Applicable in industries such as engineering, manufacturing, and maintenance.

The Dormer E100M8NO8 tap set is an essential tool for professionals requiring reliable and accurate threading taps compliant with international standards. Explore EnvMart categories for a wide range of hand tools and threading equipment to fulfill your industrial requirements.
