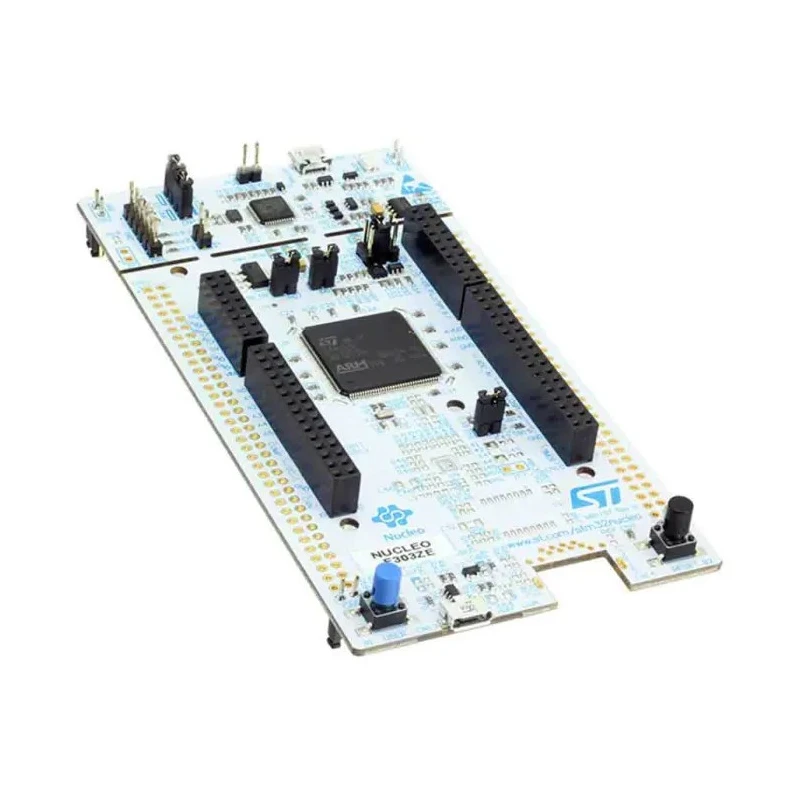

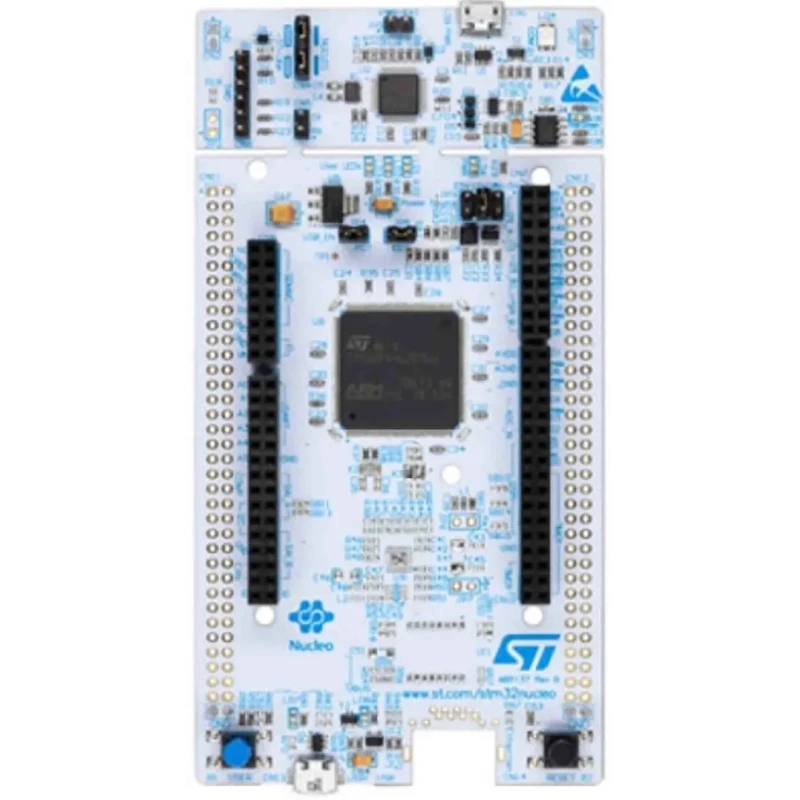

STMicroelectronics STM32 Nucleo-144 MCU Development Board with STM32F303ZET6 72MHz Cortex-M4F Microcontroller NUCLEO-F303ZE

STMicroelectronics NUCLEO-F303ZE MCU Development Board is equipped with an STM32F303ZET6 72MHz ARM Cortex-M4F microcontroller featuring 512KB Flash memory and 80KB Parity SRAM. Designed for high performance and flexible embedded applications, this development board offers comprehensive support for engineers working in electronic and embedded systems development.

The development board integrates the ST Zio connector, providing full access to all GPIOs along with Arduino Uno Rev 3 shield compatibility. It also features ST morpho headers that expand the board’s connectivity options further, allowing integration with various proprietary and third-party extension shields to enhance functionality.

This board includes an ST-LINK/V2-1 debugger/programmer with a single-wire debug (SWD) connector, facilitating easy programming and debugging experiences directly interfaced through USB. The USB interface supports virtual COM port, mass storage, and debug port functionalities, enabling versatile development workflows.

The NUCLEO-F303ZE board supports flexible power options via USB OTG or device full-speed micro-AB connectors. It also offers an IEEE-802.3-2002 compliant Ethernet connector for networked applications, making it suitable for IoT and communication projects.

Onboard user-friendly features include three LEDs indicating power status, USB communication, and user-defined signals, as well as USER and RESET push buttons for interactive control. A 32.768 KHz crystal oscillator ensures precise timing functions.

The STM32F3 series microcontroller offers advanced mixed-signal capabilities including DSP and FPU instructions, fast comparators, programmable gain amplifiers, fast 12-bit ADCs and DACs, and advanced motor control timers, making this board suitable for industrial, laboratory, and embedded applications.

Equipped with STM32F303ZET6 microcontroller running at 72 MHz for high-performance applications. Supports Arduino Uno Rev 3 shield connectivity via ST Zio connector for extensive peripheral access. Includes ST morpho extension pin headers to expand board functionality with custom shields.

Integrated ST-LINK/V2-1 debugger/programmer with SWD connector enables easy programming and debugging. Offers multiple USB interfaces including virtual COM port, mass storage, and debug port. Features IEEE-802.3-2002 compliant Ethernet connector for network connectivity.

Board powered flexibly via USB OTG or device full speed Micro-AB connector. Includes user-friendly features such as three LEDs for power, USB communication, and user indication. Provides USER and RESET push buttons and a 32.768 KHz crystal oscillator for clock accuracy.

Fully supported by ARM mbed online resources and STM32 comprehensive HAL software library.

This STMicroelectronics NUCLEO-F303ZE Development Board is an excellent choice for projects in industrial control, medical instrumentation, consumer electronics, and educational development environments. Its extensive peripheral support and flexible power supply make it adaptable to a wide range of embedded system designs.
