SMC Toggle Lever Mechanical Pneumatic Valve , VM400 Series, Rc 1/8, 3/2 Function, Aluminium Alloy Body, 1 MPa, 338.77 NL/min

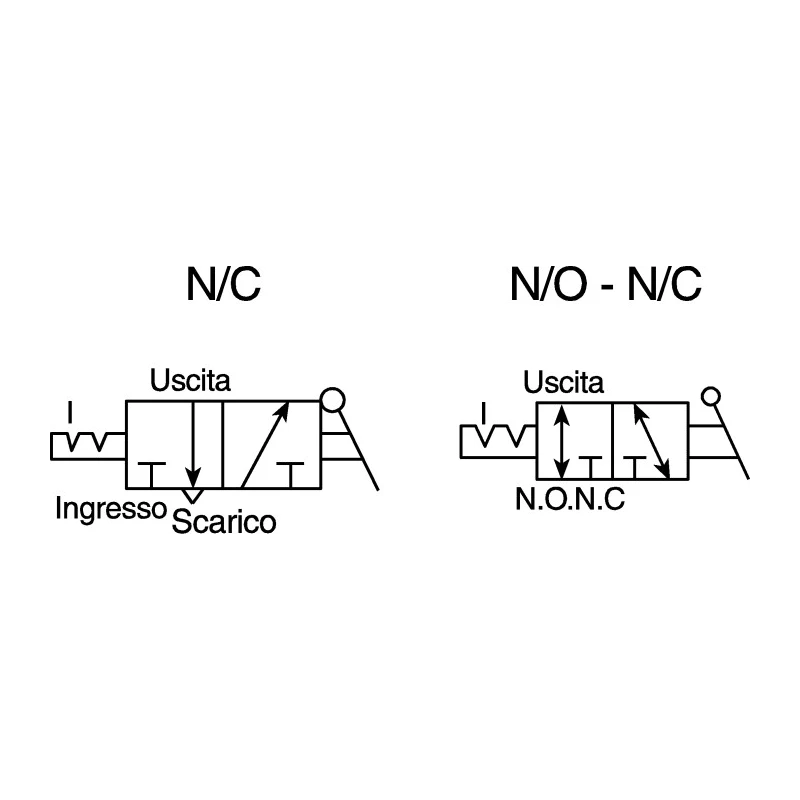

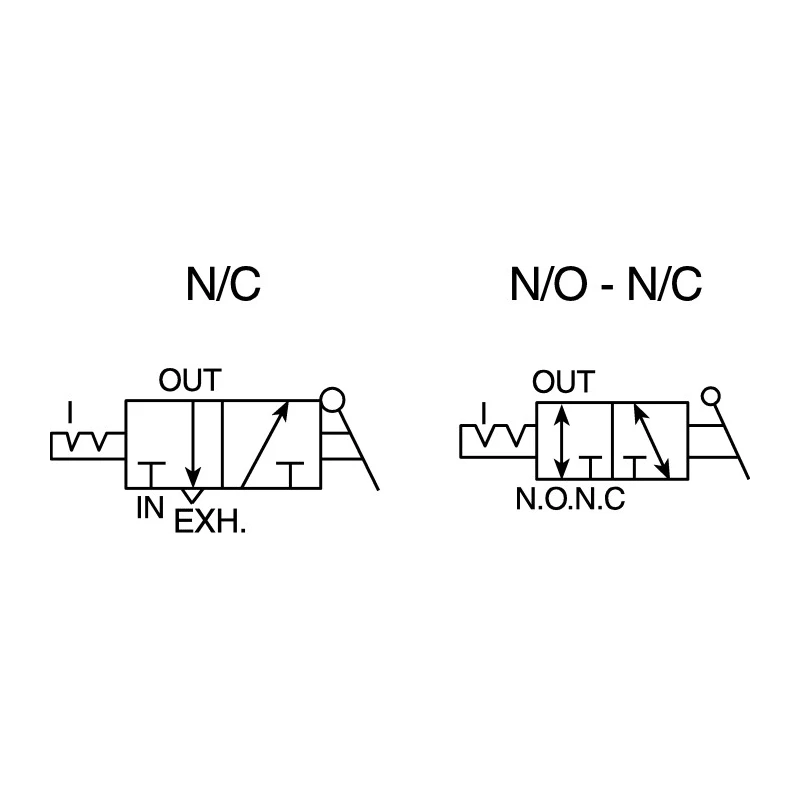

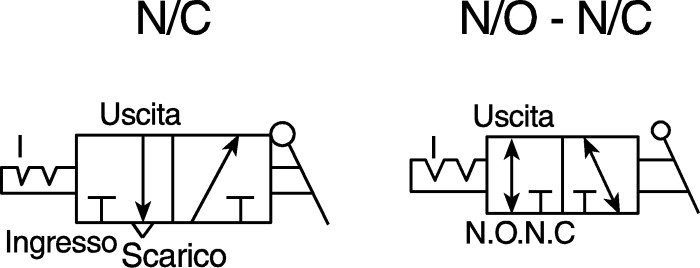

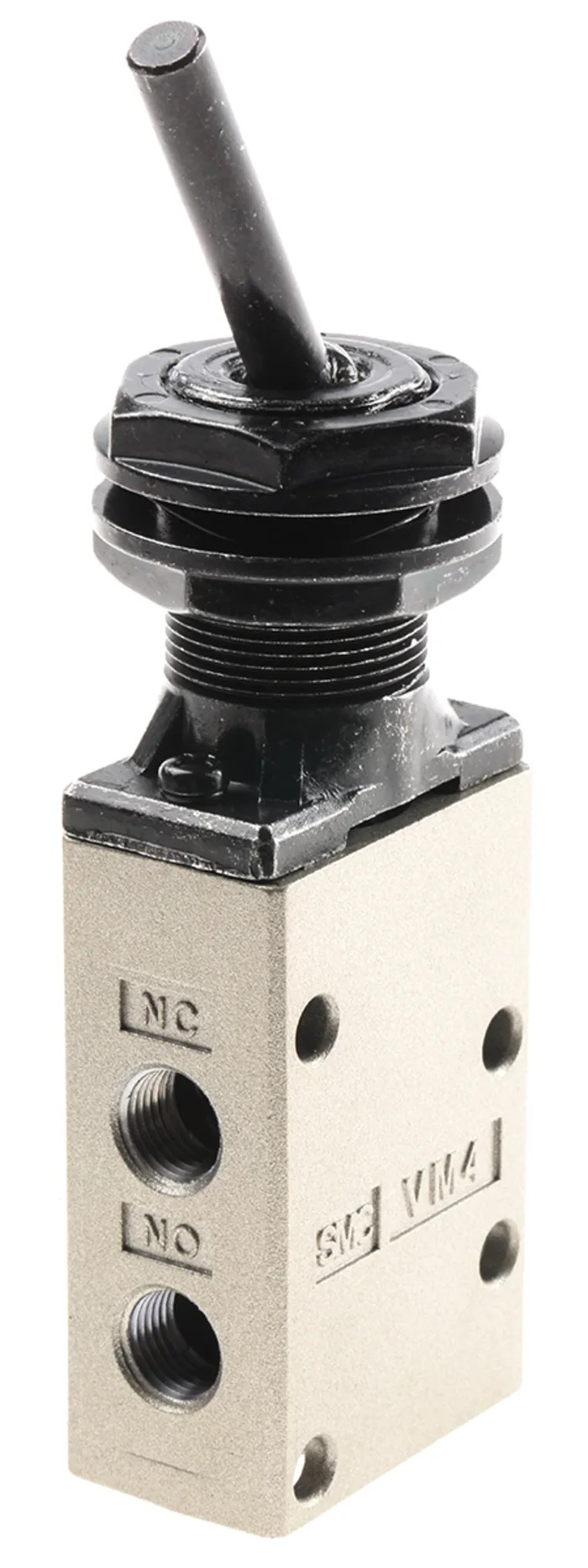

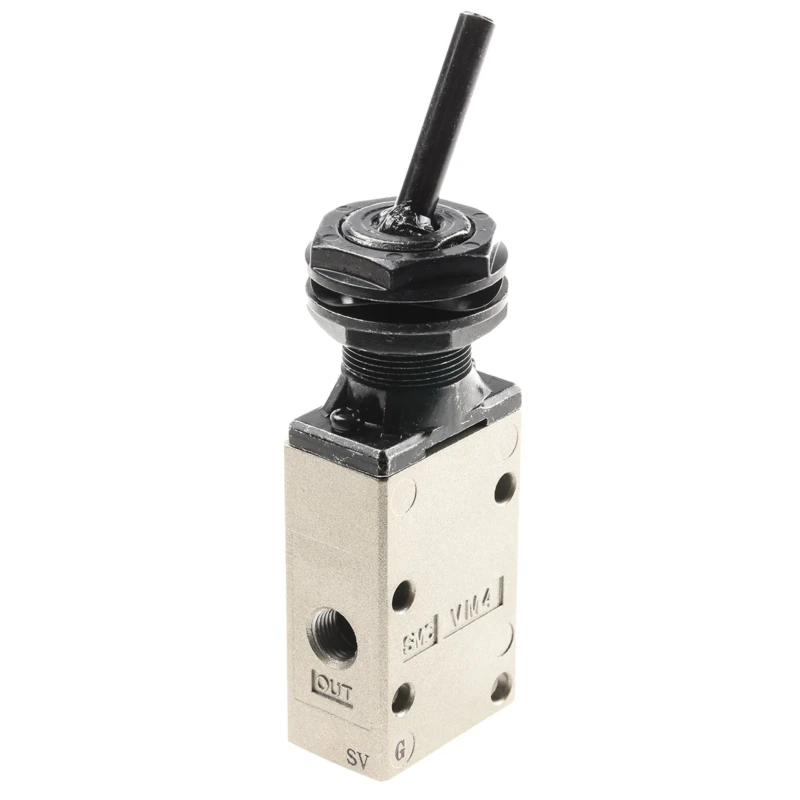

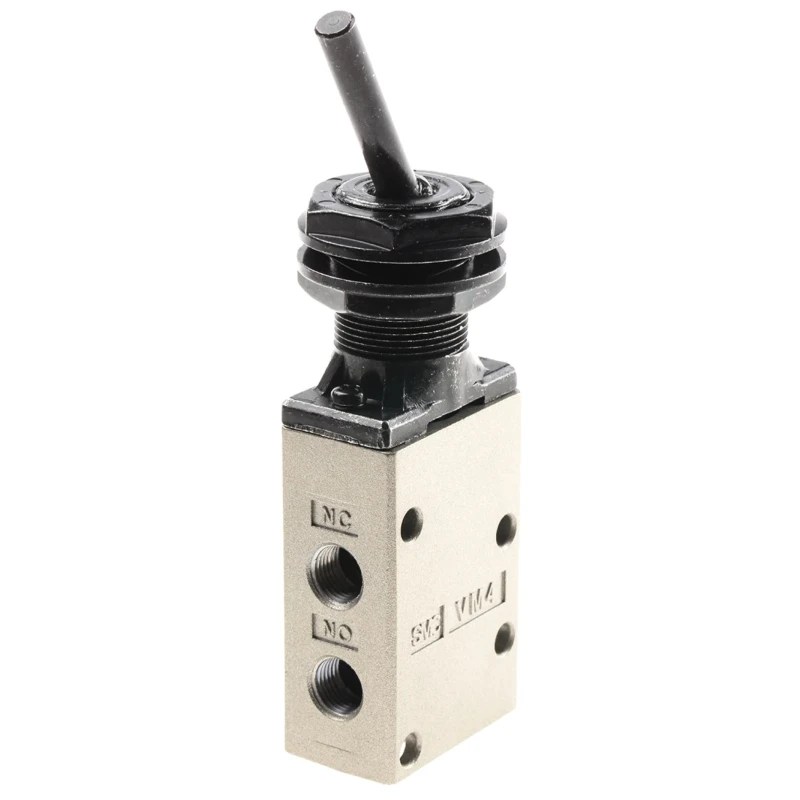

SMC VM430-01-08 Toggle Lever Mechanical Pneumatic Valve belonging to the VM400 Series is designed for efficient manual control of compressed air in industrial pneumatic systems. With a 3/2 valve function, it offers precise on/off switching using a robust toggle lever actuator.

The valve's port size is Rc 1/8 with standardized Rc 1/8 thread connections, ensuring compatibility with common pneumatic plumbing requirements. Its aluminium alloy body provides an excellent balance of lightweight construction and structural strength, making it suitable for installations where space is limited.

Engineered to operate within a temperature range from -5°C to +60°C, the valve maintains reliable functionality under varied environmental conditions. It is rated for a maximum operating pressure of 1 MPa, supporting moderate pneumatic pressures.

The valve delivers a maximum flow rate of 338.77 NL/min, which facilitates efficient air delivery for moderate-demand pneumatic circuits. The toggle lever actuator allows straightforward manual operation, offering flexible mounting orientations where manual access is available.

Typical applications include compact pneumatic control panels, actuation of small pneumatic cylinders, tooling fixtures needing manual intervention, bench testing of pneumatic components, and automated production lines requiring discrete three-port pneumatic valve control.

The valve features a toggle lever control mechanism for manual pneumatic actuation. Maximum operating pressure capability up to 1 MPa supports industrial pneumatic demands. Efficient maximum flow rate of 338.77 NL/min ensures optimal air throughput.

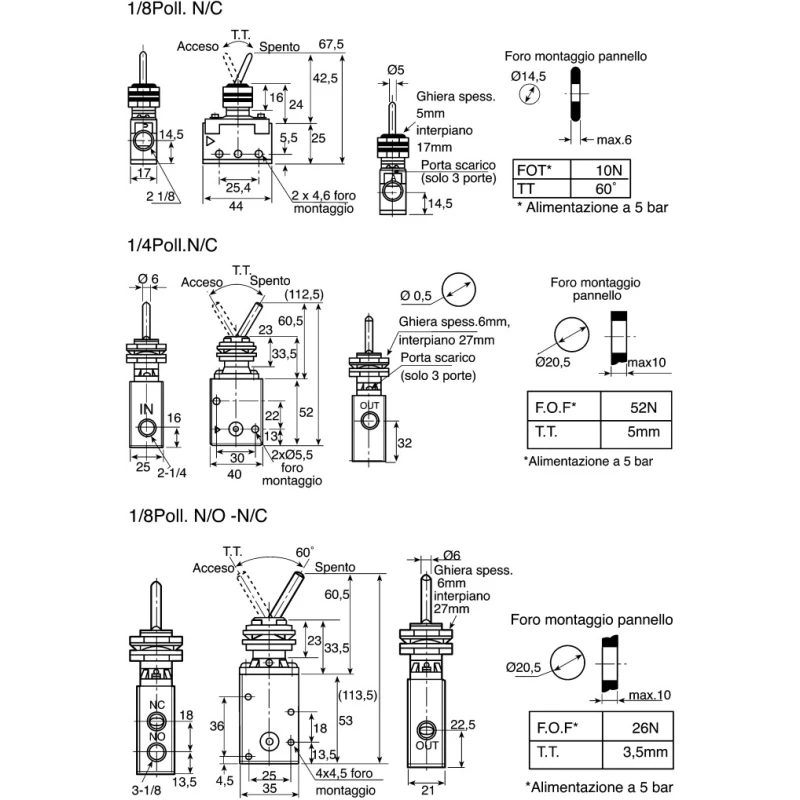

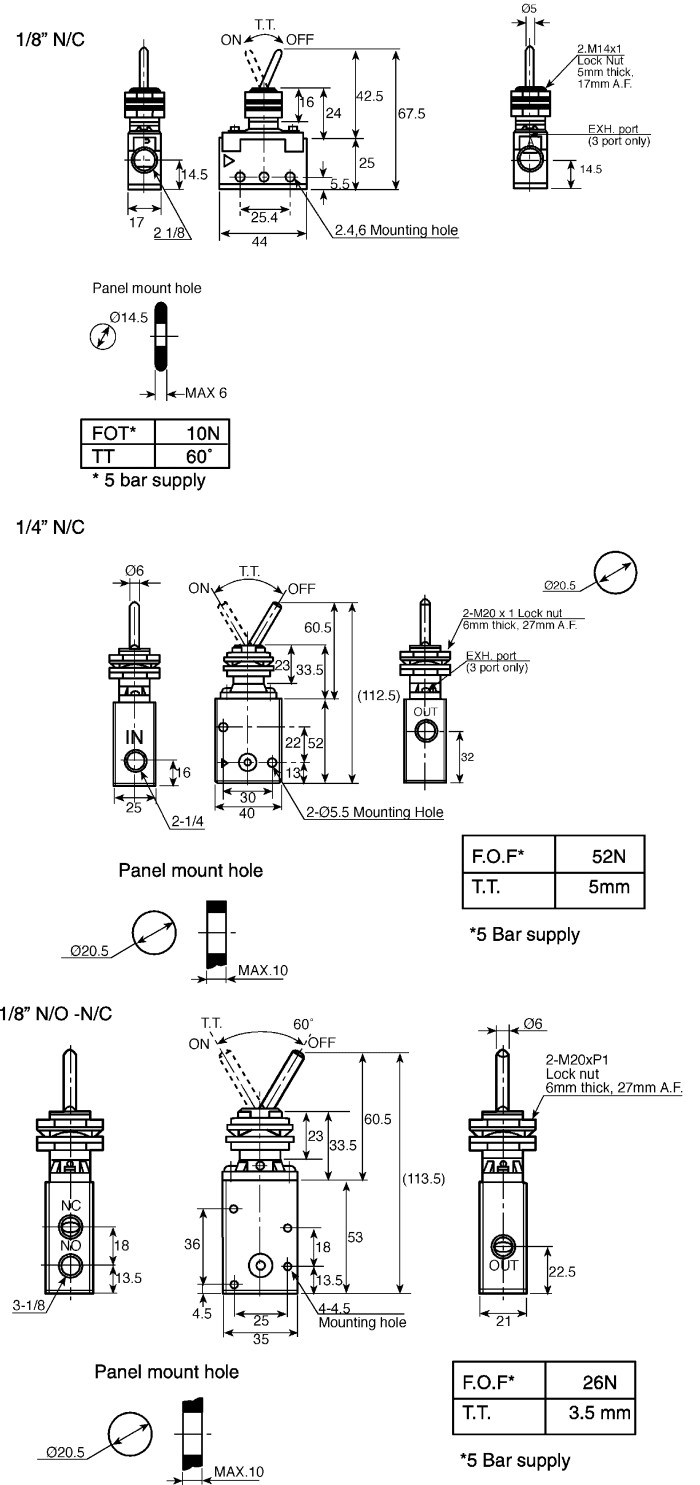

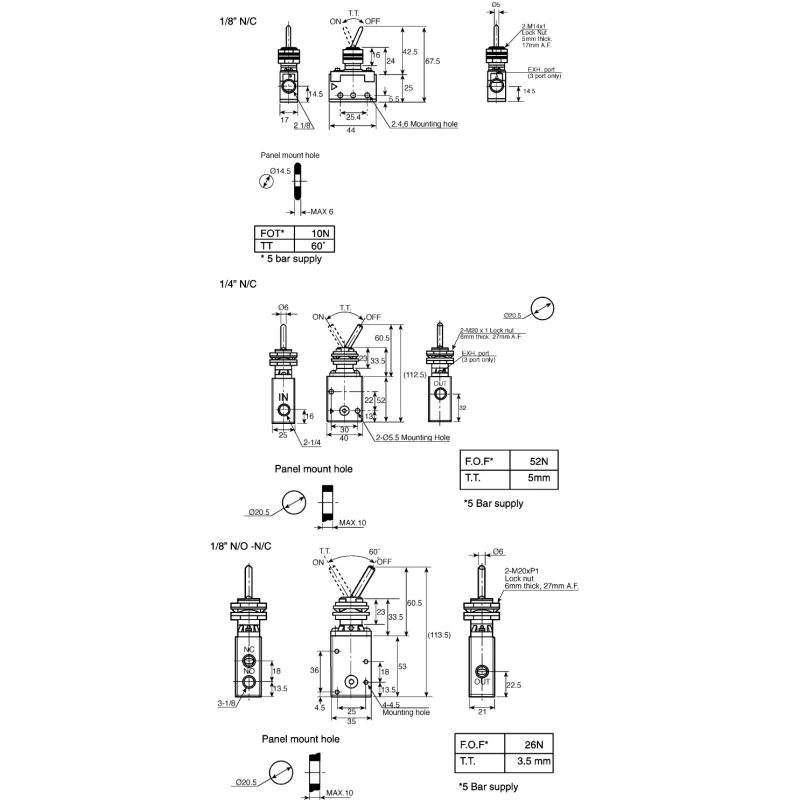

Durable aluminium alloy body offers lightweight and structural reliability. Certified for reliable operation between -5°C and +60°C ambient temperatures. Compact footprint with height 113.5mm, length 35mm, width 21mm fits constrained spaces.

Three-port design with Rc 1/8 threaded connections adhere to standard pneumatic plumbing. Suitable for use in machine control panels, pneumatic testing and tooling actuation. Provides dependable manual pneumatic control for various industrial applications.

This SMC mechanical valve is a reliable choice for Pneumatic Manual Control Valve applications across industrial, manufacturing, automation, and testing use cases. Explore the full range of SMC pneumatic valves for compatible integration with your pneumatic systems on EnvMart.
