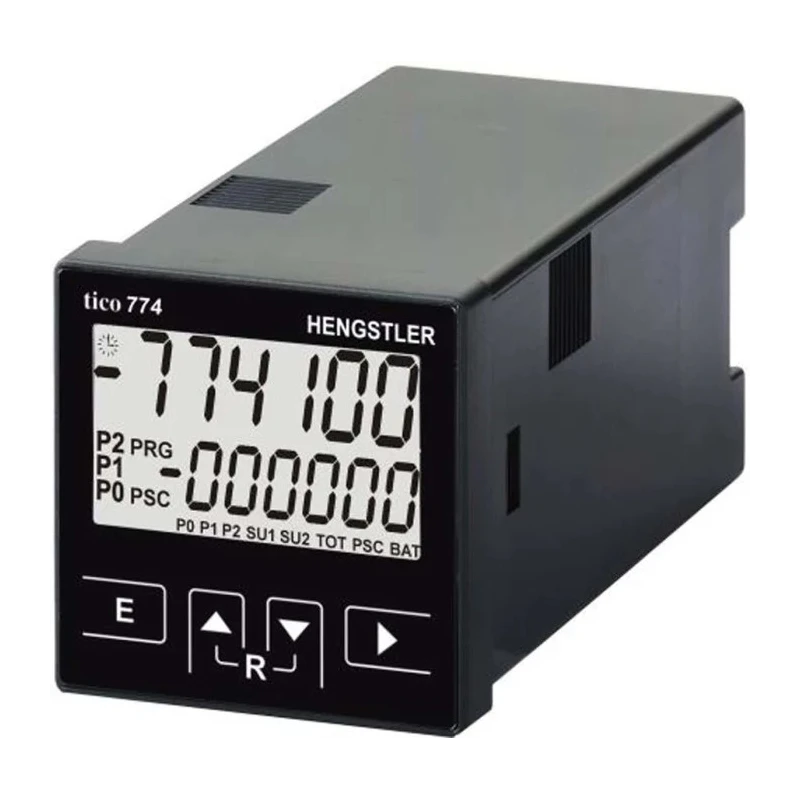

Hengstler Multifunctional Panel Mount 6 Digit Counter 6-Digit Display RS0774502

Hengstler RS0774502 multifunctional panel mount 6 digit counter is engineered for industrial use including time control, position indication, batch counting, cutting to length, and rotation speed controlling. Suitable for various automation and control processes, it combines versatility with precision.

This counter displays six large digits clearly on an LCD screen with a display and preset range from -999 999 to +999 999, enabling detailed and accurate counting and timing operations.

The unit supports input frequencies up to 60 kHz, making it ideal for fast-paced industrial environments. Safety and control are enhanced by relay outputs rated at 250Vac / 30Vdc / 5A and alarm signals that flash when presets 0, 1, or 2 are active.

Designed for easy use, it features four direct keys for programming presets, prescaler values, and totalizing functions, simplifying setup and operation. The unit’s IP65 rated front panel protects against dust and water ingress, suitable for harsh industrial settings.

Installation is streamlined by pluggable terminals, ensuring quick and secure electrical connections. Manufactured in Germany, this Hengstler model delivers exceptional durability and compliance with industry standards including CSA, EN 61010-1, IEC, IEC 61010-1, RoHS, and UL.

Universally applicable as tachometer, timer, shift-counter, and batch-counter. Clear 6-digit LCD display with large digits. Input frequency capability up to 60 kHz. Relay outputs rated at 250Vac / 30Vdc / 5A. Programmable presets with four function keys.

IP65 front panel protection. Alarm signal indication with flashing display. Easy installation with pluggable terminals. Complies with multiple international standards and RoHS.

This Hengstler 6 digit counter is preferred in industrial automation, process control, manufacturing, laboratory instrumentation, and other technical fields requiring accurate and reliable counting and timing.
