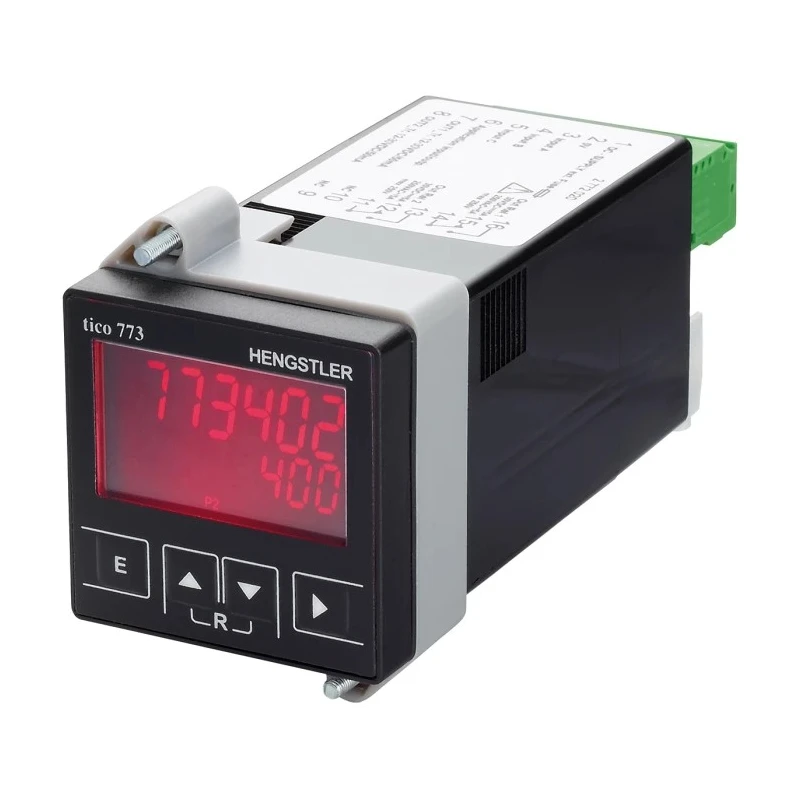

Hengstler Multifunctional 6 Digit Timer and Counter TICO 773 , Relay Outputs 250 V AC / 30 V DC 5A, IP65 Front RS0773442

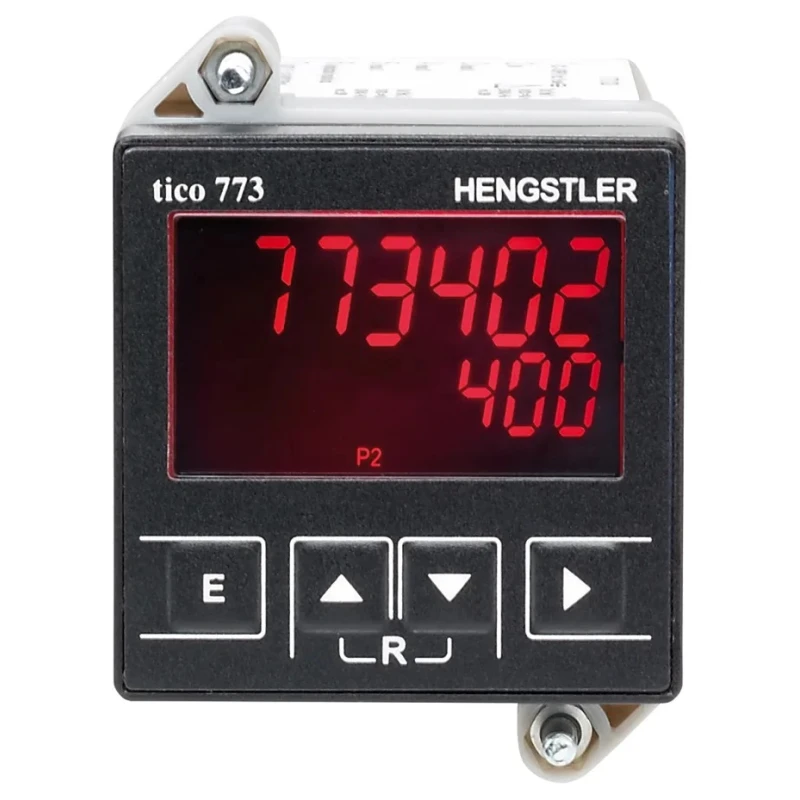

Hengstler RS0773442 is a multifunctional 6 digit counter and timer from the TICO 773 series. Designed with precision and versatility, it serves as a tachometer, timer, shift-counter, and batch-counter in industrial and process control environments. The device features a large, clear LCD display capable of showing counts from -999 999 to +999 999, allowing easy readability for operators.

Equipped with relay outputs rated at 250 V AC and 30 V DC at 5A, it offers robust signal switching capabilities. The counter supports input frequencies up to 60 kHz and includes three presets with separate adjustment options for signal 1, trailing preset, range, or limit values. Its alarm system provides visual alerts by flashing the display when preset conditions 0, 1, or 2 are triggered.

The device ensures simplified handling via four keys dedicated to presets, prescaler settings, and a separate totalizer. Its pluggable terminals facilitate easy installation and maintenance, while the IP65 rated front panel guards against dust and water ingress, suitable for harsh industrial conditions.

Typical applications for the Hengstler TICO 773 include time controlling, position indication, batch counting, cutting to length processes, and rotation speed control in manufacturing, processing, and automation settings.

Manufactured in Germany, this counter meets international standards such as CSA, IEC 61010-1, UL certification, and RoHS compliance, ensuring safety and environmental adherence. The unit has a multifunctional display supporting negative and positive six-digit counting.

It allows separate preset adjustments improving operational flexibility. Relay outputs provide reliable switching for external devices. Alarm signals visually indicate preset activations enhancing monitoring safety. Compact panel mounting size of 48 x 48 mm optimizes installation space.

Designed for easy programming and maintenance with four control keys and pluggable terminals. IP65 front panel classification offers protection suited for industrial environments.

This Hengstler Counter is ideal for industrial, laboratory, automation, and manufacturing facilities requiring precision counting and timing instruments. For more advanced automation and control gear, browse the Hengstler brand collection and the Automation & Control Gear category at EnvMart.
