| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.75mm |
| Model | 267-3644 |
| Insulation | Insulated |
| Overall Length | 20.4mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 267-3644 |
| RS stock no | 270-7634 |
| Outer Ring Diameter | 6.6mm |
| Inner Ring Diameter | 3.7mm |
| Stud Size | M3.5 |

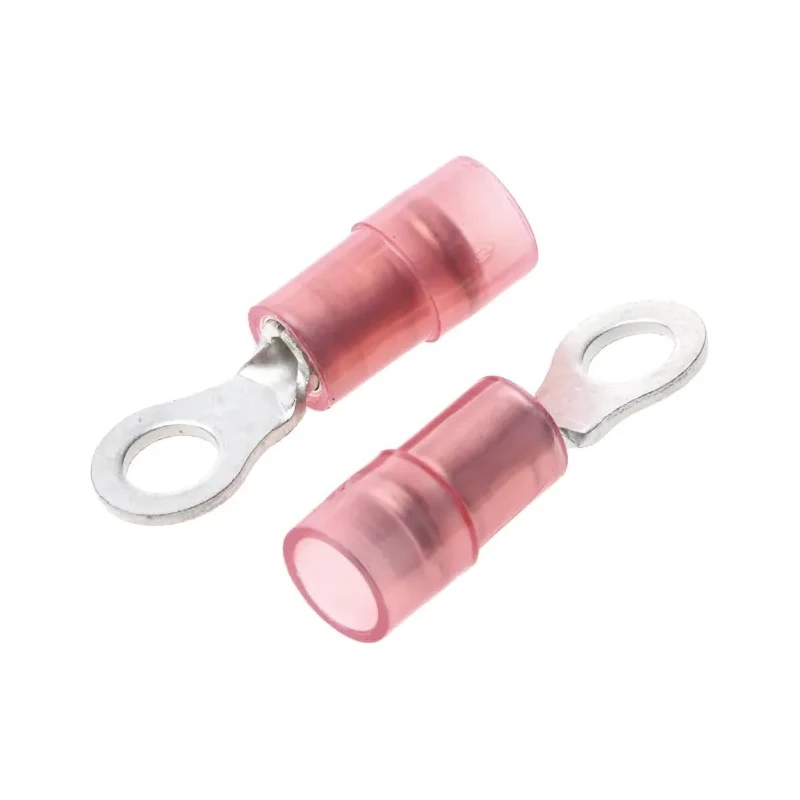

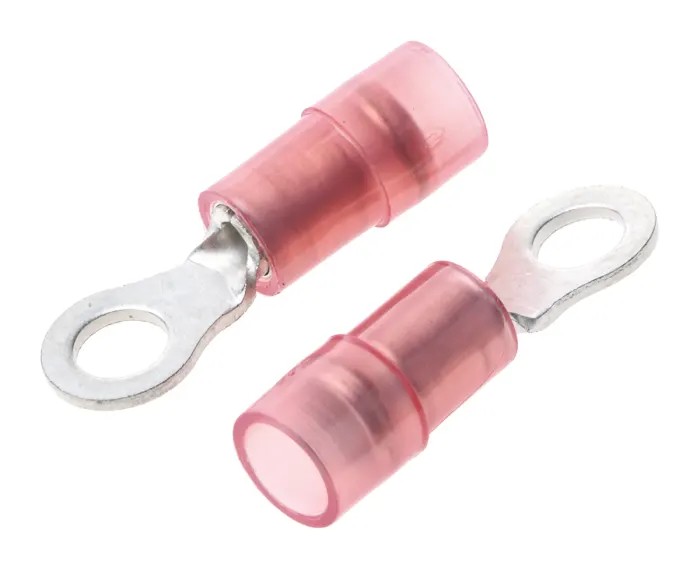

| RS PRO Insulated Ring Terminal, M3.5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
RS PRO 267-3644 insulated ring terminal is a high-quality electrical connector designed to securely attach electrical cables to studs or posts in various electronic applications. It supports wire sizes from 22 AWG to 16 AWG, accommodating cables with a cross-sectional area from 0.5 mm² to 1.5 mm², and is built for use with M3.5 stud sizes.
The ring terminal features a copper contact material that is tin-plated to provide superior electrical conductivity and corrosion resistance, thus enhancing connection reliability over time. The nylon insulation ensures electrical protection, resistance to abrasion, impact, and fatigue, while its red color coding simplifies terminal identification during installation.
The double crimp design includes an internal copper sleeve that reinforces the barrel and secures the wire firmly, making this terminal ideal for environments subject to high vibration or mechanical stress. The terminal performs optimally in temperature ranges from -40°C to 105°C, supporting demanding industrial, automotive, communication equipment, power supply, and domestic appliance wiring.
Constructed of copper with tin plating for excellent conductivity and corrosion resistance. Nylon insulation provides electrical protection and abrasion resistance. Double crimp design with internal copper sleeve for enhanced crimp strength and vibration resistance.
Suitable for high vibration and industrial applications including automotive and power supplies. Color-coded red insulation for quick and easy size identification. Supports wire sizes from 22 AWG to 16 AWG and M3.5 stud size.
Maximum operating temperature of 105°C ensures performance under heat stress.
This RS PRO insulated ring terminal offers consistent and reliable electrical connections in industrial, automotive, and electronic manufacturing applications. It is a durable, high-performance solution designed for longevity and safety in various wiring configurations. For a comprehensive selection of industrial electrical connectors, browse the RS PRO category on EnvMart.
