RF Solutions ZULU Radio Modem Shield for Arduino Compatible Boards Wireless Communication 868MHz ISM Band ZULU-M-ARDUINO

Free Delivery in India | Lowest Global Shipping Charges

RF Solutions ZULU Radio Modem Shield for Arduino Compatible Boards Wireless Communication 868MHz ISM Band ZULU-M-ARDUINO

Name: RF Solutions ZULU Radio Modem Shield for Arduino Compatible Boards Wireless Communication 868MHz ISM Band ZULU-M-ARDUINO
Brand: RF Solutions
SKU: 315375
Price: 20.22 USD
Availability: InStock



Category Modem Brand RF Solutions Condition New

Specifications

Country of Origin	United Kingdom
Range	Up to 2000m @ +20dBm
Brand	RF Solutions
Dimensions	25 x 13 x 3mm (DIP), 25 x 11 x 2mm (SM)
Operating Temperature Range	-40 to +85°C
Model	ZULU-M-ARDUINO
Communication	serial UART with RTS/CTS handshaking
Receiver Sensitivity	-121dBm
For Use With	Arduino
Kit Classification	Shield
Modulation	FSK
Host Data Rate	Up to 38400bps
RF Carrier frequency	868MHz ISM Band with 5 x selectable channels
RF Data rate	Up to 115kbps

Key Features

Operates in the 868MHz ISM band with 5 selectable channels.
Offers a range of up to 2000 meters at +20dBm power output.
Utilizes FSK modulation for reliable data transmission.
Supports serial UART communication with RTS/CTS handshaking.
Operating temperature range from -40 to +85°C enables use in harsh environments.
Compact dimensions support easy integration on Arduino boards.
Includes LED indicators for power and data transmission activity.
Equipped with SMA connector for external antenna connection.

Product Description

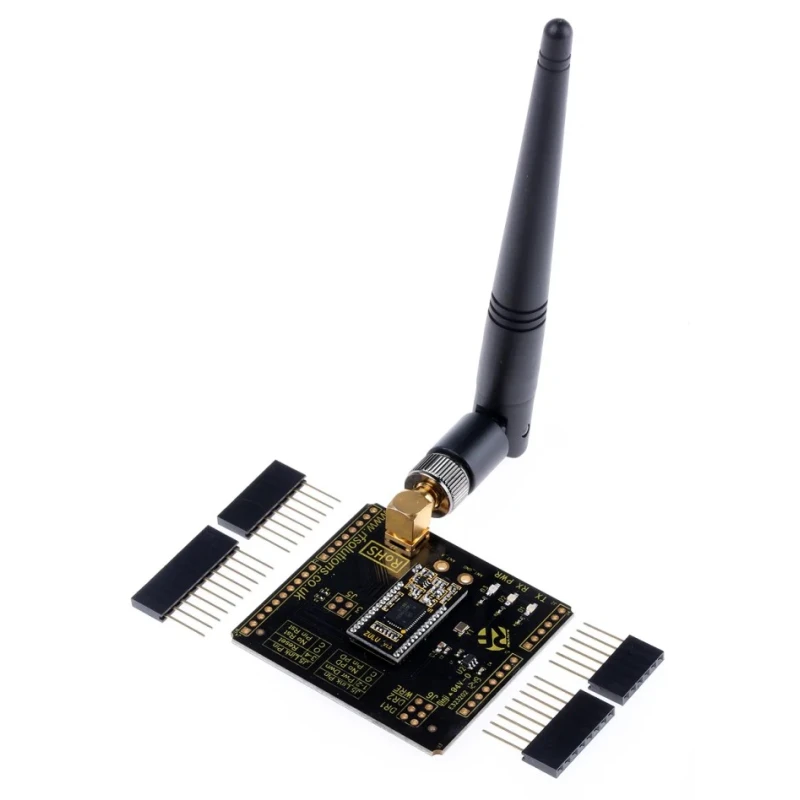

RF Solutions ZULU-M-ARDUINO is an Arduino-compatible radio modem shield designed to enable wireless communication over the 868MHz ISM band. It adds a reliable bi-directional wireless serial data link to Arduino or compatible processor boards, making it suitable for IoT and embedded communication applications.

The ZULU-M868 Modem module features an integrated RF transceiver based on the Si1000 system on chip with an 8051 microcontroller core, 64KB flash memory, and 4352 bytes of RAM. It supports FSK modulation with a data rate of up to 115 kbps and communicates via a serial UART interface with RTS/CTS flow control, supporting host data rates up to 38400 bps.

The shield operates in the 868MHz ISM band with five selectable RF channels and delivers a +20 dBm RF power output, achieving a range of up to 2000 meters. Receiver sensitivity is -121 dBm, ensuring robust wireless links. The shield supports various modes including one-to-many and many-to-one wireless communication configurations.

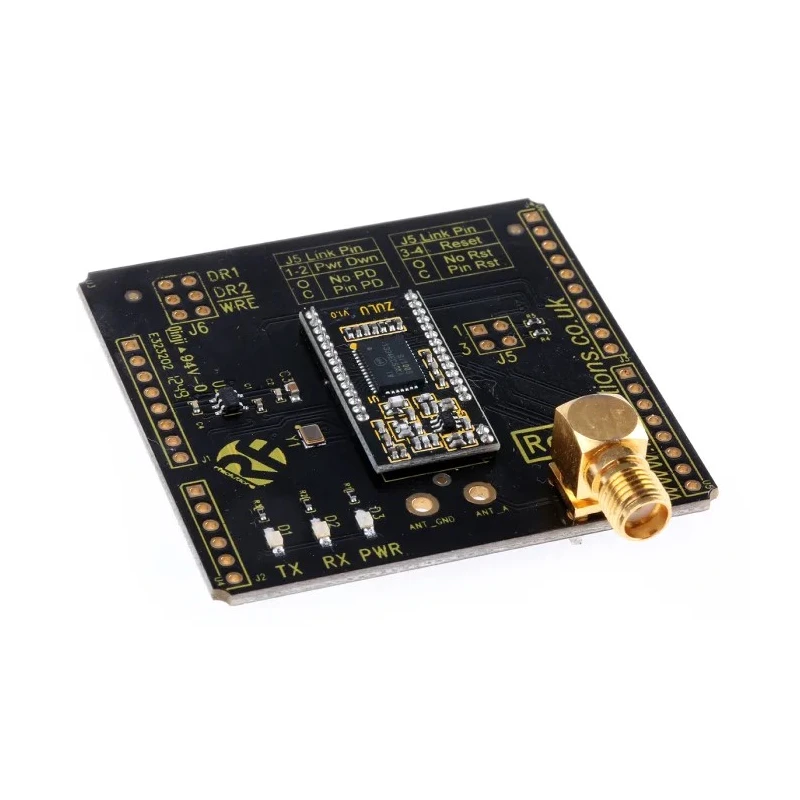

Additional features include LED indicators for power and transmit/receive activity, jumper links for setting host data rate and controlling Arduino's sleep and reset modes, and an SMA connector for antenna connection. The device supports OTA configuration and has a programmable unique system identifier for network management.

With an operating temperature range from -40 to +85 °C and compact dimensions (25 x 13 x 3 mm DIP format), the ZULU-M-ARDUINO shield is well-suited for industrial, laboratory, building automation, and IoT applications requiring dependable wireless serial communication.

Operates on 868 MHz ISM band with 5 selectable channels. Provides up to 2000 m communication range with +20 dBm output power. Employs FSK modulation for data integrity. UART serial communication with RTS/CTS handshaking supported.

Robust receiver sensitivity at -121 dBm. Compact dimensions for easy Arduino integration. LED indicators for power and data transmission status. SMA connector available for antenna attachment. Over the Air (OTA) configurable and programmable unique ID.
