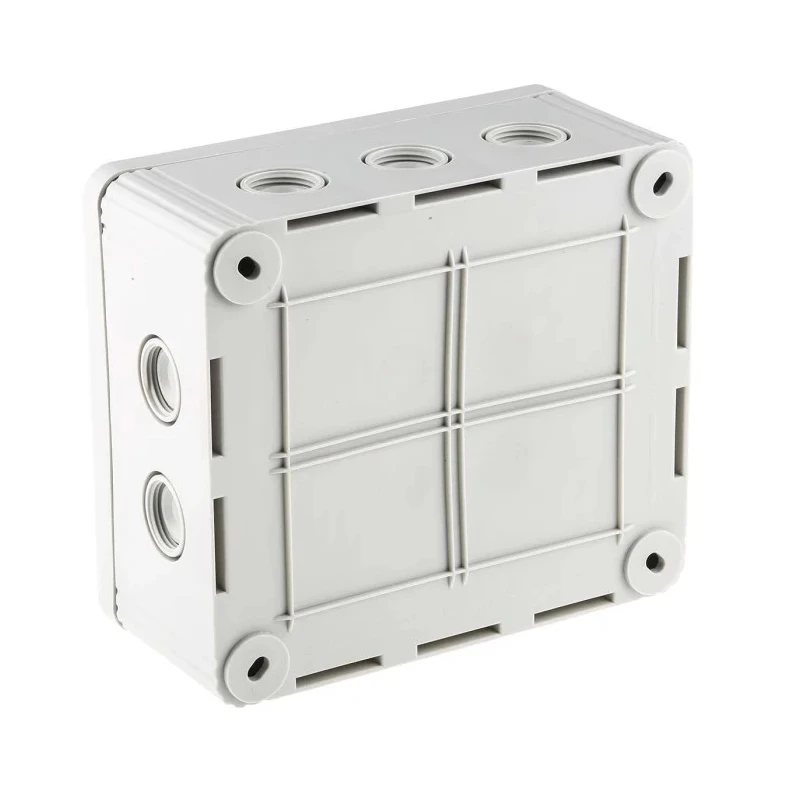

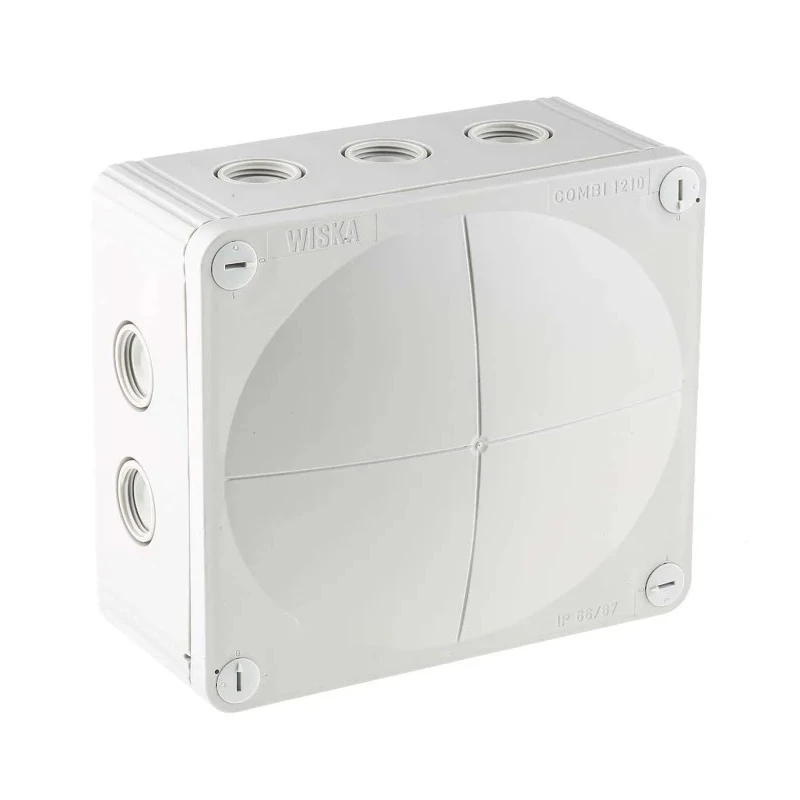

WISKA COMBI Series Grey Polypropylene Junction Box IP66 IP67, 4 Terminals, 160 mm x 140 mm x 81 mm 1210/5/G

WISKA 1210/5/G COMBI Series Grey Polypropylene Junction Box, measuring 160 mm length, 140 mm width, and 81 mm height, features IP66 and IP67 ingress protection ratings, designed for demanding industrial, commercial, and construction electrical wiring applications.

Manufactured from durable, flame-retardant, and halogen-free polypropylene, this enclosure resists vegetable and animal fats, mineral oil, diesel, alcohol, and weak acids. Its unique bellied lid offers a 10% increased internal volume for enhanced cable management.

The box includes an integrated thread system allowing cable glands to be installed directly without locknuts, simplifying installation and reducing assembly time. It provides 10 entries sized M20 with elastic soft membranes on sides and ends, with alternatives for M25 knockouts to accommodate various cable sizes. The base features 4 self-sealing membrane entries suitable for direct mounting on surfaces.

The quick-release plastic lid screws resist rust and maintain secure sealing. The enclosure is weatherproof, UV stable, shatterproof, and impact resistant, making it suitable for indoor and outdoor use where protection from elements is essential. Mounting holes are isolated from the interior to preserve IP ratings after installation.

This junction box supports 4 terminals with a current rating of 57A and conforms to RoHS standards. It is ideal for building wiring junctions such as lighting point additions, circuit extensions, and electrical repairs.

The enclosure body is flame-retardant and halogen-free polypropylene. Provides 10x M20 cable entries with the flexibility of M25 knockouts. Includes 4x M20 entries with self-sealing membranes on the base. Equipped with 4 captive quick-release lid screws and a 5-pole terminal.

IP66 and IP67 rated for comprehensive dust and water protection. Resistant to UV, impact, and weather conditions. Designed for secure and easy installation maintaining IP integrity. Manufactured in Germany ensuring quality and compliance.

Suitable for industrial, commercial, and residential electrical enclosure needs. Explore the comprehensive range of electrical enclosures and Junction Boxes on EnvMart for reliable protection and cable management solutions.
