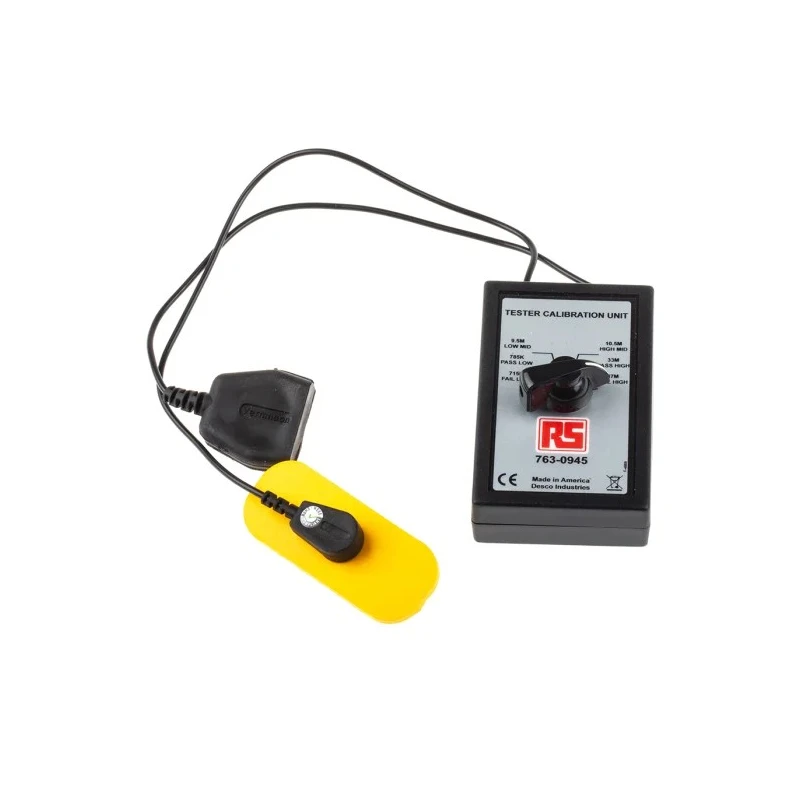

RS PRO Wrist & Foot ESD Tester, Wrist & Foot Test Point, 9V Battery, 715kΩ Max Resistance, 37mΩ Min Resistance 763-0945

RS PRO 763-0945 Wrist & Foot ESD Tester is a professional electrostatic discharge testing instrument designed for use in electronics manufacturing, laboratory, and quality assurance environments. It accurately measures the resistance of wrist straps and footwear to ensure static charge is safely dissipated, vital in electrostatic protected areas (EPA) where stable electrical potential must be maintained.

The unit supports simultaneous or independent wrist and foot testing, eliminating the need for separate devices. It features intuitive light and audio indicators that provide clear, instant feedback using a detailed 6-point scale: Fail Low, Pass Low, Low Mid, High Mid, Pass High and Fail High, helping ensure compliance to your static control protocols.

The tester operates on a standard 9 V battery, ensuring portability and ease of use in various industrial, laboratory, electronics repair, and manufacturing settings. With compact dimensions of 96 mm (length) x 61 mm (width) x 40 mm (height) and a weight of about 100 g, it is ergonomically designed for easy handling and transport.

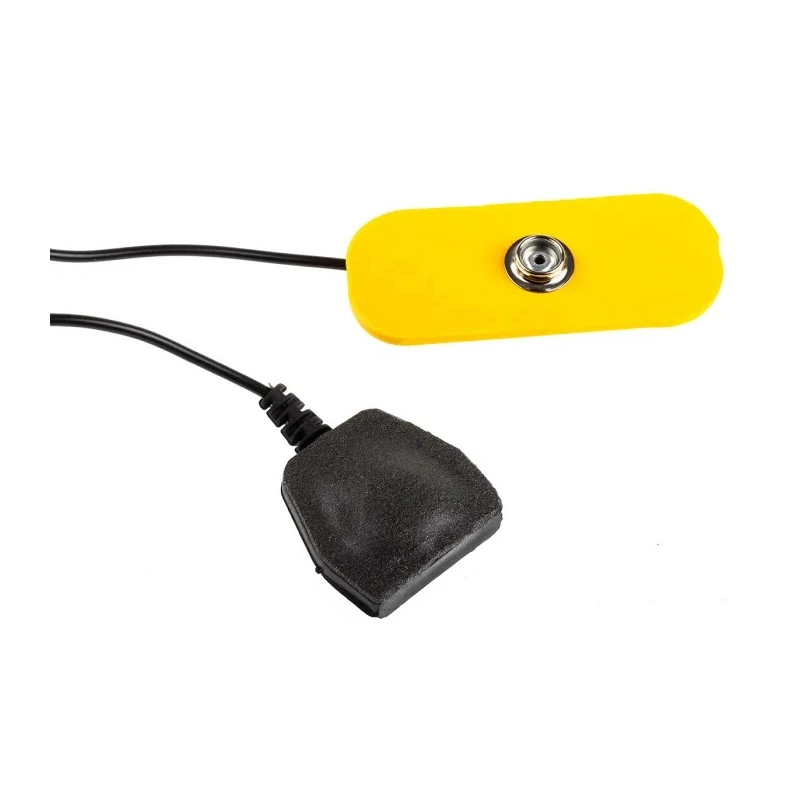

This tester supports measuring minimum surface resistivity of 37 milliohms and maximum surface resistivity up to 715 kiloohms, covering a broad resistance range to accommodate diverse ESD footwear and wrist strap standards. It includes wrist and heel test points engineered for reliability and precise measurement.

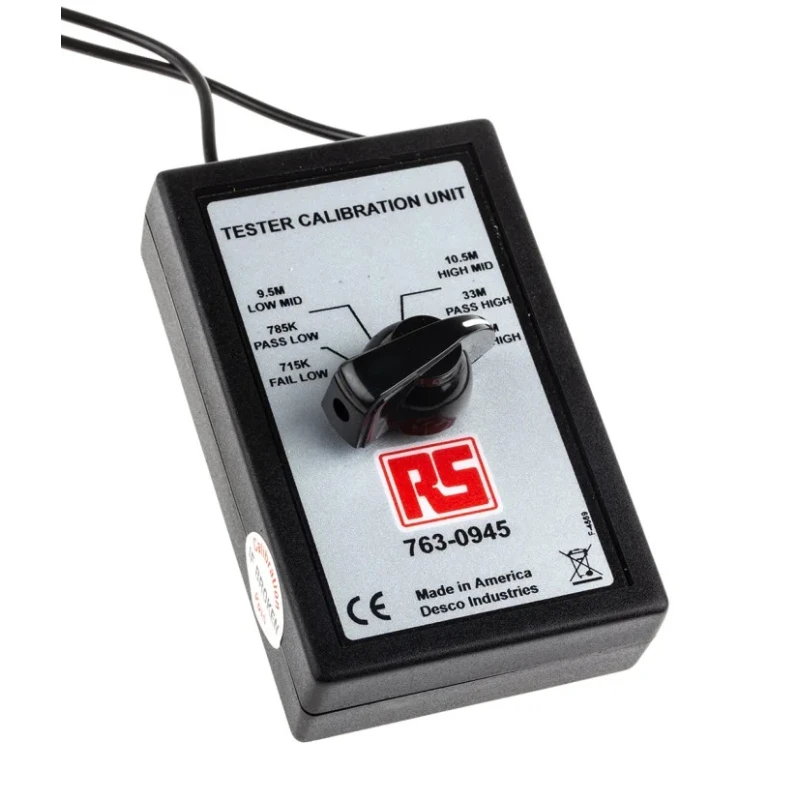

Unlike units requiring professional calibration, this tester allows users to verify functional accuracy themselves, reducing downtime and calibration costs. It is an essential device for electronics workshops, quality labs, manufacturing lines, and maintenance operations to prevent ESD damage to sensitive components.

Tests wrist straps and footwear for static charge accuracy and compliance. Measures resistance range from 37 mΩ minimum to 715 kΩ maximum. Compact dimensions of 96 x 61 x 40 mm for comfortable usage. Light and audio indicators with a 6-point scale for clear pass/fail status.

Operates on a standard 9 V battery for portability. Lightweight design at approximately 100 g for ergonomic handling. Enables quick on-site calibration verification by the user.

This RS PRO Wrist & Foot ESD Tester 763-0945 is well suited for use in industrial electronics manufacturing, repair shops, laboratory testing, and other environments requiring effective ESD control and safety testing. Ensure your EPA compliance and protect sensitive electronic components by monitoring static discharge accurately and reliably.
