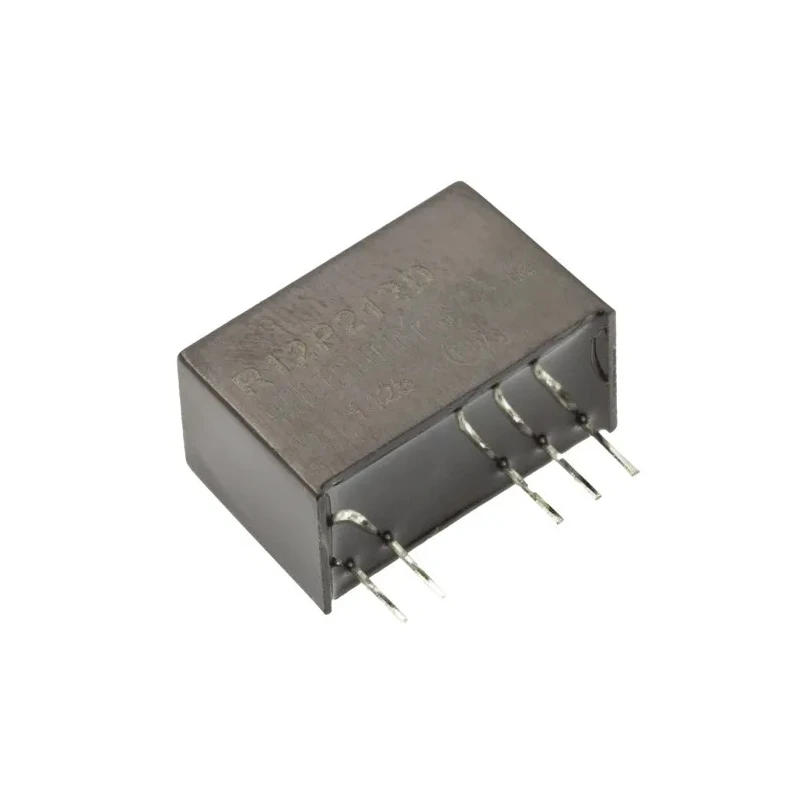

Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter, 12V dc Output, 85 mA Output R12P212D

Recom R12P212D DC-DC Converter is a 2 watt SIP7 package isolated power module offering unregulated dual outputs of 12 V DC with an output current of 85 mA. This converter is designed for use in demanding industrial, medical, and electronic systems requiring reliable power isolation up to 2.6 kV AC.

The product supports a wide operating temperature range from -40°C minimum to 90°C maximum, making it suitable for harsh environments. With an efficiency of 87%, it optimizes power usage in sensitive electronics.

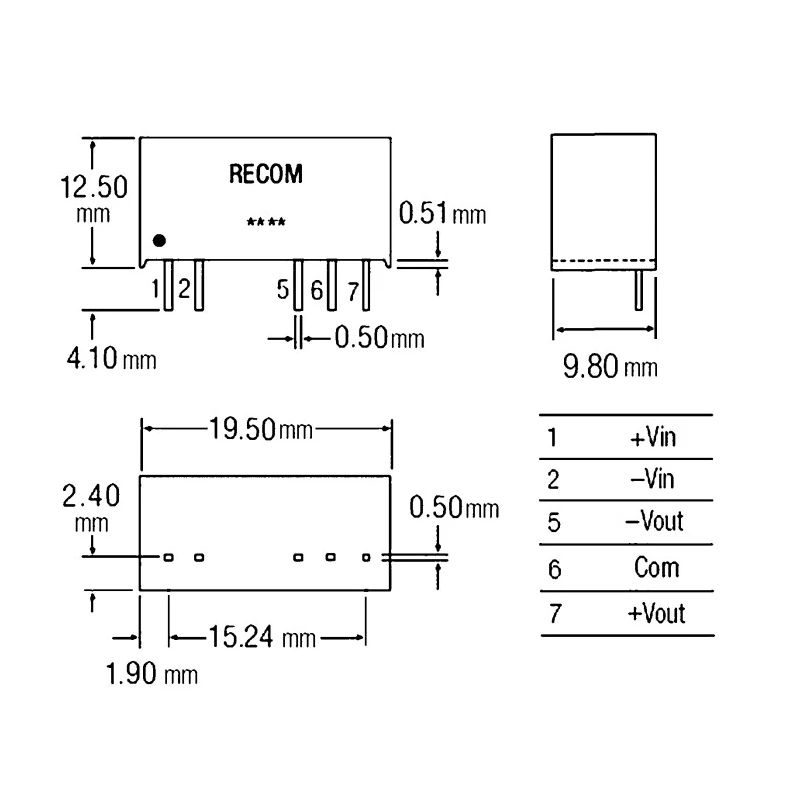

The converter features a compact form factor with length 19.5 mm and depth 12.5 mm, facilitating space-saving on printed circuit boards. It employs a SIP7 through hole mount type providing ease of installation in various applications.

This unit is UL/CSA and EN safety certified and is approved for medical applications, ensuring compliance with strict safety standards. It is also suitable for IGBT applications. Typical applications include industrial automation, medical equipment, instrumentation, and other electronic designs where isolated dual output power conversion is necessary.

Offers 2 W maximum output power with high efficiency of 87%. Features 2.6 kV AC isolation voltage ensuring safe operation. Designed for medical and industrial applications with UL/CSA and EN safety certifications. Operates in temperature range from -40°C to 90°C for reliable performance.

Compact dimensions with 19.5 mm length and 12.5 mm depth for PCB space savings. Contains 7 pins in a SIP package suitable for through hole mounting. Features a mean time between failures (MTBF) of 168000 hours for long-term reliability.

Approved for medical use and suitable for IGBT applications. Explore EnvMart's wide selection of DC-DC Converters for varied industrial and electronic applications.
