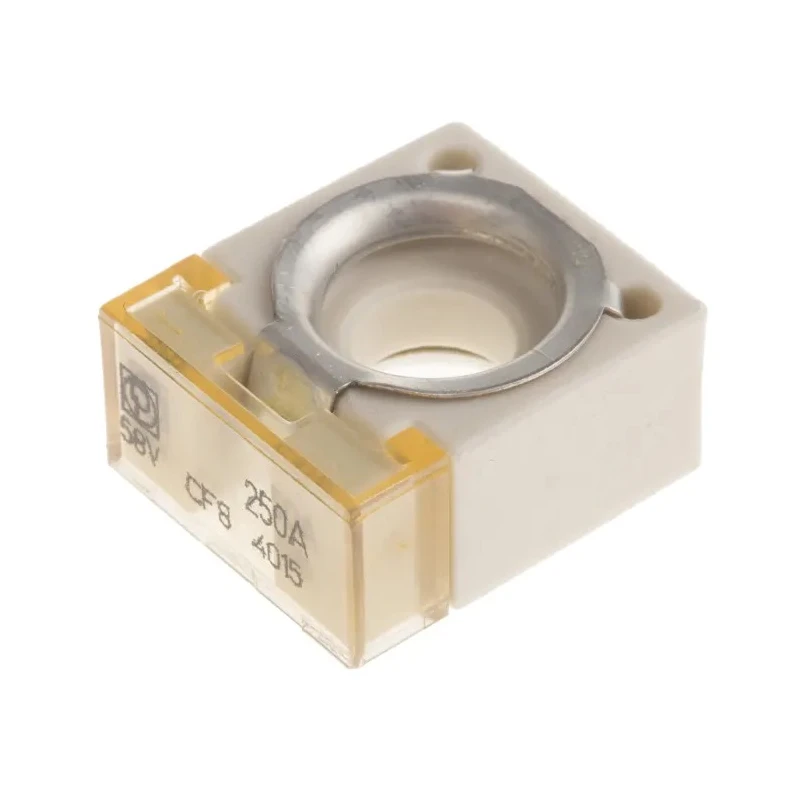

Littelfuse 250A Grey, White Car Fuse 58V DC Ceramic Body 23.5mm x 20mm x 11.5mm CF8 Series 155.0892.6251

Littelfuse 155.0892.6251 car fuse is engineered for reliable protection of automotive electrical systems operating at 58 volts DC with a 250 ampere current rating. Featuring a robust ceramic body, this fuse model provides excellent endurance against heat and electrical stress.

The fuse dimensions are 23.5mm in length, 20mm in height, and 11.5mm in width, offering a compact profile that fits securely on battery terminals. It belongs to the CF8 series of bolt-down fuses, allowing direct mounting on battery poles with a clamp, which removes the need for separate fuse holders and enhances overall safety in high current applications.

With a breaking capacity of 2000 amperes, this fuse can safely interrupt large fault currents encountered in automotive circuits. It meets industry standards including DIN 72581-5, ISO 8820-6, UL 248, and cULus certification, ensuring compliance with stringent quality and safety requirements.

The product is ideal for industrial, laboratory, automotive, and commercial electrical protection applications, particularly where direct battery fuse mounting is preferred. Optional accessories such as the battery mounting clamp bracket and insulating nut are sold separately to assist installations that lack M8 bolt terminals.

Installation benefits include a compact and secure fuse design that improves electrical safety by eliminating fuse holders and minimizing connection points. This fuse is recognized for high performance in critical automotive and industrial power protection scenarios.

The fuse body is ceramic for high durability and heat resistance. Rated current of 250 amperes suitable for main battery protection. Voltage rating of 58 volts DC for automotive electrical systems. Compact dimensions: 23.5mm length, 20mm height, and 11.5mm width.

Breaking capacity of 2000 amperes ensures safe interruption of fault currents. Complies with DIN 72581-5, ISO 8820-6, UL 248, and cULus standards. CF8 series bolt-down fuse designed for direct mounting on battery poles. Eliminates the need for additional fuse holders, enhancing installation safety.

Optional battery mounting clamp bracket and insulating nut are available for batteries without M8 bolt terminals. Explore Littelfuse Car Fuses and related automotive electrical protection products on EnvMart for dependable circuit safeguarding solutions.
